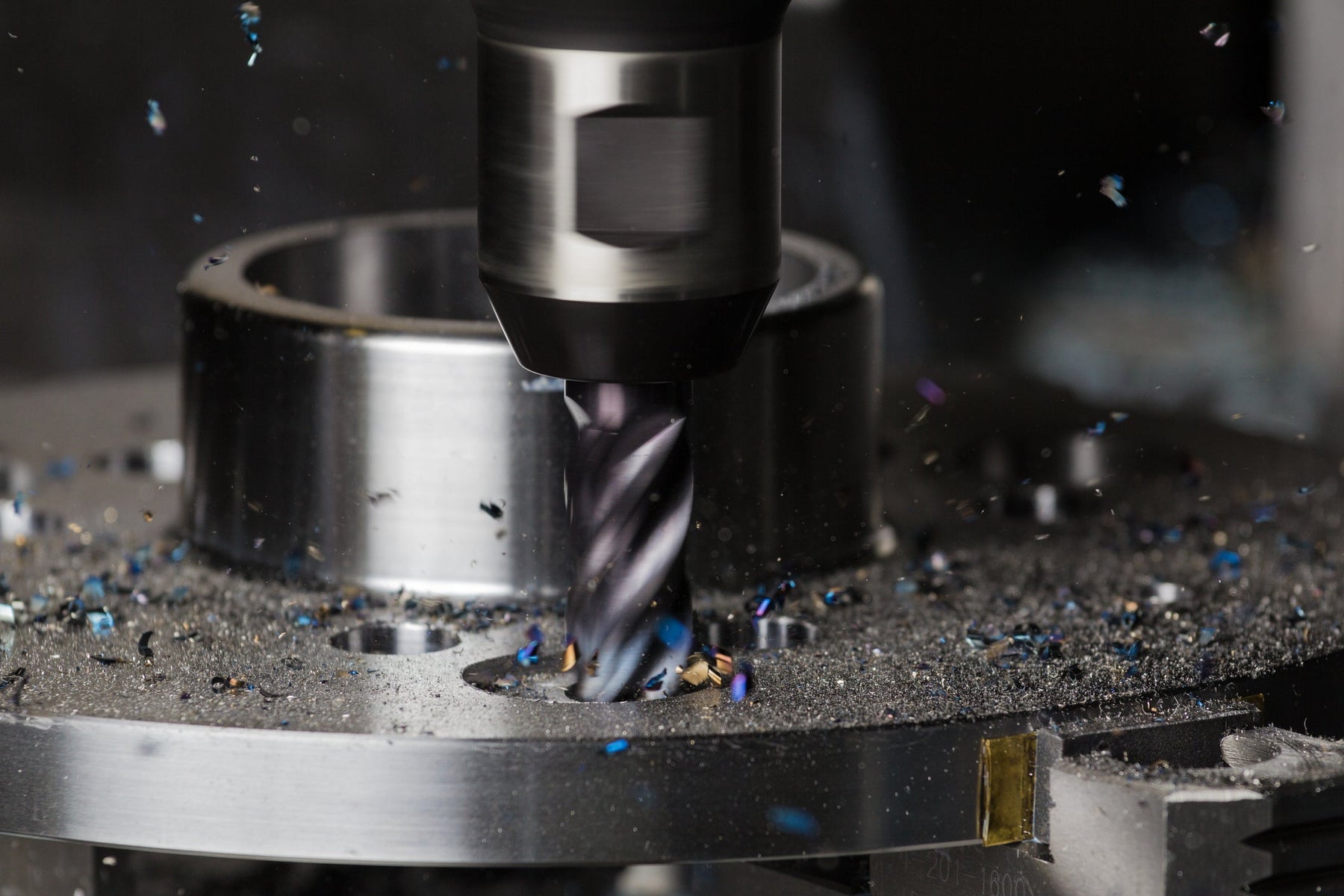

Machining Titanium

Titanium is one of the most demanding materials to machine, yet it remains essential across aerospace, medical, defence, motorsport and high-performance engineering sectors. Its exceptional strength-to-weight ratio and outstanding corrosion resistance make it invaluable for critical applications—but these same properties create significant machining challenges. Understanding titanium's behaviour, selecting the right tooling and applying proven techniques will help you achieve better results, reduce tool wear and improve productivity in your workshop.

What Is Titanium?

Titanium is a transition metal prized for its combination of strength, lightweight properties and corrosion resistance. Unlike aluminium or steel, titanium maintains its strength at elevated temperatures and resists oxidation in harsh environments. This makes it the material of choice for jet engines, surgical implants, chemical processing equipment and racing components.

Key material characteristics:

• Strength-to-weight ratio approximately 50% higher than steel
• Melting point around 1,668°C—significantly higher than aluminium or most steels
• Low thermal conductivity (heat doesn't dissipate easily from the cutting zone)
• Tendency to work-harden rapidly during machining
• Excellent corrosion resistance across a wide temperature range

Common titanium grades include:

Commercially Pure Titanium (CP Titanium, Grades 1–4): Lower strength but excellent corrosion resistance and formability. Used in chemical processing, marine applications and medical implants.

Ti-6Al-4V (Grade 5): The most widely machined titanium alloy. Contains 6% aluminium and 4% vanadium. Offers superior strength and heat resistance. Standard in aerospace and defence.

Grade 2 Titanium: A balance between strength and machinability. Common in industrial applications where cost and workability are considerations.

Grade	Tensile Strength	Machinability	Common Applications
CP Titanium (Grade 2)	345 MPa	Good	Chemical processing, marine, medical
Ti-6Al-4V (Grade 5)	1,160 MPa	Moderate–Difficult	Aerospace, defence, motorsport, medical
Grade 5 (Annealed)	1,100 MPa	Moderate	Aerospace components, engine parts

Why Is Titanium Difficult to Machine?

Titanium's exceptional material properties—the same ones that make it valuable in service—create serious challenges at the cutting edge. Understanding these challenges is the first step toward solving them.

Low thermal conductivity: Titanium conducts heat poorly. When you machine steel or aluminium, heat generated at the cutting edge dissipates into the workpiece and tool. With titanium, heat concentrates intensely at the tool tip. This extreme localised temperature can exceed 1,000°C, softening the tool material and accelerating wear.

Work hardening: Titanium hardens rapidly as it's deformed. If your feed rate is too low or your tool engagement is inconsistent, the material work-hardens ahead of the cutting edge rather than being cleanly severed. This increases cutting forces, generates more heat and causes premature tool failure.

High cutting forces: Titanium's strength means machining forces are substantial. These forces can cause tool deflection, chatter, vibration and poor surface finish—especially on less rigid machines or with longer tool overhangs.

Tool wear and built-up edge: The combination of heat and work hardening causes rapid flank wear and crater wear. A built-up edge (BUE)—where work-hardened material adheres to the tool—can form suddenly, degrading surface finish and accelerating tool failure.

Common Problems When Machining Titanium

Premature tool failure: Tools wear out far faster than expected. This is usually caused by excessive heat, inadequate coolant delivery or feeds and speeds that are too aggressive for your machine's rigidity.

Excessive heat generation: The cutting zone becomes extremely hot. Without proper coolant delivery and heat management, the tool softens and fails rapidly.

Built-up edge (BUE): Work-hardened material sticks to the tool, creating a false edge that degrades surface finish and increases cutting forces. This typically occurs when feed rates are too low or tool engagement is inconsistent.

Poor surface finish: Chatter, vibration, tool deflection and BUE all contribute to rough, inconsistent surfaces. This is particularly problematic in aerospace and medical applications where surface finish is critical.

Chatter and vibration: High cutting forces combined with machine or setup compliance cause vibration. This damages the tool, worsens surface finish and can damage the workpiece.

Inconsistent tool life: Tool life varies dramatically between jobs. This usually indicates that feeds, speeds or coolant delivery are not optimised for your specific machine and setup.

Best Cutting Tools for Titanium

Selecting the right tool is fundamental to successful titanium machining. High-speed steel (HSS) tools are generally unsuitable—they cannot withstand the heat generated. Carbide and ceramic tools are the industry standard.

Solid carbide end mills: Excellent for milling operations. Carbide's hardness and heat resistance make it ideal for titanium. Variable helix designs reduce chatter and vibration. Look for tools specifically designed for titanium with appropriate flute geometry and coatings.

Solid carbide drills: Essential for drilling titanium. Specialised titanium drills feature optimised point geometry, flute design and chip evacuation. Through-coolant capability is highly beneficial.

High-performance indexable inserts: For turning and facing operations. Indexable tooling allows rapid tool changes and offers excellent value. Select inserts with titanium-specific geometries and coatings.

Variable helix tooling: The varying flute spacing reduces vibration and chatter, improving surface finish and tool life. Highly recommended for titanium.

High-feed cutters: Specialised tools designed for aggressive feeds with shallow radial engagement. These can improve productivity when used correctly.

Coating recommendations:

• AlTiN (Aluminium Titanium Nitride): Excellent heat resistance and hardness. Ideal for high-speed titanium machining.
• TiAlN (Titanium Aluminium Nitride): Superior oxidation resistance. Performs well at elevated temperatures.
• Advanced PVD coatings: Multi-layer coatings offer enhanced performance. Check manufacturer recommendations for titanium-specific variants.

Tool Type	Advantages	Limitations	Best Applications
Solid carbide end mills	High rigidity, excellent finish, long tool life	Higher cost, requires rigid setup	Milling, contouring, finishing
Solid carbide drills	Optimised geometry, good chip evacuation	Brittle—requires careful handling	Drilling holes, through-coolant preferred
Indexable inserts	Quick tool changes, cost-effective, versatile	Requires rigid toolholder, less suitable for interrupted cuts	Turning, facing, production runs
Variable helix tools	Reduced chatter, better finish, improved rigidity	Slightly higher cost	Milling, finishing, vibration-prone setups

Drilling Titanium

Drilling titanium presents unique challenges. The confined cutting zone makes heat management difficult, and poor chip evacuation can cause tool breakage.

Drill geometry considerations: Use drills specifically designed for titanium. These typically feature:

• Optimised point angle (usually 130–140°) to reduce cutting forces
• Flute geometry that promotes chip evacuation
• Adequate flute clearance to prevent rubbing
• Through-coolant capability where possible

Through-coolant tooling: High-pressure coolant delivered through the drill is highly effective. It cools the cutting edge directly and helps evacuate chips. If your machine supports through-coolant, use it.

Feed rate importance: Feed rate is critical. Too slow, and the tool rubs, work-hardens the material and generates excessive heat. Too fast, and you risk tool breakage. Start conservatively and increase gradually while monitoring tool condition and chip formation.

Chip evacuation: Long, stringy chips are a sign of poor evacuation. Peck drilling—withdrawing the drill periodically to clear chips—helps prevent tool breakage. For deep holes, peck more frequently.

Heat management: Maintain consistent coolant flow. Flood coolant is acceptable, but through-coolant is superior. Never allow the tool to run dry.

Practical troubleshooting:

• Tool breakage: Reduce feed rate, increase peck frequency, ensure adequate coolant.
• Poor hole finish: Check drill sharpness, increase coolant pressure, reduce feed rate slightly.
• Excessive heat: Verify coolant delivery, reduce cutting speed slightly, increase feed rate to maintain chip thickness.

Milling Titanium

Milling titanium requires careful attention to radial engagement, toolpath strategy and heat management.

Radial engagement strategies: Radial engagement (the width of material the tool cuts) significantly affects tool life. Shallow radial engagement (0.5–2 mm) reduces cutting forces and heat. Deeper engagement increases productivity but demands greater machine rigidity and heat management.

Trochoidal milling: This advanced toolpath strategy uses shallow radial engagement with optimised tool motion. The tool moves in a circular pattern, maintaining consistent chip load and reducing heat concentration. Trochoidal milling extends tool life dramatically and is highly recommended for titanium.

Dynamic toolpaths: Modern CAM software can generate toolpaths that maintain constant chip load and optimise tool engagement. These reduce vibration and improve tool life compared to conventional linear feeds.

Chip thinning: When radial engagement is very shallow, chip thickness decreases. Maintain adequate feed per tooth to ensure the tool cuts rather than rubs. Consult tool manufacturer data for minimum chip thickness.

Climb milling: Climb milling (tool rotation direction opposite to feed direction) can improve surface finish and reduce heat in some cases, but requires a machine with minimal backlash. Conventional milling is safer on older or less rigid machines.

Practical CNC examples:

• For a 10 mm carbide end mill in Ti-6Al-4V: start with 80–120 m/min surface speed, 0.05–0.10 mm/tooth feed, and 2–3 mm radial engagement.
• Use trochoidal milling for cavities or deep pockets to extend tool life.
• Maintain consistent coolant flow throughout the operation.

Turning Titanium

Turning operations benefit from rigid setups, appropriate insert selection and careful heat control.

Insert selection: Choose inserts with titanium-specific geometries. Negative rake angles provide strength and heat resistance. Positive rake angles reduce cutting forces but require greater insert toughness. For production work, negative rake is typically preferred.

Tool rigidity: Minimise tool overhang. Use rigid toolholders and ensure the workpiece is held securely. Vibration during turning causes poor finish and rapid tool wear.

Surface finish considerations: Consistent cutting conditions produce consistent surface finish. Maintain stable spindle speed, feed rate and depth of cut. Avoid interrupted cuts where possible.

Heat control: Monitor tool temperature. If the insert becomes discoloured (blue or purple), heat is excessive. Reduce cutting speed or increase feed rate to maintain chip thickness while reducing heat.

Productivity optimisation: Once you establish stable parameters, production turning can be efficient. Indexable inserts allow rapid tool changes, minimising downtime. Plan tool changes before insert wear becomes critical.

Recommended Speeds and Feeds for Titanium

These are starting points. Actual parameters depend on machine rigidity, tool condition, coolant delivery and workpiece geometry. Always consult your tool manufacturer's recommendations and adjust based on results.

Operation	Tool Type	Surface Speed (m/min)	Feed (mm/tooth or mm/rev)
Drilling	Carbide drill	60–100	0.05–0.15 mm/rev
Milling (roughing)	Carbide end mill	80–120	0.05–0.10 mm/tooth
Milling (finishing)	Carbide end mill	100–150	0.03–0.07 mm/tooth
Turning (roughing)	Carbide insert	80–120	0.15–0.30 mm/rev
Turning (finishing)	Carbide insert	100–150	0.08–0.15 mm/rev

Important: These are conservative starting points. Increase speeds and feeds gradually while monitoring tool wear, surface finish and heat generation. Machine rigidity, tool condition and coolant delivery all influence optimal parameters.

Coolant and Heat Management

Coolant is not optional when machining titanium—it is essential. The right coolant delivery strategy can double or triple tool life.

High-pressure coolant systems: Pressurised coolant (20–70 bar) delivers fluid directly to the cutting edge with force. This cools the tool effectively and helps evacuate chips. High-pressure systems are ideal for titanium and are standard in modern production shops.

Through-tool coolant: Coolant delivered through the tool (via the spindle) is highly effective for drilling and some milling operations. It reaches the cutting edge directly and provides excellent chip evacuation.

Flood coolant: Traditional flood cooling (coolant sprayed onto the workpiece) is acceptable but less effective than pressurised delivery. Ensure adequate flow and coverage.

Heat control strategies:

• Maintain consistent coolant flow throughout the operation.
• Never allow the tool to run dry, even briefly.
• Use coolants specifically formulated for titanium (typically sulphurised or chlorinated types).
• Monitor coolant condition and replace regularly to maintain effectiveness.
• Ensure coolant reaches the cutting edge, not just the workpiece surface.

Why coolant delivery is critical: Titanium's low thermal conductivity means heat concentrates at the tool tip. Without effective coolant, the tool softens rapidly and fails. Proper coolant delivery is the single most important factor in extending tool life.

Heat Concentration During Titanium Machining

When machining titanium, heat builds up intensely at the tool-workpiece interface. Unlike steel or aluminium, titanium conducts heat poorly, so the cutting edge experiences extreme temperatures (often exceeding 1,000°C). This is why:

• The tool tip becomes the hottest zone
• Heat doesn't dissipate into the workpiece effectively
• Coolant must reach the cutting edge directly
• Tool coatings must resist oxidation at high temperature
• Cutting speeds must be conservative compared to steel

How to Extend Tool Life When Machining Titanium

Tool life is directly linked to profitability. Extending tool life reduces downtime, material waste and overall machining cost.

Maintain consistent tool engagement: Avoid sudden changes in cutting conditions. Consistent feed rate, spindle speed and depth of cut reduce thermal shock and extend tool life.

Avoid tool rubbing: Rubbing (tool moving through material without cutting) generates heat without removing material. Ensure adequate feed rate and avoid running tools too slowly.

Use rigid setups: Minimise tool overhang, secure workpieces firmly and use rigid toolholders. Vibration accelerates tool wear and degrades surface finish.

Optimise toolpaths: Use trochoidal milling, dynamic toolpaths and shallow radial engagement to reduce heat and cutting forces. Modern CAM software can generate these automatically.

Use high-performance coatings: AlTiN and TiAlN coatings resist oxidation and heat better than uncoated carbide. The cost premium is justified by extended tool life.

Control heat effectively: Proper coolant delivery is non-negotiable. High-pressure or through-tool coolant is far superior to flood cooling alone.

7 Ways to Increase Tool Life When Machining Titanium

1. Deliver coolant directly to the cutting edge – High-pressure or through-tool systems are essential

2. Maintain consistent feed rate – Avoid sudden changes that cause thermal shock

3. Use shallow radial engagement – Reduces cutting forces and heat concentration

4. Select titanium-specific tooling – Geometry and coatings matter significantly

5. Minimise tool overhang – Rigid setups reduce vibration and tool deflection

6. Employ advanced toolpaths – Trochoidal milling and dynamic feeds optimise chip load

7. Monitor and adjust parameters – Watch for discolouration, chatter or poor finish and adjust immediately

Carbide vs Ceramic Tooling for Titanium

Both carbide and ceramic tools can machine titanium, but they have different strengths and limitations.

Property	Carbide	Ceramic
Tool life	Good to excellent	Excellent at high speeds
Cutting speed capability	80–150 m/min (typical)	150–300+ m/min
Surface finish	Excellent	Good to excellent
Cost	Moderate	Higher
Toughness	Good—tolerates interrupted cuts	Lower—brittle, requires rigid setup
Productivity	Good for general work	Excellent for high-speed production
Ideal applications	General milling, drilling, turning; job shops; varied workpieces	High-speed production; rigid machines; consistent workpieces

Carbide is the standard choice for most titanium machining. It offers excellent tool life, good surface finish and reasonable cost. Ceramic tools excel at very high cutting speeds but require rigid machines and consistent conditions. For most workshops, carbide with appropriate coatings is the best balance.

Titanium vs Stainless Steel Machining

Both titanium and stainless steel are challenging to machine, but they present different problems.

Factor	Titanium	Stainless Steel
Machinability	Difficult—work hardens rapidly	Moderate—work hardens but less severely
Heat generation	Extreme—poor thermal conductivity	Moderate—better thermal conductivity than titanium
Tool wear mechanism	Thermal shock, crater wear, oxidation	Built-up edge, flank wear, work hardening
Recommended cutting speed	80–150 m/min (conservative)	60–120 m/min (varies by grade)
Productivity	Lower—requires careful parameter control	Moderate—more forgiving than titanium
Coolant criticality	Essential—high-pressure delivery required	Important but flood cooling often sufficient

Titanium is generally considered more challenging than stainless steel. The primary difference is heat generation and thermal conductivity. Titanium's poor heat dissipation creates extreme temperatures at the cutting edge, requiring more conservative speeds and more aggressive coolant delivery. Stainless steel, while difficult, is more forgiving in terms of heat management.

Frequently Asked Questions

Why is titanium difficult to machine?

Titanium's low thermal conductivity concentrates heat intensely at the cutting edge, often exceeding 1,000°C. This extreme temperature softens the tool and accelerates wear. Additionally, titanium work-hardens rapidly, increasing cutting forces and heat generation. The combination makes titanium one of the most challenging materials to machine.

What tooling is best for titanium?

Solid carbide tools with titanium-specific geometries and high-performance coatings (AlTiN or TiAlN) are the industry standard. Variable helix designs reduce chatter. For drilling, through-coolant capability is highly beneficial. Avoid HSS tools—they cannot withstand the heat.

Can HSS tools machine titanium?

Theoretically yes, but practically no. High-speed steel tools lack the heat resistance required. They will dull rapidly and produce poor results. Carbide is the minimum acceptable standard for titanium machining.

What coolant should be used for titanium?

Use coolants specifically formulated for titanium, typically sulphurised or chlorinated types. Delivery method is equally important—high-pressure or through-tool coolant is far superior to flood cooling alone. Never allow the tool to run dry.

What is the most commonly machined titanium grade?

Ti-6Al-4V (Grade 5) is by far the most widely machined titanium alloy. Its combination of strength, heat resistance and availability makes it the standard for aerospace, defence, medical and motorsport applications. Commercially pure titanium (Grade 2) is also common in chemical processing and marine applications.

How can I improve surface finish when machining titanium?

Consistent cutting conditions, rigid setups, appropriate tool geometry and effective coolant delivery all contribute to good surface finish. Avoid chatter by minimising tool overhang and using variable helix tools. Monitor tool wear closely—a dull tool produces poor finish. Consider finishing passes with slightly higher speeds and lower feeds.

What is trochoidal milling and why is it useful for titanium?

Trochoidal milling uses shallow radial engagement with optimised tool motion (typically circular). This maintains consistent chip load, reduces heat concentration and extends tool life dramatically. It is highly recommended for titanium, especially in cavities and deep pockets.

Machining titanium successfully requires knowledge, the right tools and disciplined technique. By understanding titanium's behaviour, selecting appropriate tooling, optimising feeds and speeds, and maintaining effective coolant delivery, you can achieve excellent results and extend tool life significantly. Start conservatively, monitor results carefully and adjust parameters based on what you observe. With experience, titanium machining becomes manageable and even rewarding.
