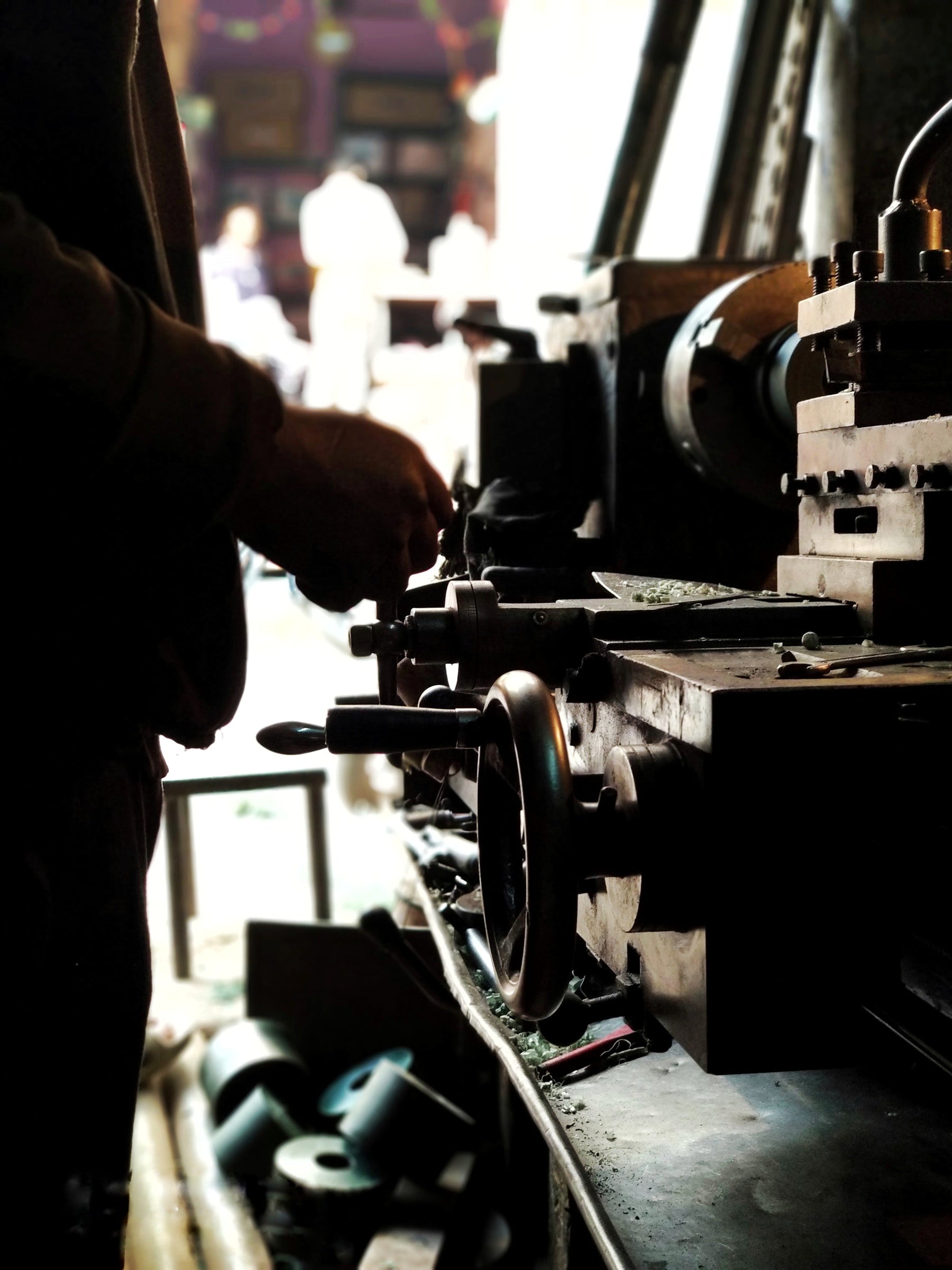

Machining Cast Iron

Cast iron remains one of the most widely machined engineering materials across the world. From machine bases and pump housings to engine blocks, brake components and industrial machinery, cast iron's combination of strength, wear resistance and machinability makes it indispensable in manufacturing. Yet machining cast iron successfully requires understanding its unique characteristics, selecting appropriate tooling and applying the right cutting parameters. This guide covers everything you need to know about machining cast iron efficiently and productively.

What Is Cast Iron?

Cast iron is an iron-carbon alloy containing between 2.1% and 4% carbon by weight, along with silicon, manganese, phosphorus and sulphur. The key difference between cast iron and steel lies in its graphite structure. In cast iron, carbon exists largely as graphite particles dispersed throughout the iron matrix. This graphite structure fundamentally changes how the material machines, breaks chips and wears tools.

The type of cast iron you're machining affects tool selection and cutting parameters significantly. Here's how the three most common types compare:

Cast Iron Type	Strength	Machinability	Wear Resistance	Common Applications
Grey Cast Iron	Moderate (200–350 HB)	Excellent	Very good	Engine blocks, pump housings, machine bases
Ductile (Nodular) Iron	High (250–450 HB)	Good	Excellent	Crankshafts, gears, structural components
Malleable Iron	Moderate–high (170–320 HB)	Very good	Good	Automotive fittings, pipe connections, brackets

Why Is Cast Iron Generally Easy to Machine?

Cast iron has earned a reputation as one of the easiest materials to machine, and there are solid reasons for this. The graphite particles embedded in the iron matrix act as a natural lubricant, reducing friction between the tool and workpiece. This graphite lubrication minimises built-up edge formation—a common problem when machining steel—and produces more consistent chip breaking characteristics.

The result is stable, predictable machining performance. Cutting forces remain relatively low compared to steel of equivalent hardness, tool wear is often more gradual and uniform, and surface finish is typically good even at moderate speeds. For workshop operators, this means fewer tool changes, less downtime and more consistent part quality.

Common Challenges When Machining Cast Iron

Despite its reputation for machinability, cast iron presents specific challenges that require attention.

Abrasive wear: The graphite and hard iron carbides in cast iron are abrasive. Over time, this abrasive action wears cutting tools faster than when machining mild steel. Selecting the correct tool grade and coating is essential to manage this wear.

Dust generation: Cast iron produces fine dust rather than continuous chips, particularly when drilling or milling. This dust is abrasive and can contaminate machine ways, spindle bearings and other precision surfaces if not managed properly. Effective chip evacuation and dust collection are critical.

Surface finish and hard spots: Casting defects, hard spots and inclusions can appear unpredictably in cast iron. These can cause sudden tool breakage or poor surface finish. Inspecting castings before machining and adjusting feeds and speeds when hard spots are encountered helps prevent tool damage.

Machine contamination: Cast iron dust is persistent. Without proper dust management, it accumulates in machine ways and spindles, accelerating wear and reducing accuracy. Regular cleaning and good chip evacuation systems are essential for long-term machine health.

Best Cutting Tools for Cast Iron

Selecting the right cutting tool is fundamental to successful cast iron machining. Here's what works best:

Solid carbide tooling: Solid carbide drills, end mills and other tools offer excellent performance on cast iron. Carbide's hardness resists the abrasive action of graphite and iron carbides, while its thermal stability allows higher cutting speeds than high-speed steel (HSS). For most modern workshops, solid carbide is the standard choice.

Indexable inserts: Indexable insert tooling—used in turning, milling and boring operations—provides excellent value. When an insert edge wears, you simply index to a fresh edge or replace the insert. Carbide inserts with appropriate grades and coatings are ideal for cast iron.

Ceramic tooling: Advanced ceramic inserts can machine cast iron at very high speeds, making them attractive for high-production environments. However, ceramic is more brittle than carbide and requires rigid setups and consistent cutting conditions.

Coatings: Coated carbide inserts—particularly those with TiN (titanium nitride), TiAlN (titanium aluminium nitride) or PVD coatings—provide superior wear resistance compared to uncoated carbide. These coatings reduce friction, extend tool life and allow higher cutting speeds.

Tool Type	Advantages	Limitations	Best Applications
Solid Carbide	High speed capability, excellent finish, long tool life	Higher initial cost, brittle if interrupted cuts occur	CNC milling, drilling, finishing operations
Indexable Inserts (Carbide)	Cost-effective, quick edge changes, versatile	Requires appropriate holder, less suitable for small features	Turning, facing, milling, boring
Ceramic Inserts	Very high speed capability, excellent finish at speed	Brittle, requires rigid setup, sensitive to interrupted cuts	High-volume production, continuous cutting
High-Speed Steel (HSS)	Low cost, tolerates interrupted cuts, manual machine friendly	Lower speed capability, shorter tool life, slower production	Manual machines, one-off jobs, interrupted cuts

Drilling Cast Iron

Drilling cast iron requires attention to chip evacuation and hole quality. Cast iron produces fine chips and dust rather than continuous swarf, so effective flute design and adequate spindle speed are essential to clear chips from the hole.

Tool selection: Solid carbide drills with good flute geometry and chip evacuation are ideal. Look for drills designed specifically for cast iron, which often feature wider flutes and optimised point geometry. Indexable drill inserts are also effective for larger diameter holes in production environments.

Speeds and feeds: Cast iron can be drilled at relatively high speeds—typically 50–150 m/min depending on drill diameter and material hardness. Feed rates should be moderate to ensure good chip evacuation without excessive tool wear. Start conservatively and increase feed once you observe consistent chip evacuation.

Practical tips: Use a rigid drill chuck and ensure the workpiece is securely clamped. Peck drilling—withdrawing the drill periodically to clear chips—is often necessary, particularly for deep holes. If drilling produces fine dust rather than chips, increase spindle speed slightly to improve chip evacuation.

Milling Cast Iron

Milling cast iron is straightforward when you select appropriate tooling and cutting parameters. Face milling, shoulder milling and high-feed milling all work well on cast iron.

Face milling: Indexable face mills with carbide inserts are the standard choice. Coated inserts extend tool life significantly. Feed per tooth can be moderate to aggressive, and cutting speeds of 100–200 m/min are typical depending on insert grade and workpiece hardness.

Shoulder milling: Shoulder mills (also called shell mills) with indexable inserts provide excellent productivity. The multiple cutting edges distribute wear, extending tool life. Ensure adequate coolant or dust collection to manage the fine chips produced.

High-feed milling: High-feed inserts with shallow depth of cut and high feed per tooth are increasingly popular for cast iron. These tools generate lower cutting forces and excellent surface finish while maintaining high material removal rates.

CNC considerations: Modern CNC machines excel at cast iron milling. Rigid toolholders, consistent spindle speed and programmed feed rates ensure repeatable results. Monitor tool wear and adjust speeds if surface finish degrades.

Turning Cast Iron

Turning cast iron on a lathe or CNC turning centre is one of the most efficient ways to machine this material. The continuous cutting action and good chip breaking characteristics make cast iron ideal for turning operations.

Insert geometry: Positive rake angles (typically 5–15°) work well for cast iron, promoting good chip breaking and reducing cutting forces. Nose radius selection depends on surface finish requirements—smaller nose radii (0.4–0.8 mm) for finishing, larger radii (1.2–2.4 mm) for roughing.

Edge preparation: Slightly honed or chamfered cutting edges improve tool life by reducing chipping and edge wear. Many coated inserts come with factory edge preparation optimised for cast iron.

Roughing vs finishing: Roughing operations can use aggressive feeds and moderate speeds to maximise material removal. Finishing passes benefit from higher speeds and lighter feeds to achieve excellent surface finish. Cutting speeds typically range from 80–250 m/min depending on operation and insert grade.

Recommended Speeds and Feeds for Cast Iron

The following table provides starting points for cutting parameters. Always consult your tooling manufacturer's recommendations and adjust based on machine rigidity, tool condition and workpiece characteristics.

Operation	Tool Type	Cutting Speed (m/min)	Feed Rate
Drilling	Solid carbide drill (6–10 mm)	80–150	0.1–0.2 mm/rev
Face Milling	Indexable face mill (carbide)	120–200	0.15–0.35 mm/tooth
End Milling	Solid carbide end mill (6–12 mm)	100–180	0.1–0.25 mm/tooth
Turning (Roughing)	Carbide insert (positive rake)	100–180	0.3–0.6 mm/rev
Turning (Finishing)	Carbide insert (positive rake)	150–250	0.1–0.2 mm/rev
Boring	Carbide insert boring bar	80–150	0.15–0.3 mm/rev

Note: These are starting points only. Always adjust based on tooling manufacturer data, machine condition and workpiece characteristics. Monitor tool wear and surface finish, and adjust speeds downward if tool life is poor or finish degrades.

Dry Machining vs Coolant for Cast Iron

One of the most distinctive characteristics of cast iron machining is that it is often performed completely dry—without any cutting fluid. This is unusual compared to steel machining, where coolant is typically essential.

Why dry machining works for cast iron: The graphite in cast iron acts as a natural lubricant, reducing friction and heat generation. Cutting temperatures remain moderate even at reasonable speeds, and the graphite helps break chips effectively. For these reasons, dry machining is not only possible but often preferred.

Advantages of dry machining: No coolant means no cleanup, no disposal costs and no machine contamination from coolant residue. Chips are easier to manage and recycle. Tool life is often comparable to or better than wet machining because there's no thermal shock from coolant contact. For workshop cleanliness and simplicity, dry machining is hard to beat.

When coolant may help: In some situations—particularly high-speed finishing operations or when machining very hard cast iron grades—a light mist of cutting fluid can improve surface finish and extend tool life slightly. However, this is optional rather than essential.

Shop cleanliness: The main trade-off with dry machining is dust management. Cast iron produces fine, abrasive dust that must be controlled through effective chip evacuation and regular machine cleaning. Without proper dust management, machine accuracy and tool life suffer.

Aspect	Dry Machining	With Coolant
Tool life	Excellent (no thermal shock)	Good (slight improvement in some cases)
Surface finish	Good to excellent	Excellent (particularly at high speed)
Chip management	Fine dust; requires good evacuation	Easier chip evacuation; coolant residue cleanup needed
Cost	Lower (no coolant purchase or disposal)	Higher (coolant, maintenance, disposal)
Machine cleanliness	Requires regular dust cleaning	Coolant residue can accumulate

Extending Tool Life When Machining Cast Iron

While cast iron is generally kind to cutting tools, maximising tool life requires attention to several factors:

1. Select the correct insert grade: Use grades specifically formulated for cast iron. These typically have slightly lower cobalt content than steel-cutting grades, optimising hardness and wear resistance for cast iron's abrasive characteristics.

2. Maintain appropriate cutting speeds: Running too slowly generates excessive heat and promotes tool wear. Running too fast causes rapid flank wear. Find the sweet spot for your tooling and material—typically 100–200 m/min for most cast iron turning and milling operations.

3. Ensure consistent tool engagement: Interrupted cuts and variable depths of cut accelerate tool wear. Rigid setups and consistent feeds produce longer tool life.

4. Manage dust effectively: Abrasive cast iron dust accelerates wear on machine ways and spindles. Good chip evacuation and regular machine cleaning protect your equipment and maintain accuracy.

5. Monitor and adjust: Watch for signs of tool wear—increasing cutting forces, surface finish degradation, or colour changes on the tool. Adjust speeds downward if wear accelerates unexpectedly, and replace tools before they fail catastrophically.

6. Maintain your machine: A well-maintained machine with tight spindle bearings and rigid toolholders produces better results and extends tool life. Regular spindle cleaning and bearing maintenance are essential when machining cast iron.

Carbide vs Ceramic Tooling for Cast Iron

For high-production cast iron machining, the choice between carbide and ceramic tooling significantly impacts productivity and cost.

Factor	Carbide	Ceramic
Tool life	Good (typically 15–45 minutes per edge)	Excellent (45–120+ minutes per edge)
Cutting speed	100–250 m/min	300–600+ m/min
Surface finish	Good to excellent	Excellent (particularly at high speed)
Cost per insert	Moderate	Higher
Productivity	Good (moderate speeds, frequent tool changes)	Excellent (high speeds, fewer tool changes)
Setup requirements	Moderate rigidity acceptable	Requires very rigid setup, consistent conditions
Ideal applications	General purpose, varied workpieces, manual machines	High-volume production, continuous cutting, CNC

Carbide is the practical choice for most workshops. It offers excellent performance across a wide range of conditions, tolerates less-than-perfect setups and provides good value. Ceramic tooling shines in dedicated high-production environments where rigid CNC machines run the same job repeatedly, allowing you to exploit ceramic's speed advantage and extended tool life to maximise throughput.

Frequently Asked Questions

Is cast iron easy to machine?
Yes, cast iron is generally easier to machine than steel of equivalent hardness. The graphite acts as a natural lubricant, chip breaking is predictable and cutting forces are moderate. However, the abrasive nature of cast iron requires appropriate tooling and dust management.

Should cast iron be machined dry?
Yes, dry machining is the standard and preferred approach for cast iron. The graphite provides natural lubrication, and dry machining eliminates coolant cleanup and disposal. Effective dust collection is essential to manage the fine chips produced.

What tooling works best for cast iron?
Solid carbide and coated carbide inserts are the best choices. Carbide's hardness resists the abrasive action of graphite and iron carbides. Coatings like TiN and TiAlN extend tool life further. For high-production work, ceramic tooling offers superior speed capability and tool life.

Why does cast iron create dust instead of chips?
Cast iron produces fine dust and small chips rather than continuous swarf because of its brittle nature and the graphite structure. Adequate spindle speed and good flute design help produce larger, more manageable chips.

Can HSS tools machine cast iron?
Yes, high-speed steel can machine cast iron, but it's not ideal. HSS is softer than carbide and wears faster against cast iron's abrasive graphite. For production work, carbide is far more cost-effective. HSS is acceptable for occasional manual machine work or one-off jobs.

Key Takeaways for Successful Cast Iron Machining

Material characteristics: Cast iron's graphite structure makes it easier to machine than many steels, with good chip breaking and natural lubrication. However, it is abrasive and produces fine dust that requires effective management.

Best tooling: Solid carbide and coated carbide inserts are the standard. Ceramic tooling excels in high-production environments. Avoid HSS for production work.

Dry machining: Cast iron is typically machined dry. The graphite provides lubrication, tool life is excellent and cleanup is simple. Dust management is the key trade-off.

Cutting parameters: Moderate to high cutting speeds (100–250 m/min for carbide) with appropriate feeds produce excellent results. Always consult tooling manufacturer recommendations and adjust based on machine rigidity and workpiece characteristics.

Tool life optimisation: Select grades designed for cast iron, maintain consistent cutting speeds, ensure rigid setups and manage dust effectively. Regular machine maintenance protects accuracy and extends tool life.

Production efficiency: For high-volume work, ceramic tooling and optimised cutting parameters deliver superior productivity. For general workshop use, carbide offers excellent value and versatility.

Conclusion

Cast iron remains one of the most rewarding materials to machine. Its natural lubrication, predictable chip breaking and moderate cutting forces make it forgiving compared to many steels. Yet success requires understanding its unique characteristics, selecting appropriate carbide or ceramic tooling and applying cutting parameters suited to your machine and workpiece.

Whether you're machining engine blocks, pump housings or industrial machinery components, the principles are consistent: choose quality carbide tooling, run appropriate speeds and feeds, manage dust effectively and maintain your machine. Follow these practices and you'll achieve excellent tool life, consistent surface finish and reliable productivity.
