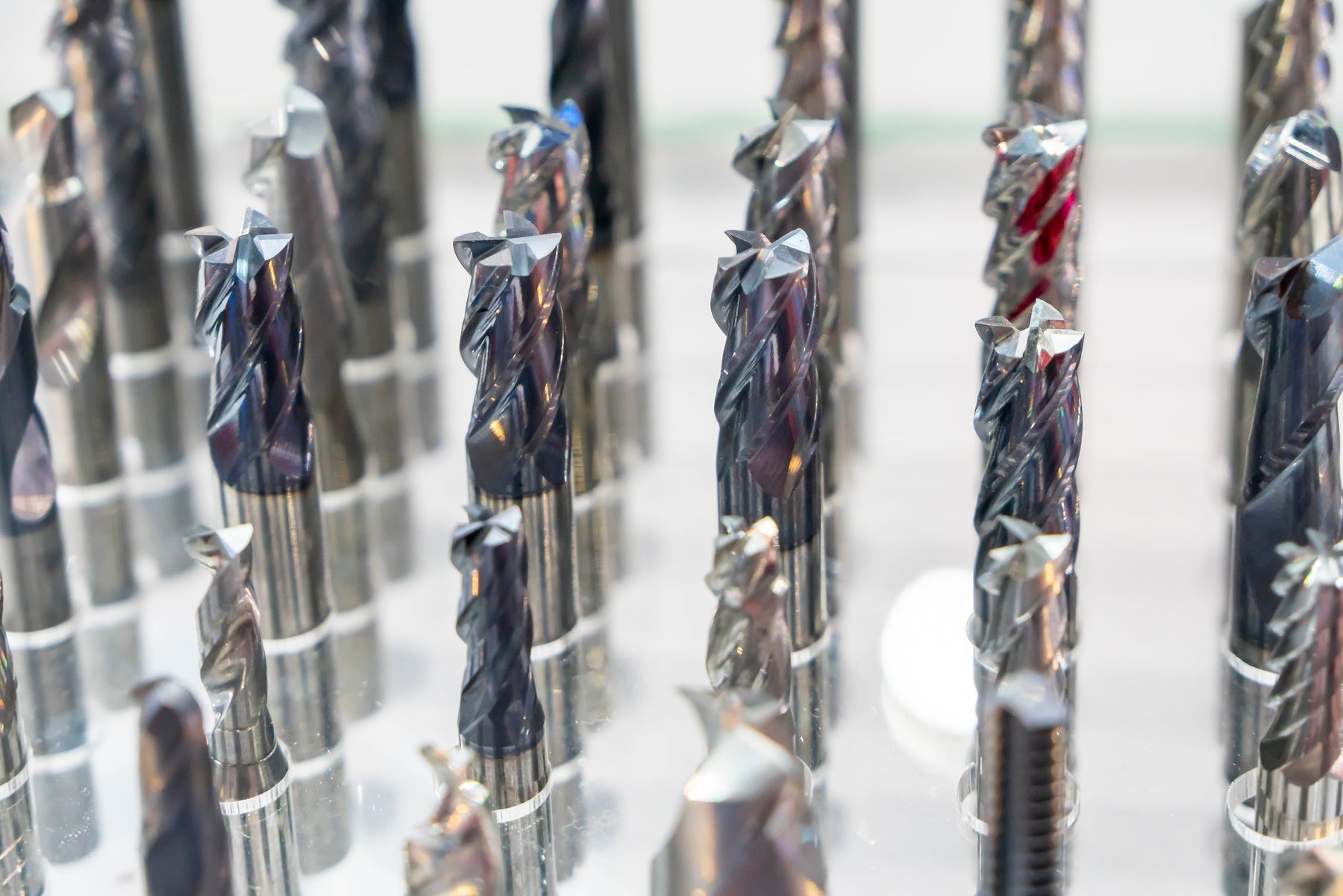

Best End Mills for Aluminium

Why Aluminium Machining Demands the Right End Mill

Aluminium is one of the most widely machined materials in workshops and CNC facilities across Australia. Its softness, excellent machinability and light weight make it ideal for aerospace, automotive, medical device and general engineering applications. However, this same softness creates unique challenges that demand careful tool selection.

The difference between a poorly chosen end mill and the right cutter can be dramatic. Poor tool selection leads to built-up edge formation, chip welding, poor surface finish, premature tool failure and wasted machine time. Conversely, selecting an aluminium-specific end mill optimises productivity, extends tool life and delivers superior surface finish—often with minimal additional cost.

This guide walks you through the key factors that make aluminium machining different, the features that matter most in an aluminium end mill, and how to select the right cutter for your specific application.

What Makes Aluminium Different to Machine?

Aluminium presents several machining characteristics that differ significantly from steel and cast iron. Understanding these differences is essential to selecting the right tooling.

Softness and High Material Removal Rates

Aluminium's low hardness (typically 90–150 HV depending on alloy and temper) allows very high cutting speeds and feed rates. A carbide end mill can remove material from aluminium at rates two to three times faster than from steel. This is excellent for productivity, but it also means chips are generated rapidly and must be evacuated efficiently.

Chip Welding and Built-Up Edge

Aluminium has a strong affinity for steel and carbide. When cutting speeds are too low or feeds are inadequate, aluminium chips can weld themselves to the cutting edge, forming a built-up edge (BUE). This distorts the cutting geometry, degrades surface finish and accelerates tool wear. Unlike steel, where a small BUE can sometimes be tolerated, aluminium machining demands sharp tools and optimised parameters to prevent this.

Chip Evacuation Challenges

Aluminium chips are long, stringy and tend to tangle. Poor chip evacuation can cause chips to wrap around the tool, jam the flutes or scratch the workpiece surface. This is why aluminium-specific end mills feature large flute valleys, high helix angles and polished flutes—all designed to move chips away from the cutting zone quickly.

Practical Workshop Example

A common scenario: an operator uses a general-purpose 3-flute end mill (designed for steel) to mill an aluminium pocket. The tool clogs with chips, the operator reduces spindle speed to clear the jam, and built-up edge forms. The surface finish deteriorates, the tool dulls rapidly, and the job takes twice as long as expected. Switching to a 2-flute high-helix aluminium end mill at the correct speed and feed solves the problem immediately.

What Features Should an Aluminium End Mill Have?

Aluminium-specific end mills share several design characteristics that optimise performance in this material.

High Helix Angle (35°–45°+)

Helix angle is the spiral angle of the flutes. Aluminium end mills typically feature helix angles of 35° to 45° or higher. A steeper helix angle helps chips move up and out of the flutes more efficiently, reducing chip packing and improving evacuation. This is one of the most important design features for aluminium machining.

Polished Flutes

Polished (or burnished) flutes reduce friction and help chips slide smoothly out of the cutting zone. This minimises chip welding and improves surface finish. Many premium aluminium end mills feature mirror-polished flutes.

Sharp Cutting Edges

Aluminium demands sharp tools. A sharp edge reduces cutting forces, minimises built-up edge formation and delivers superior surface finish. Dull tools are the enemy of aluminium machining.

Large Flute Valleys

The space between flutes (the flute valley) must be large enough to accommodate long aluminium chips without jamming. Aluminium-specific end mills are designed with generous flute valleys compared to steel-cutting tools.

Reduced Cutting Forces

The combination of high helix angle, sharp edges and optimised geometry reduces the cutting forces required. This is beneficial for older machines, lighter setups and high-speed operations where rigidity may be limited.

Best Types of End Mills for Aluminium

2-Flute End Mills

Two-flute end mills are the workhorse of aluminium machining. Each flute has more time to evacuate chips, making them ideal for slotting, profiling and general milling. They excel at high feed rates and are forgiving of chip evacuation challenges.

3-Flute End Mills

Three-flute end mills offer a balance between chip evacuation and surface finish. They are popular for finishing operations and applications where a smoother surface is required. They are less forgiving of poor chip evacuation than 2-flute tools but offer better finish quality.

High-Performance Aluminium End Mills

Premium aluminium-specific end mills combine high helix angles (45°+), polished flutes, advanced coatings and optimised geometries. These tools are designed to maximise productivity and tool life in dedicated aluminium machining operations.

Roughing End Mills

Roughing end mills feature serrated or wavy cutting edges that break chips into smaller pieces, improving evacuation and reducing cutting forces. They are excellent for high-speed roughing operations in aluminium.

Variable Helix End Mills

Variable helix end mills feature flutes with slightly different helix angles. This reduces vibration and chatter, improving surface finish and tool life, particularly in slotting and interrupted cutting operations.

2-Flute vs 3-Flute End Mills for Aluminium

The choice between 2-flute and 3-flute end mills is one of the most common decisions in aluminium machining. Both have distinct advantages.

Chip Evacuation

2-flute end mills have larger flute valleys and more time per revolution for each flute to clear chips. They are superior for slotting and applications where chip evacuation is critical. 3-flute end mills have smaller flute valleys and are more prone to chip packing in demanding applications.

Feed Rates

2-flute end mills can sustain higher feed rates because each flute has more time to evacuate. 3-flute end mills typically operate at lower feed rates per tooth but can achieve higher overall material removal rates due to the additional flute.

Surface Finish

3-flute end mills generally produce a finer surface finish because there are more cutting edges per revolution. 2-flute end mills produce a slightly coarser finish but are more forgiving of setup issues and runout.

Productivity

For roughing operations, 2-flute end mills often deliver higher productivity due to superior chip evacuation and higher feed rates. For finishing, 3-flute end mills may be preferred for surface finish quality.

Slotting Performance

2-flute end mills are significantly better for slotting (cutting a closed pocket with no entry/exit). The larger flute valleys and superior chip evacuation make them the clear choice for this demanding operation.

Feature	2-Flute End Mill	3-Flute End Mill
Chip Evacuation	Excellent	Good
Feed Rate Capability	Very High	Moderate to High
Surface Finish	Good	Excellent
Slotting Suitability	Excellent	Fair to Good
Rigidity	Good	Better
Best For	Roughing, Slotting, High Feed Rates	Finishing, Fine Surface Finish

When to Choose Each

Choose 2-flute end mills for roughing operations, slotting, high-speed machining and applications where chip evacuation is critical. Choose 3-flute end mills for finishing passes, applications requiring fine surface finish and general-purpose milling where a balance between finish and productivity is desired.

Carbide vs HSS End Mills for Aluminium

The material of the cutting tool itself—carbide or high-speed steel (HSS)—significantly impacts performance in aluminium machining.

Factor	Carbide End Mills	HSS End Mills
Tool Life	10–50× longer than HSS	Baseline
Cutting Speed	300–1000+ m/min	50–150 m/min
Surface Finish	Excellent	Good
Cost per Tool	Higher upfront cost	Lower upfront cost
Cost per Part	Lower (due to tool life)	Higher
Machine Rigidity Required	Moderate to High	Low to Moderate
Ideal For	CNC, Production, High-Speed Machining	Manual Machines, Hobby, Low-Volume Work

Why Carbide Dominates Modern Aluminium Machining

Carbide end mills are the standard in modern CNC machining for good reason. Their superior hardness, heat resistance and tool life make them ideal for aluminium, where high cutting speeds are both possible and desirable. A carbide end mill can run at 500 m/min or faster in aluminium, removing material at rates that would be impossible with HSS. Over the course of a production run, the longer tool life and faster cycle times typically offset the higher initial cost.

HSS end mills remain useful for manual machines, hobby work and situations where machine rigidity is limited. However, for any serious aluminium machining operation, carbide is the better choice.

Coated vs Uncoated End Mills for Aluminium

Tool coatings can enhance performance, but the choice for aluminium machining is more nuanced than for steel.

Why Many Aluminium Cutters Are Uncoated

Many premium aluminium end mills are uncoated. The reason is simple: aluminium does not require the heat resistance or wear protection that coatings provide. Uncoated carbide offers excellent performance in aluminium at high speeds. Additionally, some coatings can interfere with chip evacuation or increase friction in ways that are detrimental to aluminium machining.

Suitable Coatings for Aluminium

When coatings are used on aluminium end mills, they are typically chosen for specific benefits. Polished or burnished surfaces (not traditional PVD coatings) help reduce friction and improve chip flow. Some manufacturers apply thin, specialised coatings designed specifically for aluminium to enhance tool life without compromising chip evacuation.

Effects on Chip Evacuation and Surface Finish

The key consideration is that any coating must not impede chip evacuation. A thick or sticky coating can cause chips to adhere to the flutes, negating the benefits of high helix angle and polished geometry. This is why uncoated or lightly coated tools are often preferred for aluminium.

Coating Type	Advantages	Considerations for Aluminium
Uncoated Carbide	Excellent chip evacuation, sharp edges, proven performance	Ideal for aluminium; no coating interference
Polished/Burnished	Reduced friction, improved chip flow	Excellent for aluminium; enhances evacuation
TiN (Titanium Nitride)	Wear resistance, heat resistance	Can impede chip evacuation; not ideal for aluminium
Aluminium-Specific Coatings	Designed for aluminium performance	Good choice if available; verify chip evacuation

Choosing an End Mill Based on the Application

Different aluminium machining operations demand different tool geometries and strategies.

Slotting Aluminium

Slotting—cutting a closed pocket with no entry or exit—is one of the most demanding aluminium machining operations. All chips must be evacuated upward through the flutes. Use a 2-flute end mill with high helix angle (40°+), polished flutes and large flute valleys. Maintain high spindle speed and appropriate feed rate. Monitor chip evacuation closely; if chips jam, reduce feed rate or increase spindle speed.

Profiling Aluminium

Profiling (cutting the outline of a part) is less demanding than slotting because chips can escape sideways. Both 2-flute and 3-flute end mills work well. For high-speed profiling, use a 2-flute tool at high spindle speed and feed rate. For finishing profiles where surface finish is critical, a 3-flute end mill may be preferred.

Pocket Milling Aluminium

Pocket milling involves cutting an open cavity. Chips can escape more easily than in slotting. A 3-flute end mill is often suitable for pocket milling, offering a good balance between productivity and surface finish. For large, deep pockets, a 2-flute roughing end mill followed by a 3-flute finishing pass is a common strategy.

High-Speed Machining

High-speed machining of aluminium (spindle speeds of 10,000 rpm or higher) demands premium tooling. Use carbide end mills with high helix angles, polished flutes and optimised geometries. Ensure the machine and toolholding are rigid and runout is minimal. High-speed machining can dramatically reduce cycle times in aluminium.

Finishing Operations

For finishing passes where surface finish is the priority, use a sharp 3-flute end mill at moderate to high spindle speed and lower feed rate. Ensure the tool is sharp; a dull tool will produce poor finish. Consider a variable helix end mill to reduce chatter and improve finish quality.

Common Mistakes When Milling Aluminium

Using Steel-Specific Tooling

A common mistake is using a general-purpose end mill designed for steel on aluminium. Steel-cutting tools typically have lower helix angles, smaller flute valleys and different geometries optimised for steel's properties. They perform poorly in aluminium, leading to chip packing, poor finish and rapid tool wear. Always use aluminium-specific end mills.

Poor Chip Evacuation

Allowing chips to accumulate in the cutting zone is a recipe for disaster. Chips wrap around the tool, jam the flutes and scratch the workpiece. Maintain high spindle speed and appropriate feed rate to keep chips moving. Clear chips regularly during manual operations.

Incorrect Spindle Speeds

Running too slowly causes built-up edge and poor finish. Running too fast (beyond the tool's capability) causes rapid wear. Consult the tool manufacturer's recommendations and adjust based on your machine's rigidity and the specific alloy being machined.

Tool Runout

Runout (the radial deviation of the tool from the spindle axis) causes uneven cutting, poor finish and premature tool wear. Use quality toolholders, keep them clean and check runout regularly. Even small amounts of runout (0.05 mm or more) significantly degrade performance in aluminium.

Inadequate Lubrication

While aluminium can be machined dry, appropriate lubrication improves surface finish, reduces tool wear and helps with chip evacuation. Use a light cutting fluid or mist coolant designed for aluminium. Avoid heavy oils that can clog chips.

Recommended Speeds and Feeds for Aluminium End Mills

The following table provides general guidance for cutting speeds and feeds. Actual parameters should be adjusted based on machine rigidity, tool manufacturer recommendations, alloy type and setup conditions.

Tool Type	Cutting Speed (m/min)	Feed per Tooth (mm)	Notes
2-Flute Carbide (Roughing)	400–800	0.15–0.35	High feed rates; monitor chip evacuation
2-Flute Carbide (Finishing)	500–1000	0.10–0.20	Higher speeds; lower feeds for finish
3-Flute Carbide (General)	400–700	0.10–0.25	Balanced performance; good finish
HSS End Mill	80–150	0.05–0.15	Much lower speeds than carbide

Important Note: These are general guidelines. Always consult the tool manufacturer's recommendations for your specific end mill. Adjust parameters based on machine rigidity, workholding, alloy type (6061, 7075, etc.) and desired surface finish. Start conservative and increase speeds and feeds gradually while monitoring tool condition and finish quality.

How to Improve Tool Life and Surface Finish

Several practical steps can dramatically improve results when milling aluminium.

Use Sharp Tools

A sharp tool is essential. Dull tools cause built-up edge, poor finish and rapid wear. Replace tools regularly; the cost of a new tool is far less than the cost of scrap parts or machine downtime.

Maintain Proper Chip Evacuation

Keep chips moving out of the cutting zone. Use appropriate spindle speed and feed rate. Clear chips regularly during manual operations. Consider using a brush or air jet to help clear chips.

Reduce Runout

Minimise tool runout by using quality toolholders, keeping them clean and checking runout with a dial indicator. Even 0.05 mm of runout significantly impacts performance.

Optimise Speeds and Feeds

Follow the tool manufacturer's recommendations and adjust based on your machine's rigidity. Higher speeds and feeds are generally better for aluminium (within the tool's capability) because they reduce built-up edge formation.

Use Appropriate Lubrication

Light cutting fluid or mist coolant improves surface finish and tool life. Avoid heavy oils that can interfere with chip evacuation.

Ensure Rigid Workholding

Secure the workpiece firmly to minimise deflection and vibration. Poor workholding causes chatter, poor finish and tool breakage.

Frequently Asked Questions

What is the best end mill for aluminium?

The best end mill for aluminium depends on the specific application. For general-purpose work, a 2-flute or 3-flute carbide end mill with a high helix angle (35°–45°+) and polished flutes is ideal. For slotting, a 2-flute tool is superior. For finishing, a 3-flute tool often produces better surface finish. Always choose an aluminium-specific end mill rather than a general-purpose tool.

Are 2-flute or 3-flute end mills better for aluminium?

Both have advantages. 2-flute end mills excel at chip evacuation and are superior for slotting and high-speed roughing. 3-flute end mills produce finer surface finish and are better for finishing operations. For most general-purpose aluminium machining, a 2-flute tool is the safer choice due to superior chip evacuation.

Should aluminium end mills be coated?

Many premium aluminium end mills are uncoated because uncoated carbide performs excellently in aluminium and does not interfere with chip evacuation. Polished or burnished surfaces are beneficial. Avoid thick coatings that may impede chip flow. If a coating is used, ensure it is designed for aluminium machining.

Can steel end mills be used on aluminium?

Steel end mills can technically be used on aluminium, but they are not ideal. Steel-cutting tools have lower helix angles and smaller flute valleys, leading to poor chip evacuation, chip packing and rapid wear in aluminium. Always use aluminium-specific end mills for best results.

What causes aluminium to stick to end mills?

Aluminium sticks to cutting tools when spindle speed is too low or feed rate is inadequate. This causes built-up edge formation, where aluminium welds itself to the cutting edge. The solution is to increase spindle speed and/or feed rate. Ensure the tool is sharp and use appropriate lubrication. If the problem persists, switch to an aluminium-specific end mill with higher helix angle and polished flutes.

Key Takeaways

Best Cutter Geometries: Aluminium-specific end mills feature high helix angles (35°–45°+), polished flutes, sharp edges and large flute valleys. These features optimise chip evacuation and prevent built-up edge formation.

Flute Count Considerations: 2-flute end mills are superior for slotting, high-speed roughing and applications where chip evacuation is critical. 3-flute end mills offer better surface finish and are preferred for finishing operations.

Carbide vs HSS: Carbide end mills are the standard for modern CNC machining. They offer superior tool life, higher cutting speeds and lower cost per part. HSS remains useful for manual machines and low-volume work.

Coating Considerations: Many premium aluminium end mills are uncoated or lightly polished. Avoid thick coatings that may interfere with chip evacuation. Polished surfaces enhance performance.

Tool Selection Recommendations: Choose tools based on the specific application. Use 2-flute tools for slotting and roughing, 3-flute tools for finishing. Always use aluminium-specific end mills. Maintain sharp tools, optimise speeds and feeds, and ensure proper chip evacuation.

Conclusion

Selecting the right end mill for aluminium machining is one of the most impactful decisions you can make in your workshop. The difference between a poorly chosen tool and an aluminium-specific end mill is dramatic: better surface finish, longer tool life, faster cycle times and fewer scrap parts.

The key principles are straightforward: use aluminium-specific end mills with high helix angles and polished flutes, choose 2-flute tools for slotting and roughing, use 3-flute tools for finishing, maintain sharp tools, optimise spindle speed and feed rate, and ensure proper chip evacuation. Follow these guidelines and you will see immediate improvements in your aluminium machining results.
