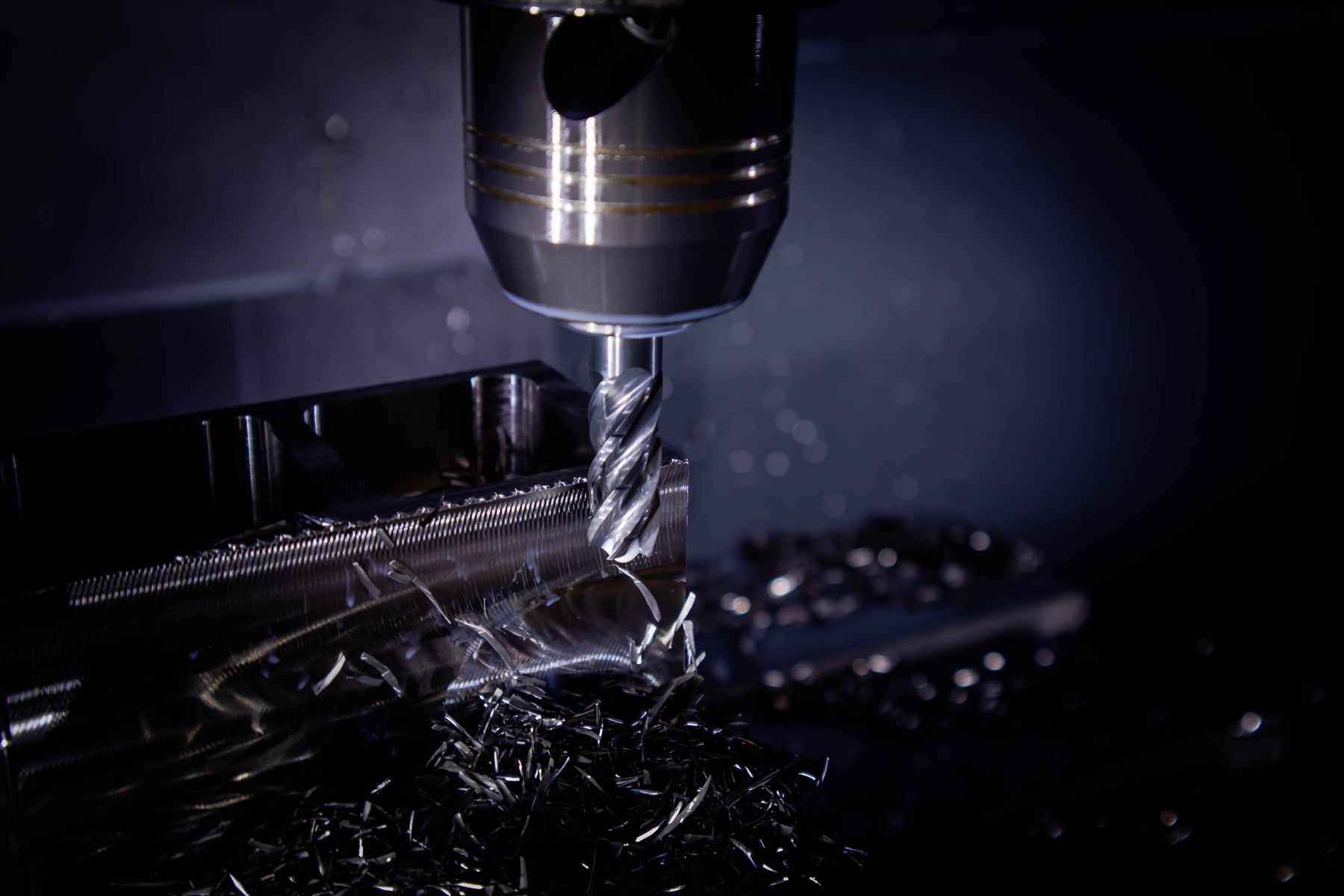

Machining Aluminium 6061

What Is 6061 Aluminium?

6061 aluminium is a heat-treatable alloy that combines aluminium with magnesium and silicon as primary alloying elements. This composition gives it excellent strength-to-weight characteristics, making it one of the most versatile engineering materials available today. The alloy offers outstanding corrosion resistance, particularly in marine and coastal environments, and it welds exceptionally well compared to other aluminium grades.

From a machinability perspective, 6061 is a dream material. It produces long, continuous chips that evacuate cleanly from the cutting zone, and it responds beautifully to sharp tooling. You'll find 6061 aluminium in CNC components, automotive brackets, aerospace fixtures, marine hardware, and general engineering products across workshops worldwide.

Why Is 6061 Aluminium Popular for Machining?

The popularity of 6061 aluminium in machine shops comes down to several practical advantages. First, it machines at significantly higher speeds than steel—often two to three times faster—which means shorter cycle times and higher throughput. Second, tool wear is considerably lower, extending tool life and reducing replacement costs. Third, the material naturally produces excellent surface finishes without requiring aggressive finishing passes.

In real workshop conditions, this translates to faster job completion, lower tooling costs, and less time spent on secondary finishing operations. A CNC operator can run 6061 parts at aggressive feeds and speeds while maintaining tight tolerances and excellent surface quality—something that would be risky or impossible with steel.

Common Challenges When Machining 6061 Aluminium

Despite its excellent machinability, 6061 aluminium presents specific challenges that every machinist should understand.

Built-up edge (BUE) occurs when aluminium particles weld themselves to the cutting tool's flank face, creating a false edge that degrades surface finish and increases tool wear. This happens most often with dull tools or inadequate chip evacuation.

Chip welding happens when hot chips re-weld to the workpiece surface, creating rough spots and requiring secondary cleanup. This is particularly problematic in blind holes or pockets where chips can't escape freely.

Burr formation is common on exit edges, especially when drilling or milling through material. Aluminium's low melting point means chips can soften and create sharp, stubborn burrs that are tedious to remove by hand.

Tool loading occurs when chips pack into flutes or around the tool, reducing cutting efficiency and forcing you to stop and clear the tool manually. This wastes time and increases frustration on production runs.

Prevention strategies include maintaining sharp cutting edges, using polished or high-helix tooling designed for aluminium, optimising spindle speeds for chip evacuation, and selecting appropriate coolant or lubrication methods.

Best Cutting Tools for 6061 Aluminium

Selecting the right cutting tool is fundamental to successful 6061 machining. Carbide tooling is the industry standard because it maintains hardness at high cutting speeds and produces superior surface finishes.

High-helix carbide end mills are purpose-designed for aluminium. The increased helix angle (typically 35–45 degrees) improves chip evacuation and reduces cutting forces. Polished flutes further enhance chip flow and reduce built-up edge formation.

Aluminium-specific drills feature polished flutes, split-point geometry, and optimised margins to prevent chip packing and produce clean holes without excessive burring.

Indexable milling cutters offer excellent value for production runs, with replaceable inserts that maintain sharp cutting edges and reduce downtime between tool changes.

Tool Type	Advantages	Limitations	Best Applications
High-Helix Carbide End Mills	Excellent chip evacuation, superior surface finish, long tool life, high speed capability	Higher initial cost, requires rigid setup	CNC milling, production runs, tight tolerances
Carbide Drills	Fast drilling, clean holes, minimal burring, good tool life	Brittle if machine has runout, requires proper speeds	Production drilling, CNC drilling, high-volume work
Indexable Milling Cutters	Quick insert changes, consistent cutting edges, cost-effective for production	Less suitable for small jobs, requires insert inventory	High-volume production, facing, slotting, roughing
HSS End Mills	Low cost, forgiving of runout, suitable for manual machines	Slower cutting speeds, shorter tool life, poor surface finish	Manual milling, one-off jobs, low-speed operations

Coated vs Uncoated Tools for Aluminium

This is a topic that generates debate in workshops, and the answer depends on your specific application.

Uncoated carbide tools are the traditional choice for aluminium machining. The bare carbide surface allows chips to flow freely without sticking, reducing built-up edge formation and chip welding. Uncoated tools also offer superior surface finish on aluminium because the sharp, uncoated edge produces cleaner cuts.

Coated tools can work on aluminium, but the coating must be selected carefully. Titanium nitride (TiN) and aluminium titanium nitride (AlTiN) coatings can improve tool life in interrupted cuts or when machining harder aluminium alloys. However, coatings can trap chips and increase built-up edge formation on softer alloys like 6061, potentially degrading surface finish.

Factor	Uncoated Carbide	Coated Carbide
Tool Life	Excellent on 6061, moderate on harder alloys	Better on interrupted cuts, harder alloys
Chip Evacuation	Superior—chips flow freely	Can trap chips, risk of built-up edge
Surface Finish	Excellent, sharp edge produces clean cuts	Good, but coating can affect edge sharpness
Cost	Lower initial cost	Higher initial cost
Best For 6061	Recommended for most applications	Consider for harder alloys or interrupted cuts

Recommendation: For 6061 aluminium, uncoated carbide tools are the best choice. They deliver superior surface finish, excellent chip evacuation, and outstanding tool life at a lower cost than coated alternatives.

Drilling 6061 Aluminium

Drilling aluminium requires attention to several key factors to avoid chip packing, excessive burring, and tool breakage.

Drill selection: Use carbide drills with polished flutes and split-point geometry. The split point reduces thrust force and prevents the drill from walking on entry. Avoid standard twist drills designed for steel—they're too aggressive for aluminium.

Feed and speed: Carbide drills can run at 3,000–5,000 RPM for 6061 aluminium, depending on hole diameter and machine rigidity. Feed rates should be aggressive enough to produce chips that evacuate cleanly—typically 0.003–0.010 inches per revolution for small drills, increasing with diameter.

Chip evacuation: Withdraw the drill frequently to clear chips, especially in blind holes. Chips that pack around the drill create heat, increase thrust force, and can break the tool.

Coolant: Dry drilling works well for through-holes with good chip evacuation. For blind holes or production runs, use a mist system or light flood coolant to improve chip flow and reduce heat.

Burr control: Reduce spindle speed slightly as the drill exits to minimise burr formation. A quick deburring pass with a countersink or hand tool removes exit burrs efficiently.

Milling 6061 Aluminium

Milling 6061 aluminium is where you can really take advantage of the material's excellent machinability.

High-speed machining: 6061 responds beautifully to aggressive cutting speeds. Carbide end mills can run at 2,000–4,000 RPM with feed rates of 0.005–0.015 inches per tooth, depending on tool diameter and machine rigidity. Higher speeds produce better surface finish and reduce cutting forces.

Climb milling: On rigid CNC machines, climb milling (cutting in the direction of tool rotation) produces superior surface finish and reduces tool wear. Conventional milling works on manual machines or less rigid setups.

Tool engagement: Maintain consistent tool engagement by using appropriate depths of cut and feed rates. Avoid light, scratching cuts that can cause built-up edge formation.

Trochoidal milling: For deep slots or pockets, trochoidal milling (circular tool paths with small radial depths) reduces cutting forces, improves chip evacuation, and extends tool life significantly.

Surface finish optimisation: Use sharp tooling, optimise spindle speed for your specific tool and machine, and ensure the workpiece is held rigidly. A finishing pass at higher speed with light depth of cut produces excellent surface quality.

Recommended Speeds and Feeds for 6061 Aluminium

These are general guidelines. Always consult your tool manufacturer's recommendations and adjust based on your machine's rigidity, coolant use, and setup conditions.

Tool Type	Diameter	RPM	Feed per Tooth
Carbide Drill	1/16"–1/4"	3,000–5,000	0.003–0.008"
Carbide Drill	1/4"–1/2"	2,000–3,500	0.008–0.015"
Carbide End Mill (2 Flute)	1/8"–1/4"	3,000–4,000	0.005–0.010"
Carbide End Mill (2 Flute)	1/4"–1/2"	2,000–3,000	0.008–0.015"
Indexable Cutter	1"–2"	1,000–2,000	0.010–0.025"

Coolant and Lubrication for Aluminium Machining

The right coolant strategy improves surface finish, extends tool life, and reduces chip-related problems.

Dry machining: Works well for through-holes and open milling operations where chips evacuate freely. Dry machining reduces cleanup time and is cost-effective for short runs.

Mist systems: A light mist of coolant improves chip evacuation and reduces heat without creating the mess of flood coolant. Ideal for CNC operations and production runs.

Flood coolant: Full-flow coolant is excellent for heavy roughing operations and blind holes where chip evacuation is challenging. Use a soluble oil or synthetic coolant formulated for aluminium.

Minimum Quantity Lubrication (MQL): This method applies a tiny amount of oil mixed with compressed air, providing lubrication and cooling with minimal waste. It's becoming increasingly popular in modern shops.

Recommendation for 6061: Start with dry machining for simple operations. Add a mist system for production runs or when surface finish becomes critical. Use flood coolant only for heavy roughing or blind holes.

How to Achieve Better Surface Finish on 6061 Aluminium

Excellent surface finish is one of 6061's greatest advantages. Here's how to maximise it:

Use sharp tooling: Dull tools produce poor finish and built-up edge. Replace tools regularly or use indexable inserts that maintain sharp edges.

Optimise spindle speed: Higher speeds generally produce better finish. Increase RPM until you hear a smooth, consistent cutting sound.

Reduce tool runout: Runout causes chatter and poor finish. Check your collet, end mill, and spindle bearings regularly. Replace worn collets immediately.

Improve workholding: Loose workpieces vibrate and produce poor finish. Use rigid vices, clamps, or fixtures that hold the part firmly without distortion.

Control chip evacuation: Chips that re-weld to the surface create rough spots. Ensure chips flow freely by using appropriate speeds, feeds, and coolant.

Carbide vs HSS for 6061 Aluminium

High-speed steel (HSS) tools can machine 6061 aluminium, but carbide is superior in almost every way.

Factor	Carbide	HSS
Tool Life	Excellent—10–50× longer than HSS	Short—requires frequent replacement
Cutting Speed	2,000–5,000 RPM (high speed capability)	500–1,500 RPM (limited speed)
Surface Finish	Excellent—sharp edge, minimal built-up edge	Good—acceptable for general work
Cost per Tool	Higher initial cost	Lower initial cost
Cost per Part	Lower—fewer tool changes, faster cycles	Higher—frequent tool changes, slow cycles
Best Use Cases	CNC, production, tight tolerances, high-volume	Manual machines, one-off jobs, low-speed work

Bottom line: If your machine can run at 2,000+ RPM, carbide is the better investment. The longer tool life, faster cycles, and superior surface finish quickly offset the higher initial cost.

Frequently Asked Questions

Is 6061 aluminium easy to machine?
Yes. 6061 is one of the easiest materials to machine. It produces excellent surface finishes, allows high cutting speeds, and causes minimal tool wear compared to steel or stainless steel.

What is the best end mill for aluminium?
High-helix carbide end mills with polished flutes are ideal. Look for tools specifically designed for aluminium, with helix angles of 35–45 degrees and uncoated surfaces for optimal chip evacuation.

Should aluminium be machined dry or with coolant?
Both work. Dry machining is fine for through-holes and open operations. Use a mist system or light coolant for production runs, blind holes, or when surface finish is critical.

What causes aluminium to stick to cutting tools?
Built-up edge (BUE) occurs when dull tools, low speeds, or poor chip evacuation allow aluminium particles to weld to the tool. Use sharp tools, optimise speeds and feeds, and ensure chips flow freely.

Can HSS tools machine 6061 aluminium effectively?
Yes, but they're limited to low speeds (500–1,500 RPM) and require frequent replacement. Carbide tools are more productive and cost-effective for any volume of work.

Key Takeaways for Successful 6061 Aluminium Machining

6061 aluminium is highly machinable because of its composition, excellent chip evacuation, and low tool wear. The key to success is selecting the right tooling—high-helix carbide end mills and polished carbide drills designed specifically for aluminium. Optimise your spindle speeds and feed rates to keep chips flowing freely and prevent built-up edge formation. Maintain sharp cutting edges by replacing tools regularly or using indexable inserts. Control surface finish by reducing tool runout, improving workholding, and using appropriate coolant strategies. Finally, remember that carbide tools deliver superior productivity and lower cost-per-part compared to HSS, making them the best choice for any serious machining operation.

By following these best practices, you'll achieve excellent surface finishes, extend tool life, reduce cycle times, and produce parts that meet tight tolerances consistently. 6061 aluminium rewards good technique with outstanding results.
