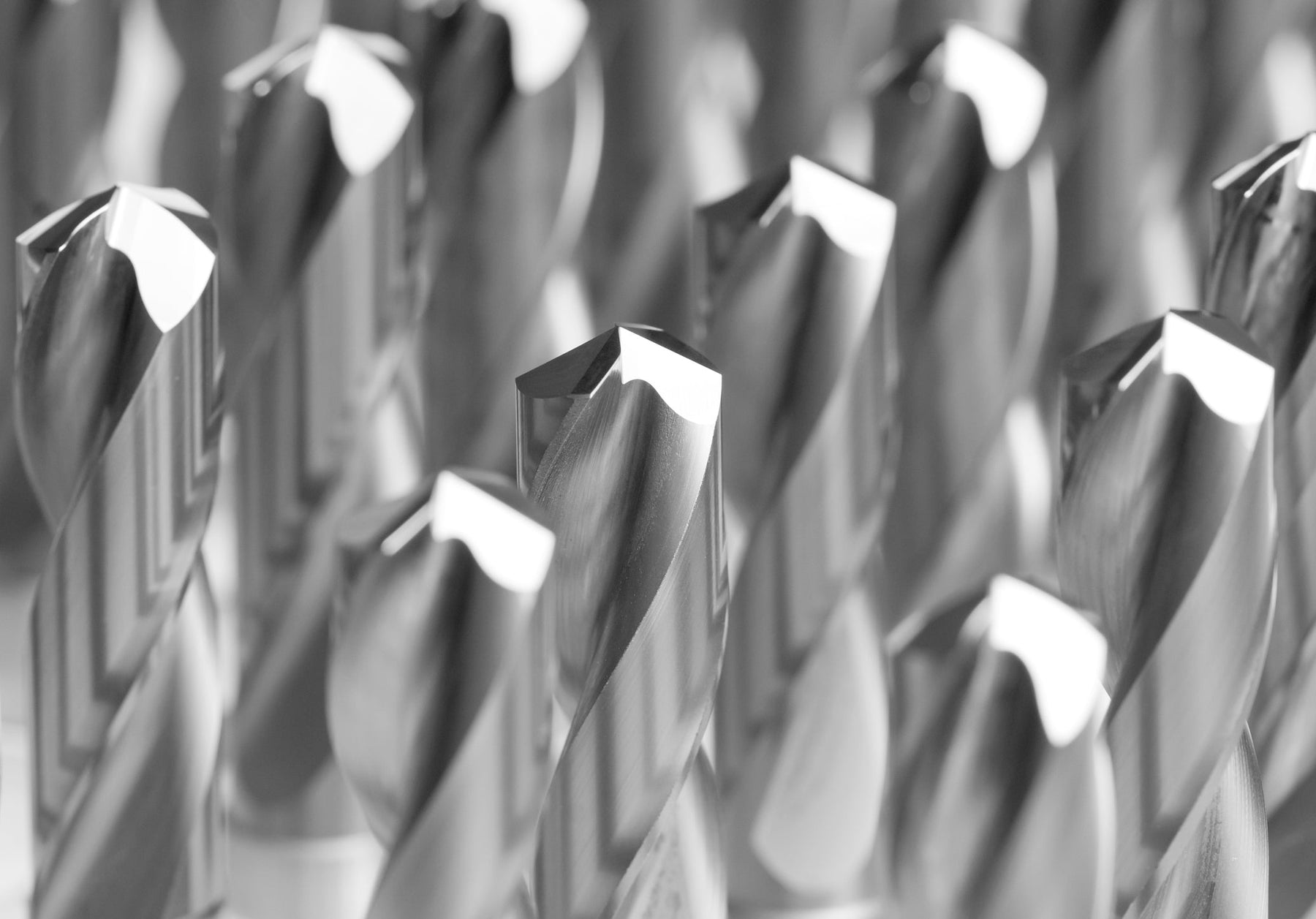

Drills
Why Stainless Steel Demands Precision Drilling
Stainless steel is one of the most challenging materials to drill. Unlike mild steel or aluminium, stainless steel presents a unique combination of obstacles that can frustrate even experienced machinists. The material's high strength, poor thermal conductivity, and tendency to work-harden make it a formidable opponent for any drill bit.
When you drill stainless steel, heat builds up rapidly at the cutting edge. The material doesn't dissipate this heat efficiently, so temperatures at the tool tip can exceed 1000°C. This extreme heat accelerates tool wear, shortens tool life, and can cause premature drill breakage. Additionally, stainless steel's work-hardening characteristics mean that if your cutting speed is too slow, the material hardens ahead of the drill, making penetration even more difficult and increasing friction and heat generation.
Getting the right balance of cutting speed and feed rate is essential. Too slow, and you'll work-harden the material and burn out your drill. Too fast, and you'll generate excessive heat and wear the tool rapidly. This article provides practical guidance on recommended drill speeds, feeds, and best practices to help you drill stainless steel efficiently, extend tool life, and produce quality holes.
Understanding Stainless Steel Grades
Not all stainless steel is created equal. Different grades have varying machinability characteristics, and understanding these differences is crucial for selecting the right cutting speeds and feeds.
303 Stainless Steel
Grade 303 is a free-machining stainless steel that contains added sulphur and selenium to improve chip formation. It's the easiest stainless steel to machine and drill, making it ideal for high-volume production runs. If you're drilling stainless steel and want the best machinability, 303 is your best choice.
304 Stainless Steel
Grade 304 is the most common austenitic stainless steel and is widely used in general engineering, food processing, and chemical applications. It offers excellent corrosion resistance but is more difficult to machine than 303. Drilling 304 requires careful speed and feed control to avoid work hardening.
316 Stainless Steel
Grade 316 contains molybdenum, which enhances corrosion resistance, particularly in marine and chloride-rich environments. It's harder and more difficult to machine than 304, requiring lower cutting speeds and careful coolant application.
Duplex Stainless Steel
Duplex grades combine austenitic and ferritic structures, offering high strength and excellent corrosion resistance. They are significantly harder than 304 and 316, demanding lower cutting speeds, higher feed rates, and robust tooling.
Stainless Steel Grade Comparison Table
| Grade | Machinability | Corrosion Resistance | Drilling Difficulty | Typical Applications |
|---|---|---|---|---|
| 303 | Excellent | Good | Low | High-volume production, fasteners |
| 304 | Good | Excellent | Moderate | General engineering, food processing |
| 316 | Fair | Excellent | High | Marine, chemical, offshore |
| Duplex | Fair | Excellent | High | High-strength applications, subsea |
Why Correct Speeds and Feeds Matter
Selecting the right cutting speed and feed rate isn't just about following a chart—it directly impacts your bottom line and the quality of your work.
Tool Life
Incorrect speeds and feeds are the primary cause of premature tool wear and breakage. Running too slowly causes work hardening and excessive friction, while running too fast generates extreme heat. Both scenarios dramatically reduce tool life. By optimising your speeds and feeds, you can extend tool life by 50% or more, reducing tool costs and downtime.
Hole Quality
Proper cutting speeds and feeds produce cleaner, more accurate holes with better surface finish. This reduces the need for secondary finishing operations and improves dimensional accuracy, which is critical in precision engineering and CNC drilling applications.
Cycle Times
Many machinists run stainless steel too slowly out of caution. In reality, stainless steel often benefits from higher cutting speeds than mild steel, provided you use the right tooling and coolant. Optimising your speeds can significantly reduce cycle times and increase throughput.
Work Hardening Prevention
Stainless steel work-hardens rapidly when cut at low speeds. This hardening occurs ahead of the drill, making the material even more difficult to cut. Maintaining adequate cutting speed prevents this hardening and keeps the material in a machinable state.
Cost Reduction
Better tool life, faster cycle times, and fewer scrap parts all contribute to lower per-unit costs. Investing time in understanding and optimising your drilling parameters pays dividends across your entire operation.
Recommended Drill Speeds for Stainless Steel
The following table provides recommended surface speeds and starting RPM formulas for drilling various stainless steel grades with different tool types. These are starting points—adjust based on your specific setup, coolant, and machine rigidity.
| Drill Type | Material Grade | Surface Speed (m/min) | Starting RPM Formula | Application Notes |
|---|---|---|---|---|
| HSS | 303 | 20–25 | (Speed × 1000) ÷ (π × Ø) | Manual machines, general purpose |
| HSS | 304 | 15–20 | (Speed × 1000) ÷ (π × Ø) | Conservative approach, good tool life |
| HSS | 316 | 12–18 | (Speed × 1000) ÷ (π × Ø) | Harder material, reduce speed further if chatter occurs |
| Cobalt HSS | 304 | 25–30 | (Speed × 1000) ÷ (π × Ø) | Better heat resistance than standard HSS |
| Cobalt HSS | 316 | 20–25 | (Speed × 1000) ÷ (π × Ø) | Improved performance over standard HSS |
| Solid Carbide | 303–304 | 60–100 | (Speed × 1000) ÷ (π × Ø) | CNC machines, rigid setups, excellent tool life |
| Solid Carbide | 316 | 40–70 | (Speed × 1000) ÷ (π × Ø) | Reduce speed for harder grades |
| Through-Coolant Carbide | 303–304 | 80–120 | (Speed × 1000) ÷ (π × Ø) | High-speed production, superior chip evacuation |
| Through-Coolant Carbide | 316 | 60–90 | (Speed × 1000) ÷ (π × Ø) | Excellent for production runs |
How to Calculate RPM
The fundamental formula for calculating RPM from a given cutting speed is:
RPM = (Cutting Speed × 1000) ÷ (π × Drill Diameter in mm)
Where:
- Cutting Speed is measured in metres per minute (m/min)
- Drill Diameter is measured in millimetres (mm)
- π (pi) = 3.14159
Practical Examples
Example 1: 6mm HSS Drill in 304 Stainless Steel
Cutting speed: 18 m/min
RPM = (18 × 1000) ÷ (3.14159 × 6)
RPM = 18,000 ÷ 18.85
RPM = 955 RPM
Example 2: 10mm Solid Carbide Drill in 304 Stainless Steel
Cutting speed: 80 m/min
RPM = (80 × 1000) ÷ (3.14159 × 10)
RPM = 80,000 ÷ 31.42
RPM = 2,546 RPM
Example 3: 20mm Through-Coolant Carbide Drill in 316 Stainless Steel
Cutting speed: 70 m/min
RPM = (70 × 1000) ÷ (3.14159 × 20)
RPM = 70,000 ÷ 62.83
RPM = 1,114 RPM
Once you've calculated your starting RPM, monitor the drilling process. If you see excessive heat, smoke, or rapid tool wear, reduce the RPM slightly. If the drill is producing long stringy chips and the hole finish is poor, increase the RPM.
Recommended Feed Rates
Feed rate—the distance the drill advances per revolution—is equally important as cutting speed. Too slow a feed causes rubbing and work hardening; too fast a feed can cause drill breakage and poor hole finish.
| Drill Diameter (mm) | HSS Feed Rate (mm/rev) | Carbide Feed Rate (mm/rev) | General Starting Recommendation |
|---|---|---|---|
| 3–4 | 0.05–0.10 | 0.08–0.15 | Start at 0.08 mm/rev, adjust for chip formation |
| 5–8 | 0.10–0.15 | 0.15–0.25 | Start at 0.12 mm/rev, monitor for chatter |
| 10–12 | 0.15–0.25 | 0.25–0.40 | Start at 0.20 mm/rev, increase if tool life permits |
| 16–20 | 0.20–0.35 | 0.35–0.60 | Start at 0.30 mm/rev, adjust based on rigidity |
| 25+ | 0.30–0.50 | 0.50–0.80 | Start at 0.40 mm/rev, use rigid toolholding |
Feed rate is often the most underutilised parameter in stainless steel drilling. Many machinists feed too slowly, which causes work hardening and excessive heat. Increasing feed rate—while maintaining proper cutting speed—often improves tool life and hole quality. Start conservatively and increase feed gradually while monitoring chip formation and tool condition.
HSS vs Carbide for Stainless Steel
The choice between HSS (High-Speed Steel) and carbide drills has significant implications for your operation. Each has distinct advantages and trade-offs.
Tool Life
Carbide drills typically deliver 5–10 times longer tool life than HSS in stainless steel applications. This extended life reduces tool changes, downtime, and overall tooling costs, particularly in production environments.
Productivity
Carbide drills can run at much higher cutting speeds than HSS, reducing cycle times significantly. For high-volume drilling, carbide's speed advantage translates directly to increased throughput and lower per-unit costs.
Heat Resistance
Carbide maintains hardness at much higher temperatures than HSS. This superior heat resistance is critical when drilling stainless steel, where heat generation is a constant challenge. Carbide can handle the extreme temperatures without softening or losing edge sharpness.
Cost Considerations
Carbide drills cost significantly more upfront than HSS. However, when you factor in extended tool life and reduced cycle times, carbide often delivers lower cost-per-hole, especially in production runs. For occasional drilling or one-off jobs, HSS may be more economical.
Hole Quality
Carbide's superior hardness and edge retention produce cleaner, more accurate holes with better surface finish. This is particularly valuable in precision engineering and CNC drilling applications where dimensional accuracy is critical.
HSS vs Carbide Comparison
| Factor | HSS | Carbide |
|---|---|---|
| Tool Life | Moderate (baseline) | 5–10× longer |
| Cutting Speed | 15–30 m/min | 60–120 m/min |
| Cycle Time | Longer | Significantly shorter |
| Heat Resistance | Good to 600°C | Excellent to 1000°C+ |
| Initial Cost | Low | High |
| Cost per Hole (Production) | Higher | Lower |
| Hole Quality | Good | Excellent |
| Rigidity Required | Moderate | High |
| Best For | One-off jobs, manual machines | Production runs, CNC machines |
Common Drilling Problems and Solutions
Even with the right speeds and feeds, drilling stainless steel can present challenges. Here's a troubleshooting guide to help you diagnose and solve common problems.
| Problem | Likely Cause | Recommended Solution |
|---|---|---|
| Work Hardening (drill slips, material hardens ahead of tool) | Cutting speed too low; inadequate feed rate | Increase cutting speed by 20–30%; increase feed rate; ensure sharp tooling |
| Drill Breakage (sudden fracture) | Feed rate too high; chatter; inadequate coolant; dull tool | Reduce feed rate; improve machine rigidity; increase coolant flow; replace dull drill |
| Excessive Wear (rapid flank wear) | Cutting speed too high; inadequate coolant; poor chip evacuation | Reduce cutting speed slightly; improve coolant delivery; use through-coolant drills |
| Poor Hole Finish (rough, torn edges) | Dull tool; inadequate feed; work hardening | Replace drill; increase feed rate; optimise cutting speed; use sharp carbide drills |
| Oversized Holes (hole diameter larger than drill) | Drill deflection; inadequate rigidity; chatter | Improve machine rigidity; reduce overhang; use shorter drills; reduce feed rate |
| Chatter (vibration, noise, poor finish) | Inadequate rigidity; excessive overhang; dull tool; incorrect speeds/feeds | Reduce overhang; improve clamping; replace dull drill; reduce cutting speed; increase feed |
| Excessive Heat (smoke, discolouration) | Inadequate coolant; cutting speed too high; dull tool | Increase coolant flow; reduce cutting speed; replace dull drill; use through-coolant drills |
Best Practices for Drilling Stainless Steel
Beyond speeds and feeds, several best practices will significantly improve your results when drilling stainless steel.
Use Sharp Tooling
A sharp drill is essential. Dull tools generate excessive heat, cause work hardening, and produce poor hole finish. Inspect your drills regularly and replace them as soon as you notice wear. Sharp carbide drills are worth the investment for production work.
Maintain Chip Evacuation
Stainless steel produces long, stringy chips that can wrap around the drill and cause breakage. Ensure adequate coolant flow to flush chips away from the cutting area. Through-coolant drills are particularly effective at managing chip evacuation in stainless steel.
Use Appropriate Coolant
A quality cutting fluid designed for stainless steel is essential. Soluble oils, synthetic coolants, and through-coolant systems all work well. Apply coolant generously—inadequate coolant is a primary cause of tool failure in stainless steel drilling. For manual machines, a flood coolant system is ideal; for CNC machines, through-coolant delivery is superior.
Avoid Dwell
Never pause or dwell while the drill is in contact with the workpiece. Dwelling allows heat to build up and can cause the drill to stick or break. If you need to pause, retract the drill completely and allow it to cool.
Use Rigid Setups
Machine rigidity is critical. Minimise drill overhang, use solid toolholders, and clamp workpieces securely. Chatter and vibration are common in stainless steel drilling and are often caused by inadequate rigidity. A rigid setup allows you to run higher feeds and speeds with better results.
Optimise Speeds and Feeds
Don't rely on generic recommendations. Test and adjust your speeds and feeds based on your specific machine, tooling, and workpiece. Monitor chip formation, heat generation, and tool wear. Small adjustments often yield significant improvements in tool life and hole quality.
Frequently Asked Questions
What Speed Should I Drill Stainless Steel?
Cutting speed depends on the stainless steel grade, drill type, and machine capability. As a general rule, HSS drills in 304 stainless should run at 15–20 m/min, while carbide drills can run at 60–100 m/min. Use the RPM formula to convert cutting speed to your machine's RPM setting. Start conservatively and increase speed if the drill is not generating excessive heat.
Why Do Drills Burn Out in Stainless Steel?
Stainless steel's poor thermal conductivity causes heat to build up rapidly at the cutting edge. If your cutting speed is too slow, the material work-hardens, increasing friction and heat further. If your speed is too high without adequate coolant, the tool overheats and loses hardness. The solution is to find the right balance of cutting speed, feed rate, and coolant delivery.
Is Carbide Better Than HSS?
For production drilling, carbide is superior. It delivers longer tool life, faster cycle times, and better hole quality. However, carbide costs more upfront and requires a rigid machine setup. For occasional drilling or one-off jobs, HSS may be more economical. For high-volume stainless steel drilling, carbide's advantages justify the cost.
How Do I Prevent Work Hardening?
Work hardening occurs when cutting speed is too low. The solution is to maintain adequate cutting speed—don't be afraid to run faster than you might with mild steel. Increase feed rate as well; a higher feed rate with proper speed prevents the material from hardening ahead of the drill. Use sharp tooling and ensure adequate coolant delivery.
What Coolant Should I Use?
Use a cutting fluid specifically formulated for stainless steel. Soluble oils, synthetic coolants, and through-coolant systems all work well. The key is generous application—flood the cutting area with coolant. For CNC machines with through-coolant capability, this is the best option. For manual machines, a flood coolant system or hand-applied coolant works effectively.
Can I Use the Same Speeds for All Stainless Steel Grades?
No. Different grades have different machinability. Grade 303 is the easiest to drill and can tolerate higher speeds. Grade 304 is moderate; 316 is harder and requires lower speeds. Duplex stainless steel is the hardest and demands the lowest cutting speeds. Always adjust your speeds based on the specific grade you're drilling.
What's the Difference Between Through-Coolant and Standard Carbide Drills?
Through-coolant drills have internal channels that deliver coolant directly to the cutting edge. This superior cooling and chip evacuation allows higher cutting speeds and feeds, longer tool life, and better hole quality. Standard carbide drills rely on external coolant application. For production drilling, through-coolant drills are worth the investment.
Conclusion
Drilling stainless steel successfully requires understanding the material's unique challenges and applying the right combination of cutting speed, feed rate, tooling, and coolant. The key principles are straightforward: maintain adequate cutting speed to prevent work hardening, use appropriate feed rates to manage chip formation, apply generous coolant to control heat, and invest in sharp, quality tooling.
Whether you're using HSS drills for occasional work or carbide drills for high-volume production, these guidelines will help you extend tool life, reduce cycle times, and produce quality holes. Start with the recommended speeds and feeds in this article, monitor your results, and adjust based on your specific machine and workpiece. With practice and attention to detail, you'll master the art of drilling stainless steel.
