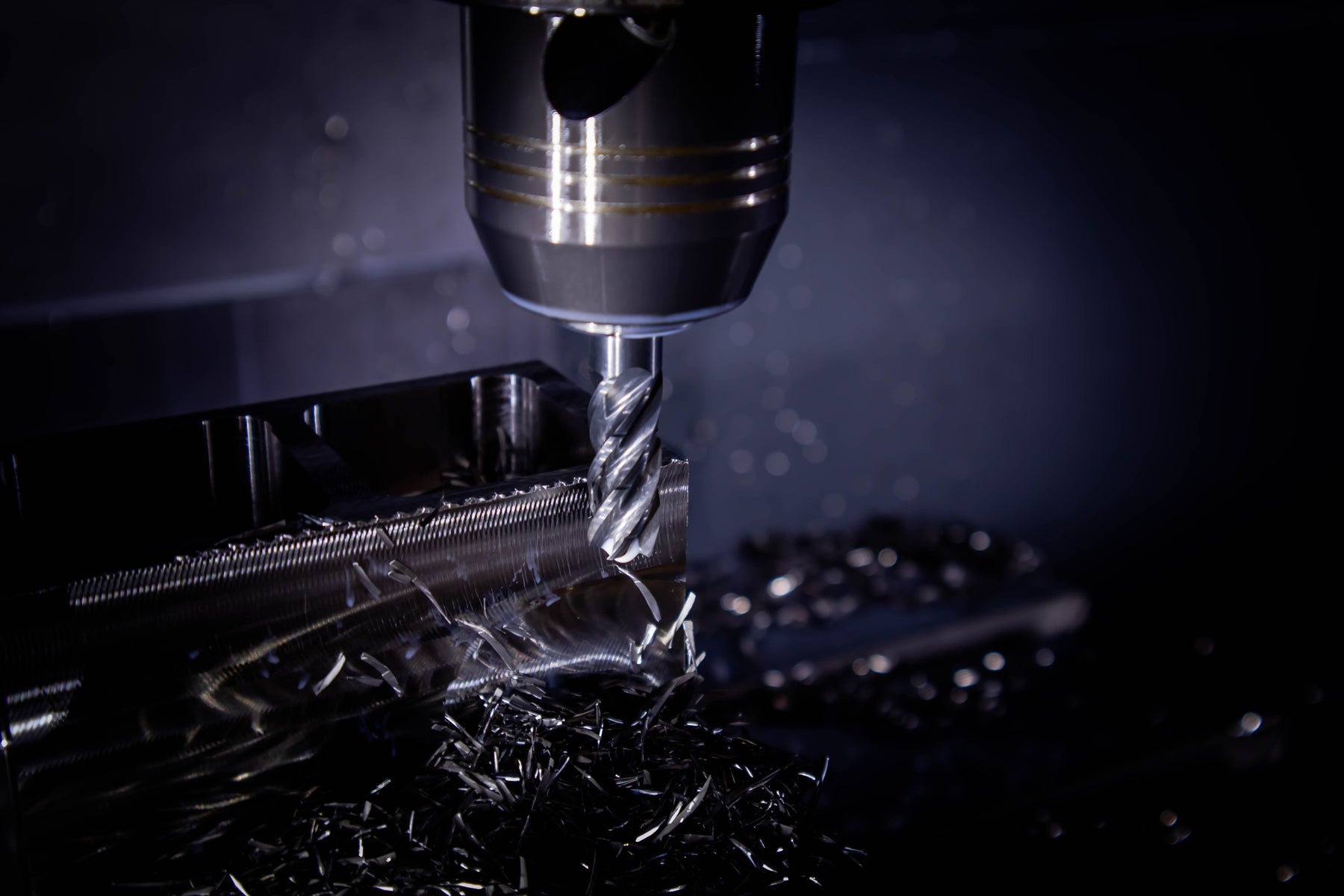

Machining 316 Stainless Steel

What Is 316 Stainless Steel?

316 stainless steel is an austenitic stainless steel alloy that contains chromium, nickel, and molybdenum. The addition of molybdenum—typically 2–3% by weight—gives 316 superior corrosion resistance compared to its cousin, 304 stainless steel, particularly in chloride-rich environments like marine settings. This makes it the material of choice for offshore equipment, food processing machinery, pharmaceutical vessels, and chemical handling systems.

The material offers excellent mechanical properties, including good tensile strength and toughness at both room temperature and elevated temperatures. However, these same properties that make 316 so valuable in service also make it considerably more challenging to machine than mild steel or aluminium.

Composition and Properties

316 stainless steel typically contains approximately 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and the balance iron with trace elements. This composition delivers outstanding corrosion resistance, particularly against pitting and crevice corrosion in seawater and other aggressive environments. The austenitic crystal structure provides excellent ductility and impact resistance, even at low temperatures.

Comparison: 304 vs 316 Stainless Steel

Property	304 Stainless Steel	316 Stainless Steel
Corrosion Resistance	Good in most environments	Superior, especially in chloride environments
Marine Suitability	Limited; prone to pitting	Excellent; designed for seawater
Cost	Lower	Higher (molybdenum addition)
Tensile Strength	~515 MPa	~515 MPa (similar)
Machinability	Slightly easier	More challenging; higher work hardening
Typical Applications	Kitchen equipment, general industrial	Marine, pharmaceutical, chemical processing

Why Is 316 Stainless Steel Difficult to Machine?

Machinists often describe 316 stainless steel as "gummy" or "sticky"—and for good reason. Several material properties combine to make it significantly more challenging to machine than carbon steel or aluminium.

High Toughness and Work Hardening

The austenitic crystal structure of 316 gives it exceptional toughness and ductility. While this is excellent for the finished component, it means the material resists cutting and deforms plastically rather than breaking cleanly. As the tool cuts, the material ahead of the cutting edge work hardens rapidly, becoming even harder and more difficult to cut. This creates a vicious cycle: harder material requires more force, which generates more heat, which accelerates tool wear.

Low Thermal Conductivity

316 stainless steel has thermal conductivity roughly one-quarter that of mild steel. This means heat generated at the cutting edge cannot dissipate quickly into the workpiece. Instead, heat concentrates at the tool-chip interface, dramatically reducing tool life and increasing the risk of tool failure.

Built-Up Edge Formation

The combination of high toughness, low thermal conductivity, and work hardening creates ideal conditions for built-up edge (BUE) formation. Chips weld themselves to the cutting tool, creating a secondary cutting edge that is unstable and produces poor surface finish. As the BUE grows and breaks away, it can damage the primary cutting edge.

Poor Chip Control

Long, stringy chips are common when machining 316. These chips can wrap around the tool, the workpiece, or the spindle, creating safety hazards and interrupting the cutting process. Interrupted cuts and chip recutting accelerate tool wear and create surface finish problems.

Common Machining Problems with 316 Stainless Steel

Work-Hardened Surfaces

Problem: Subsequent operations encounter a hardened surface layer that dulls tools rapidly and produces poor finish.

Solution: Use adequate feed rates and avoid light, hesitant cuts. Ensure the tool is sharp and engaged properly. Consider using a finishing pass with optimised parameters to produce a clean surface.

Excessive Heat Generation

Problem: Tool temperature rises rapidly, leading to premature flank wear, crater wear, and potential tool failure.

Solution: Reduce cutting speed, increase feed rate (to maintain chip thickness), and ensure flood or through-tool coolant delivery. High-pressure coolant systems are particularly effective.

Built-Up Edge

Problem: Material welds to the cutting edge, creating an unstable secondary edge and poor surface finish.

Solution: Increase cutting speed slightly (if heat permits), maintain sharp tooling, and ensure adequate coolant delivery. Some machinists find that slightly increasing feed rate helps break the BUE.

Poor Chip Control

Problem: Long, stringy chips wrap around tools and workpieces, creating safety hazards and interrupting cuts.

Solution: Use chip breakers on indexable inserts. For solid tools, consider peck drilling or interrupted cutting strategies. Ensure adequate coolant to help break and flush chips.

Reduced Tool Life

Problem: Tools wear out much faster than expected, increasing downtime and cost.

Solution: Use carbide tooling with appropriate coatings, optimise speeds and feeds, ensure machine rigidity, and maintain sharp tools. Replace tools before they become dull.

Surface Finish Issues

Problem: Rough, inconsistent surface finish due to work hardening, BUE, or poor chip control.

Solution: Use sharp carbide tooling, optimise cutting parameters, ensure adequate coolant, and consider a dedicated finishing pass with lower speeds and higher feeds.

Best Cutting Tools for 316 Stainless Steel

Solid Carbide Drills

Solid carbide drills are the preferred choice for drilling 316 stainless steel. Carbide's superior hardness and heat resistance allow higher cutting speeds than HSS, reducing cycle time and heat generation. Look for drills with:

• Optimised flute geometry designed for stainless steel
• Through-coolant capability for maximum heat control
• Appropriate point angle (typically 118° to 135° for stainless)
• Coatings such as TiAlN or AlTiN for extended tool life

Solid Carbide End Mills

Solid carbide end mills with stainless-specific geometries deliver superior performance for milling operations. Key features include:

• Chip-breaker flute design to manage long chips
• Optimised helix angle for stainless steel (typically 35–45°)
• Adequate flute spacing to prevent chip packing
• PVD or CVD coatings for heat and wear resistance

Indexable Inserts

Indexable tooling offers excellent value for production runs. Stainless-specific inserts feature:

• Chip-breaker geometries to control chip formation
• Appropriate nose radius and edge geometry
• Coatings optimised for stainless steel machining
• Easy tool changes to minimise downtime

Coating Recommendations

TiAlN (Titanium Aluminium Nitride): Excellent heat resistance and hardness. Ideal for high-speed machining of stainless steel. Provides good crater wear resistance.

AlTiN (Aluminium Titanium Nitride): Superior oxidation resistance at high temperatures. Excellent for stainless steel, particularly at higher cutting speeds.

Advanced PVD Coatings: Multi-layer coatings combining TiAlN, AlTiN, and other elements offer superior performance for demanding stainless steel applications.

Tool Comparison Table

Tool Type	Advantages	Limitations	Best Application
Solid Carbide Drills	High speed capability, excellent heat resistance, through-coolant options	Higher initial cost, requires rigid setup	Production drilling, deep holes, high-volume runs
Solid Carbide End Mills	Superior finish, high speed capability, excellent for complex profiles	Higher cost, requires rigid machine and setup	CNC milling, finishing passes, complex geometries
Indexable Inserts	Lower cost per edge, quick tool changes, excellent for production	Requires compatible toolholder, less suitable for small features	Production turning, facing, high-volume runs
HSS Tools	Low cost, suitable for manual machines, forgiving of setup errors	Much lower speed capability, rapid tool wear, longer cycle times	Manual machines, one-off jobs, when carbide tooling unavailable

Drilling 316 Stainless Steel

Drill Geometry and Selection

Choose drills specifically designed for stainless steel machining. These typically feature:

• Point angle of 118° to 135° (wider than standard 118° drills)
• Optimised flute geometry to manage chip evacuation
• Adequate web thickness for rigidity
• Through-coolant capability where possible

Feed Pressure and Speed

Maintain adequate feed pressure to prevent work hardening. Light, hesitant drilling creates a work-hardened surface that dulls the tool rapidly. Use the following general approach:

• Start with moderate speed (typically 40–80 m/min for carbide, depending on drill diameter)
• Apply steady, consistent feed pressure
• Increase feed rate rather than speed if heat becomes excessive
• Monitor for built-up edge; if present, increase speed slightly

Through-Coolant Advantages

Through-coolant drilling delivers coolant directly to the cutting edge, dramatically improving heat control and chip evacuation. Benefits include:

• Significantly extended tool life
• Faster drilling speeds possible
• Better chip control and evacuation
• Improved surface finish in the drilled hole
• Reduced risk of work hardening

If your machine supports through-coolant capability, it is well worth the investment for stainless steel drilling.

Peck Drilling Considerations

Peck drilling (rapid retraction and re-engagement) helps break long chips and clear the hole. However, avoid excessive pecking, which can create work-hardened surfaces and interrupt the cutting process. Use peck drilling when:

• Drilling deep holes (depth greater than 3–5 times the drill diameter)
• Chip evacuation is poor
• Through-coolant is not available

Typical peck depth is 1–2 times the drill diameter. Retract fully to clear chips, then re-engage with steady feed pressure.

Troubleshooting Drilling Problems

Drill breakage: Reduce feed rate, ensure machine rigidity, check for runout, and avoid sudden changes in feed pressure.

Poor hole finish: Use a sharp drill, increase speed slightly, ensure adequate coolant, and consider a finishing pass with a reamer.

Slow drilling: Increase feed rate (not speed), ensure adequate coolant, and check that the drill is sharp.

Work-hardened hole: Maintain consistent feed pressure, avoid light cuts, and use sharp tooling.

Milling 316 Stainless Steel

Climb Milling Advantages

Climb milling (where the cutter rotates into the workpiece) offers several advantages for stainless steel:

• Reduced cutting forces and tool deflection
• Better surface finish
• Lower heat generation
• Reduced work hardening

Climb milling requires a rigid machine with minimal backlash. Most modern CNC mills support climb milling safely. Avoid climb milling on manual machines or machines with significant backlash, as tool breakage can result.

Tool Engagement and Chip Thickness

Maintain consistent chip thickness throughout the cut. Varying chip thickness causes interrupted cutting, which accelerates tool wear and produces poor finish. Strategies include:

• Use constant surface speed (CSS) on turning operations to maintain chip thickness as diameter changes
• Optimise tool path to avoid sudden changes in engagement
• Use appropriate feed per tooth to maintain chip thickness
• Avoid light, hesitant cuts that create work hardening

Tool Path Optimisation

Plan tool paths to minimise heat generation and tool wear:

• Use ramping or helical entry rather than plunging to reduce shock loads
• Avoid sudden changes in cutting direction
• Plan roughing and finishing passes separately
• Use appropriate stepover distances to maintain chip thickness
• Consider adaptive feed strategies on modern CNC machines

Heat Management in Milling

Flood coolant is essential for milling 316 stainless steel. High-pressure coolant systems (typically 20–40 bar) deliver coolant directly to the cutting edge, dramatically improving performance. Benefits include:

• Superior heat control
• Better chip evacuation
• Extended tool life
• Faster cutting speeds possible
• Improved surface finish

Recommended Speeds and Feeds for 316 Stainless Steel

The following table provides general guidance for cutting parameters. Always adjust parameters based on your specific machine, tooling, coolant system, and setup conditions. Consult tooling manufacturer recommendations for your specific tools.

Operation	Tool Type	Speed (m/min)	Feed (mm/tooth or mm/rev)	Notes
Drilling (Ø 6–10 mm)	Carbide, TiAlN coated	50–80	0.10–0.20 mm/rev	Increase with through-coolant; reduce for manual machines
Drilling (Ø 10–20 mm)	Carbide, TiAlN coated	40–60	0.15–0.30 mm/rev	Maintain steady feed; avoid light cuts
End Milling (Roughing)	Carbide, AlTiN coated	60–100	0.10–0.20 mm/tooth	Use flood or high-pressure coolant; climb milling preferred
End Milling (Finishing)	Carbide, AlTiN coated	80–120	0.05–0.10 mm/tooth	Higher speed, lower feed for superior finish
Turning (Roughing)	Carbide insert, TiAlN	80–120	0.20–0.40 mm/rev	Use flood coolant; monitor for BUE
Turning (Finishing)	Carbide insert, TiAlN	100–150	0.10–0.20 mm/rev	Higher speed, lower feed for superior finish
Tapping	Carbide or HSS tap	10–20	1 × pitch (synchronized)	Use cutting fluid; reduce speed for manual tapping

Important Disclaimer: These parameters are general guidelines only. Actual cutting speeds and feeds must be adjusted based on:

• Machine rigidity and condition
• Coolant delivery system (flood vs. through-tool)
• Tool geometry and coating
• Workpiece setup and clamping
• Desired surface finish
• Tooling manufacturer recommendations

Always consult your tooling supplier's recommendations and start conservatively, then increase speeds and feeds as conditions permit.

Coolant and Heat Management

Flood Coolant Systems

Flood coolant is the minimum requirement for machining 316 stainless steel. A good flood coolant system delivers coolant continuously to the cutting zone, removing heat and flushing chips. Benefits include:

• Significant heat reduction at the cutting edge
• Extended tool life
• Improved chip evacuation
• Better surface finish

Ensure your coolant system delivers adequate flow and pressure. Stagnant or insufficient coolant is nearly as bad as no coolant at all.

Through-Tool Coolant Systems

Through-tool (or through-spindle) coolant delivery is superior to flood coolant for stainless steel machining. Coolant is delivered directly through the tool to the cutting edge, providing:

• Maximum heat control
• Superior chip evacuation
• Significantly extended tool life
• Ability to use higher cutting speeds
• Reduced coolant consumption

If your machine supports through-tool coolant, it is a worthwhile investment for production stainless steel work.

High-Pressure Coolant Systems

High-pressure coolant systems (typically 20–40 bar) deliver coolant with significant force, penetrating the cutting zone and breaking chips effectively. Benefits include:

• Excellent heat control
• Superior chip breaking and evacuation
• Extended tool life and higher speeds possible
• Improved surface finish
• Reduced tool breakage risk

High-pressure systems are particularly valuable for production runs and complex geometries.

Coolant Selection

Use a high-quality cutting fluid formulated for stainless steel. Soluble oil (water-based) coolants are common and effective. Key properties include:

• Good heat transfer capability
• Effective lubricity to reduce friction and BUE
• Rust inhibitors to protect the workpiece and machine
• Stability and resistance to bacterial growth
• Easy cleanup and disposal

Maintain coolant concentration and cleanliness. Degraded or contaminated coolant loses effectiveness and can cause corrosion and tool wear.

How to Prevent Work Hardening in 316 Stainless Steel

Work hardening is one of the most significant challenges when machining 316 stainless steel. A work-hardened surface layer is extremely difficult to machine in subsequent operations, dulling tools rapidly and producing poor finish. Here are practical strategies to prevent it:

Maintain Adequate Feed Rates

Light, hesitant cuts are the primary cause of work hardening. The tool must remove material decisively. Use adequate feed pressure and feed rate to ensure the tool is cutting, not rubbing. If the tool is rubbing, it work hardens the surface without removing material effectively.

Avoid Dwell Marks

Dwell marks occur when the tool pauses or moves slowly over the surface, creating a work-hardened band. Avoid this by:

• Maintaining constant feed rate throughout the cut
• Using ramping or helical entry rather than plunging
• Avoiding sudden changes in cutting direction
• Planning tool paths to minimise tool engagement changes

Use Sharp Tooling

Dull tools require higher cutting forces and generate more heat, accelerating work hardening. Replace tools before they become noticeably dull. Sharp tools cut cleanly and efficiently, minimising work hardening.

Optimise Cutting Parameters

Use appropriate speeds and feeds for your specific operation. Too-low speeds cause rubbing and work hardening. Too-high speeds generate excessive heat. Find the balance that allows efficient cutting with good heat control.

Ensure Machine Rigidity

A rigid machine setup allows higher feed rates and better cutting efficiency. Loose setups, worn spindle bearings, or inadequate workpiece clamping force the tool to cut lightly, promoting work hardening. Inspect and maintain your machine regularly.

Infographic: 5 Steps to Prevent Work Hardening in 316 Stainless Steel

5 Steps to Prevent Work Hardening

1. Maintain Adequate Feed Rates — Use decisive cutting pressure; avoid light, hesitant cuts

2. Use Sharp Tooling — Replace tools before they become dull; sharp tools cut cleanly

3. Optimise Cutting Parameters — Balance speed and feed for efficient cutting and heat control

4. Ensure Machine Rigidity — Inspect spindle, bearings, and clamping; minimise deflection

5. Avoid Dwell Marks — Maintain constant feed; use ramping entry; plan smooth tool paths

Carbide vs HSS for 316 Stainless Steel

The choice between carbide and high-speed steel (HSS) tooling has significant implications for productivity, tool life, and cost. Here is a detailed comparison:

Factor	Carbide	HSS
Tool Life	Excellent; 5–10× longer than HSS	Poor; rapid wear on 316 stainless
Speed Capability	High; 50–150 m/min typical	Low; 10–30 m/min typical
Heat Resistance	Superior; maintains hardness at high temperature	Limited; softens above ~600°C
Surface Finish	Excellent; sharp edge, minimal BUE	Poor; dull quickly, excessive BUE
Productivity	High; faster cycle times, fewer tool changes	Low; slow speeds, frequent tool changes
Initial Cost	Higher per tool	Lower per tool
Cost per Part	Lower; extended tool life and faster speeds	Higher; frequent tool changes and slow speeds
Machine Rigidity Required	High; requires rigid setup	Lower; more forgiving of deflection
Suitable For	CNC machines, production runs, high-volume work	Manual machines, one-off jobs, when carbide unavailable

Recommendation

For 316 stainless steel, carbide tooling is strongly recommended. While the initial cost is higher, the extended tool life, faster speeds, and superior surface finish result in lower cost per part and significantly improved productivity. HSS is acceptable only for manual machines or one-off jobs where carbide tooling is unavailable or uneconomical.

Frequently Asked Questions

Is 316 stainless steel harder to machine than 304?

Yes, 316 is more difficult to machine than 304. The addition of molybdenum increases work hardening tendency and heat generation. However, the difference is not dramatic—both require careful attention to speeds, feeds, and coolant. The same general strategies apply to both materials.

What is the best drill for 316 stainless steel?

A solid carbide drill with stainless-specific geometry, TiAlN or AlTiN coating, and through-coolant capability is ideal. Look for drills with optimised flute geometry and point angle (118–135°) designed specifically for stainless steel. Brands such as Sandvik, Iscar, and Kennametal offer excellent options.

Can HSS tools machine 316 stainless steel?

Yes, HSS tools can machine 316 stainless steel, but with significant limitations. Cutting speeds must be very low (10–30 m/min), tool life is short, and surface finish is often poor. HSS is acceptable for manual machines or one-off jobs, but carbide is strongly preferred for any production work.

Why does 316 stainless steel work harden?

316 stainless steel work hardens because of its austenitic crystal structure, which is highly ductile and tough. When the cutting tool deforms the material, it doesn't break cleanly—instead, it plastically deforms and becomes harder. This is exacerbated by low thermal conductivity (heat concentrates at the cutting edge) and high toughness (material resists cutting).

What cutting fluid works best for 316 stainless steel?

A high-quality soluble oil (water-based) coolant formulated for stainless steel is ideal. Key properties include good heat transfer, lubricity, rust inhibition, and stability. Brands such as Mobil, Shell, and Castrol offer excellent stainless-specific coolants. Ensure adequate coolant flow and concentration for best results.

Key Takeaways for Successful 316 Stainless Steel Machining

Machining 316 stainless steel is challenging, but with the right approach, you can achieve excellent results and extend tool life significantly:

• Use carbide tooling: Carbide's superior hardness and heat resistance are essential for efficient 316 machining. The higher initial cost is offset by extended tool life and faster speeds.
• Optimise speeds and feeds: Avoid light, hesitant cuts. Maintain adequate feed rates to prevent work hardening. Balance speed and feed to manage heat generation.
• Prioritise coolant delivery: Flood coolant is essential; through-tool or high-pressure systems are superior. Proper coolant management is critical for heat control and tool life.
• Maintain machine rigidity: A rigid setup allows higher feed rates and better cutting efficiency. Inspect and maintain your machine regularly.
• Use sharp tools: Replace tools before they become dull. Sharp tools cut cleanly and efficiently, minimising work hardening and heat generation.
• Plan tool paths carefully: Avoid dwell marks, sudden changes in engagement, and light cuts. Use ramping or helical entry where possible.
• Monitor for built-up edge: If BUE forms, increase speed slightly or ensure adequate coolant. Sharp tooling and proper parameters minimise BUE.
• Manage chip control: Use chip breakers on indexable inserts. For solid tools, consider peck drilling or interrupted cutting strategies.

Conclusion

316 stainless steel is one of the most challenging materials to machine, but it is also one of the most important. Its superior corrosion resistance makes it essential for marine, pharmaceutical, food processing, and chemical applications. By understanding the material's properties, selecting appropriate tooling, optimising cutting parameters, and managing heat effectively, you can machine 316 stainless steel efficiently and achieve excellent results.

The investment in quality carbide tooling, proper coolant systems, and careful process planning pays dividends in extended tool life, faster cycle times, and superior surface finish. Whether you are a CNC operator, workshop owner, or maintenance technician, these strategies will help you master 316 stainless steel machining.

Ready to upgrade your tooling and machining processes? Browse True Tooling's comprehensive range of carbide drills, end mills, and indexable inserts designed specifically for stainless steel machining. Our expert team can help you select the right tools for your application and provide guidance on optimising your machining parameters.
