Machining 304 Stainless Steel

What Is 304 Stainless Steel?

304 stainless steel is an austenitic stainless steel alloy containing approximately 18% chromium and 8% nickel. This composition gives it exceptional corrosion resistance, making it one of the most widely used stainless grades across the world. You'll find 304 in food processing equipment, pharmaceutical vessels, marine hardware, architectural cladding, chemical tanks and general industrial fabrication.

The alloy offers excellent toughness and strength at both room temperature and elevated temperatures. Its non-magnetic properties and ability to resist oxidation in most environments make it the go-to choice for applications where appearance and durability matter. However, these same properties that make 304 so valuable in service also make it notoriously challenging to machine.

Why Is 304 Stainless Steel Difficult to Machine?

Despite its popularity, 304 stainless steel presents several machining challenges that frustrate even experienced operators. Understanding these difficulties is the first step toward solving them.

Work Hardening: 304 stainless steel exhibits severe work hardening during machining. When the material is cut, deformed or rubbed by a tool, the surface layer becomes significantly harder than the bulk material. If you allow a dull tool to rub rather than cut, the work-hardened layer can become so hard that subsequent passes become nearly impossible. This is one of the most common problems in the workshop.

Heat Generation: Stainless steel has poor thermal conductivity compared to mild steel or aluminium. Heat generated during cutting doesn't dissipate quickly into the workpiece or chips, so it concentrates at the tool-chip interface. This accelerates tool wear and can cause the tool to soften or fail prematurely.

Stringy Chips: 304 produces long, stringy chips that don't break easily. These chips wrap around the tool, the spindle or the workpiece, creating safety hazards and poor surface finish. Chip control is critical.

Poor Thermal Conductivity: The same property that causes heat buildup also means coolant struggles to carry heat away from the cutting zone efficiently.

Common Problems When Machining 304 Stainless Steel

Work-Hardened Surfaces: You'll notice this when subsequent cuts become increasingly difficult, or when a hole drilled in 304 becomes nearly impossible to tap. The surface has hardened so much that tools bounce or skate rather than cut.

Premature Tool Wear: Carbide tools can wear out in minutes if speeds and feeds are incorrect or if coolant is inadequate. The tool edge becomes rounded or chipped.

Built-Up Edge (BUE): Material welds itself to the tool edge, creating a larger effective tool geometry. This degrades surface finish and accelerates tool failure.

Poor Surface Finish: Rough, torn or discoloured surfaces are common when machining parameters are wrong or tools are dull.

Excessive Heat: The workpiece becomes hot to touch, and the tool may discolour or fail. This indicates inadequate coolant or excessive cutting forces.

Chip Control Issues: Long chips tangle around the tool or workpiece, creating safety risks and requiring frequent manual clearing.

Best Cutting Tools for 304 Stainless Steel

Selecting the right tool is non-negotiable when machining 304. The wrong tool choice will result in frustration, wasted time and poor results.

Solid Carbide Drills: Carbide drills are essential for 304 stainless steel. They maintain hardness at high temperatures and allow faster cutting speeds than high-speed steel (HSS). Look for drills with a 135-degree split point or parabolic flute geometry designed for stainless steel. Coated carbide drills with TiAlN or AlTiN coatings offer superior performance.

Carbide End Mills: Solid carbide end mills with appropriate flute geometry are far superior to HSS for 304. Multi-flute designs (typically 2 or 3 flutes) work better than single-flute tools because they distribute cutting forces and improve chip evacuation. Corner radius end mills reduce stress concentration and improve tool life.

Indexable Tooling: For production runs, indexable inserts offer excellent value. Inserts designed specifically for stainless steel machining provide consistent performance and quick tool changes.

Coated vs Uncoated: Coated carbide tools outperform uncoated carbide for stainless steel. TiAlN (titanium aluminium nitride) and AlTiN (aluminium titanium nitride) coatings provide heat resistance and reduce friction. These coatings can extend tool life by 2–3 times compared to uncoated carbide.

Cutting Tool Comparison Table

Tool Type	Advantages	Limitations	Best For
Solid Carbide Drills (Coated)	High speed capability, excellent tool life, sharp cutting edge	Higher cost, requires rigid setup	Production drilling, tight tolerances
Carbide End Mills (2–3 Flute)	Fast cutting, good chip evacuation, superior finish	Cost, requires adequate coolant	Milling, profiling, CNC work
Indexable Inserts (Stainless Grade)	Quick tool changes, consistent performance, economical	Requires compatible toolholder	Production turning, facing, grooving
HSS Tools (Uncoated)	Low cost, forgiving on rigid setups	Slow speeds, poor tool life, poor finish	Manual machines, one-off jobs only

Drilling 304 Stainless Steel

Drilling is often the first operation on a 304 workpiece, and getting it right sets the tone for all subsequent machining.

Drill Selection: Always use a solid carbide drill with a 135-degree split point or parabolic geometry. The split point reduces thrust force and prevents walking. Avoid standard 118-degree point drills—they require excessive force and generate excessive heat.

Constant Feed Pressure: Maintain steady, consistent feed pressure throughout the hole. Hesitation or reduced feed allows the tool to rub, which work-hardens the surface and accelerates wear. A dull tool rubbing on work-hardened 304 is nearly impossible to clear.

Avoid Rubbing: If the drill is rubbing rather than cutting, you'll hear a high-pitched squeal and see discolouration. Stop immediately, withdraw the drill and check sharpness. A dull drill will only make things worse.

Coolant Considerations: Use flood coolant or through-tool coolant if available. Coolant serves two purposes: it cools the tool and helps evacuate chips. Without adequate coolant, heat buildup will destroy the drill in seconds.

Peck Drilling: For deep holes, use peck drilling—advance the drill, retract fully to clear chips, then repeat. This breaks up stringy chips and allows coolant to reach the cutting edge. Typical peck depth is 1–2 times the drill diameter.

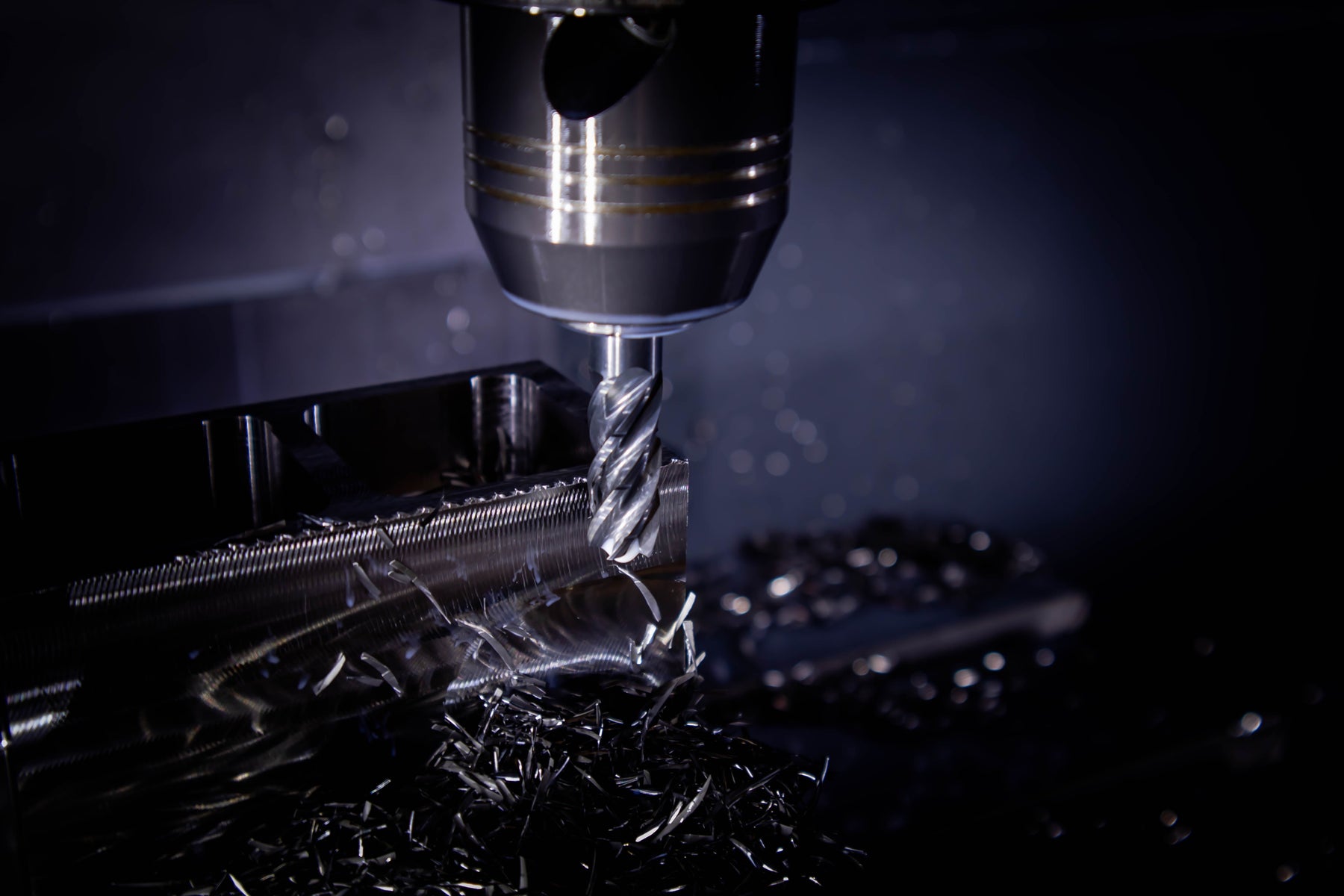

Milling 304 Stainless Steel

Milling 304 requires attention to tool engagement, chip evacuation and cutting forces.

Climb Milling vs Conventional Milling: Conventional (up) milling is generally safer for manual machines because it doesn't pull the workpiece into the cutter. However, CNC machines with backlash compensation can use climb (down) milling, which produces superior surface finish and reduces tool wear. Choose based on your machine's rigidity and control system.

Tool Engagement: Ensure the end mill is fully engaged in the cut. Rubbing or partial engagement work-hardens the surface without removing material efficiently. A sharp tool cutting decisively is always better than a dull tool rubbing.

Radial and Axial Depths of Cut: For 304, use moderate depths. Radial depth (width of cut) should typically be 30–50% of the tool diameter. Axial depth (depth of cut) should be 1–3 times the tool diameter, depending on machine rigidity. Lighter cuts with faster feeds often work better than heavy cuts with slow feeds.

Chip Evacuation: Ensure chips are evacuating freely. If chips are packing around the tool, reduce feed rate or increase spindle speed slightly. Stringy chips are normal for 304, but they should break and clear.

Tool Path Strategies: For CNC work, use climb milling where possible. Maintain constant tool engagement and avoid sudden direction changes that shock the tool. Ramping into cuts rather than plunging reduces impact.

Recommended Speeds and Feeds for 304 Stainless Steel

These are starting points. Always adjust based on your machine, coolant, tool condition and workpiece setup.

Tool Type	Spindle Speed (RPM)	Feed Rate	Notes
Carbide Drill (3–6 mm)	800–1200	0.05–0.10 mm/rev	Use peck drilling; reduce speed if heat builds up
Carbide Drill (6–12 mm)	600–900	0.08–0.15 mm/rev	Maintain steady feed; avoid hesitation
Carbide End Mill (2–3 flute)	600–1200	0.05–0.15 mm/tooth	Adjust for machine rigidity; use flood coolant
Indexable Insert (Turning)	200–400	0.15–0.30 mm/rev	Follow insert manufacturer recommendations

Important: These are guidelines only. Always consult your tool manufacturer's recommendations and adjust based on actual results. If the tool is overheating, reduce speed. If finish is poor, increase speed or check tool sharpness.

Coolant and Lubrication Considerations

Coolant is not optional when machining 304—it's essential.

Flood Coolant: Full flood coolant is ideal. It cools the tool, lubricates the cutting edge and helps evacuate chips. Use a soluble oil or synthetic coolant formulated for stainless steel. Avoid chlorinated coolants on 304 if possible, as chlorine can promote pitting in certain conditions.

Through-Tool Coolant: If your machine supports it, through-tool coolant delivery is superior. It delivers coolant directly to the cutting edge, maximising cooling and chip evacuation.

Mist Systems: Mist cooling is less effective for 304 than flood, but it's better than dry machining. Use a quality mist system with appropriate coolant concentration.

Heat Management: Monitor workpiece temperature. If it becomes too hot to touch, coolant flow is inadequate or spindle speed is too high. Reduce speed and increase coolant flow.

Tool Life Extension: Proper coolant can extend carbide tool life by 50–100% compared to dry machining. The investment in coolant pays for itself quickly through reduced tool consumption.

How to Prevent Work Hardening

Work hardening is the biggest enemy when machining 304. Here's how to prevent it:

Maintain Feed Rates: Never reduce feed rate mid-cut. Slow feed allows rubbing, which work-hardens the surface. If you must slow down, withdraw the tool completely and restart with fresh material.

Avoid Dwell Times: Don't let the tool sit in the workpiece without moving. Even a few seconds of contact without cutting will work-harden the surface.

Keep Tools Sharp: A sharp tool cuts decisively and doesn't rub. Dull tools are the primary cause of work hardening. Replace or resharpen tools frequently.

Use Appropriate Cutting Parameters: Follow the speeds and feeds table above. Incorrect parameters lead to rubbing and work hardening.

Ensure Machine Rigidity: A rigid setup reduces vibration and chatter, which cause rubbing and work hardening. Secure the workpiece firmly and minimise tool overhang.

Preventing Work Hardening: Quick Reference Workflow

Step 1: Select sharp carbide tool appropriate for the operation
Step 2: Set spindle speed and feed rate according to tool manufacturer recommendations
Step 3: Ensure adequate coolant flow before starting
Step 4: Engage the tool with steady, consistent feed pressure
Step 5: Monitor for signs of rubbing (squealing, discolouration, excessive heat)
Step 6: If rubbing occurs, stop immediately and inspect tool sharpness
Step 7: Replace or resharpen tool before continuing

Carbide vs HSS for 304 Stainless Steel

The choice between carbide and high-speed steel (HSS) is straightforward for 304: carbide is superior in almost every way.

Factor	Carbide	HSS
Tool Life	5–10× longer than HSS	Short; rapid wear on 304
Speed Capability	2–4× faster than HSS	Limited; 50–100 SFM typical
Surface Finish	Excellent; sharp edge maintained	Poor; edge dulls quickly
Heat Resistance	Excellent; maintains hardness at high temps	Poor; softens above 600°C
Initial Cost	Higher per tool	Lower per tool
Cost per Part	Lower due to extended tool life	Higher due to frequent tool changes
Productivity	High; faster cutting, fewer tool changes	Low; slow speeds, frequent tool changes

Verdict: For 304 stainless steel, carbide is the clear winner. Even though carbide tools cost more upfront, the extended tool life, faster cutting speeds and superior surface finish make them more economical in the long run. HSS should only be considered for one-off manual operations where tool cost is the only concern.

Frequently Asked Questions

Is 304 stainless steel hard to machine?

Yes, 304 is notoriously difficult to machine compared to mild steel or aluminium. Its poor thermal conductivity, tendency to work harden and stringy chip formation make it challenging. However, with the right tools, speeds, feeds and coolant, it can be machined successfully and productively.

What is the best drill for 304 stainless steel?

A solid carbide drill with a 135-degree split point or parabolic flute geometry, preferably coated with TiAlN or AlTiN, is ideal. Avoid standard 118-degree point drills. Use peck drilling for deep holes and maintain steady feed pressure.

Can HSS tools machine 304 stainless steel?

HSS can machine 304, but it's not recommended for production work. HSS tools wear rapidly on 304, require very slow speeds and produce poor surface finish. Carbide is far superior and more economical despite higher initial cost.

Why does 304 stainless steel work harden?

304 work hardens because of its austenitic crystal structure and low thermal conductivity. When the material is deformed or rubbed by a tool, the surface layer becomes significantly harder. This is why maintaining sharp tools and avoiding rubbing is critical.

What coating is best for machining stainless steel?

TiAlN (titanium aluminium nitride) and AlTiN (aluminium titanium nitride) coatings are excellent for stainless steel. These coatings provide heat resistance, reduce friction and extend tool life significantly compared to uncoated carbide.

Conclusion

Machining 304 stainless steel is challenging, but it's entirely manageable with the right approach. The key is understanding why 304 is difficult—work hardening, heat generation, stringy chips and poor thermal conductivity—and addressing each challenge systematically.

Invest in quality carbide tooling, use appropriate speeds and feeds, maintain adequate coolant flow and keep tools sharp. These fundamentals will transform your 304 machining from frustrating to productive. A sharp carbide drill cutting decisively with proper coolant will outperform a dull HSS tool every time, and the tool life savings will quickly justify the investment.

Whether you're drilling, milling or turning 304, the principles remain the same: sharp tools, correct parameters, adequate coolant and machine rigidity. Master these, and you'll machine 304 confidently and efficiently.
