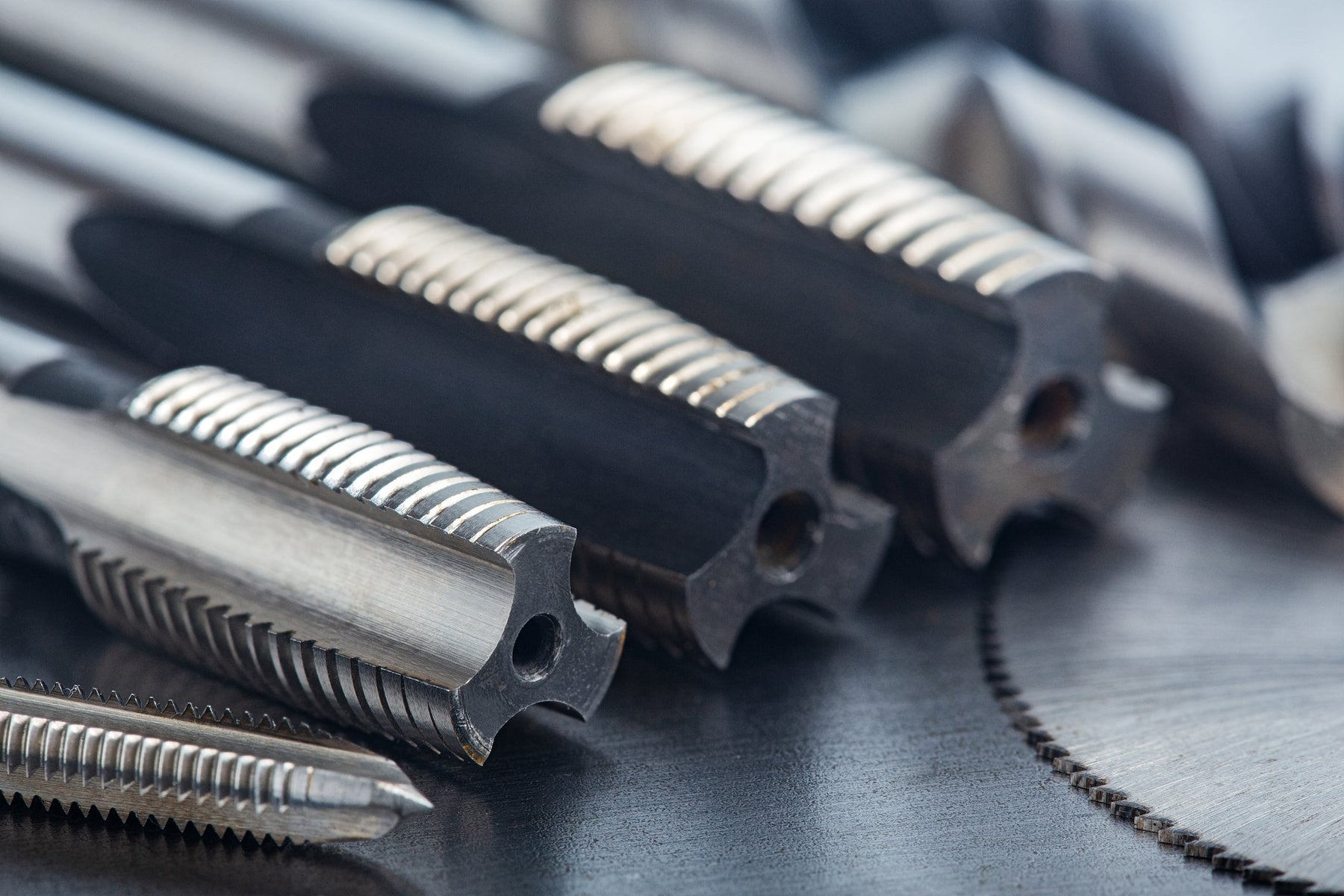

How to Choose a Tap

Selecting the right tap is one of the most critical decisions a machinist can make. The wrong choice can lead to broken tools, poor thread quality, wasted time, and costly rework. Whether you're running a CNC machine, working at a manual lathe, or tapping by hand, understanding how to choose a tap will dramatically improve your efficiency and results.

Thread tapping is a fundamental operation in any workshop, yet many machinists rely on guesswork or habit rather than a systematic approach. This guide walks you through the essential factors that influence tap selection, from material type and hole geometry to coatings and machine capability. By the end, you'll have a clear framework for choosing the right tapping tools every time.

What is a Tap?

A tap is a cutting tool designed to create internal threads inside a pre-drilled hole. It works by removing material in a controlled manner to form the precise helical grooves that make up a thread. Taps come in many styles and sizes, each optimised for different materials, hole types, and production methods.

The process of thread tapping involves rotating the tap into a hole while applying cutting fluid. As the tap advances, its cutting edges remove chips and form the thread profile. Understanding how taps work is essential to selecting the right one for your application.

Step 1: Identify the Material

Material type is the foundation of tap selection. Different materials have vastly different machinability characteristics, and choosing a tap suited to your workpiece material is critical for tool life and thread quality.

Aluminium

Aluminium is one of the easiest materials to tap. It machines cleanly and produces long, stringy chips that can wrap around the tap if not managed carefully. For aluminium, spiral flute taps are often preferred because they help evacuate chips upward and away from the cutting zone. Uncoated or TiN-coated taps work well. Use generous amounts of cutting fluid to keep temperatures low and improve chip evacuation.

Mild Steel

Mild steel is the workhorse of most workshops. It taps reliably with standard cutting taps and responds well to both hand and machine tapping. TiN or TiCN coatings extend tool life significantly. Cutting fluid is essential—use a quality sulphurised oil or soluble oil to reduce friction and heat.

Stainless Steel

Stainless steel tapping is notoriously challenging. The material is tough, work-hardens rapidly, and generates excessive heat. For stainless steel tapping, use a spiral flute tap with a TiAlN or AlTiN coating, which provides superior heat resistance. Reduce your feed rate and use plenty of cutting fluid. Many machinists prefer form taps for stainless steel because they generate less heat than cutting taps, though they require more torque.

Cast Iron

Cast iron is brittle and produces short, abrasive chips. Spiral point taps are ideal for through holes in cast iron because they push chips ahead of the tool. For blind holes, use a spiral flute tap. Cast iron doesn't require cutting fluid, though a light mist can help control dust. Uncoated taps are acceptable, but TiN coating improves tool life.

Titanium

Titanium is extremely difficult to tap. It work-hardens rapidly, generates intense heat, and can cause tap breakage if not handled carefully. Use a spiral flute tap with an AlTiN coating. Reduce speeds significantly—often to one-third the speed used for steel. Apply a high-quality cutting fluid designed for titanium and maintain consistent feed rates to avoid chatter.

High-Strength Alloys

High-strength alloys such as Inconel and tool steel require specialist taps. Use coated spiral flute taps with TiAlN or AlTiN coatings. Reduce speeds and feeds, and use premium cutting fluids. Consider form taps if your machine has sufficient torque capacity, as they often outperform cutting taps in these demanding materials.

Step 2: Determine Blind Hole or Through Hole

The type of hole you're tapping—blind or through—significantly influences tap geometry selection.

Blind Holes

A blind hole is a hole that does not pass completely through the workpiece. Tapping a blind hole is more challenging because chips cannot escape downward; they must be pushed back up and out of the hole. For blind holes, use a spiral flute tap (also called a gun tap). The flutes spiral upward, actively pulling chips out of the hole as the tap advances. This prevents chip packing, which can cause tap breakage.

Through Holes

A through hole passes completely through the workpiece, allowing chips to fall freely. For through holes, a spiral point tap (also called a gun tap with a chip-breaker) is ideal. The spiral point pushes chips ahead of the tool and out through the bottom of the hole. This geometry is faster and produces cleaner threads than a spiral flute tap in through-hole applications.

Practical Examples

If you're tapping a blind hole in an engine block, use a spiral flute tap to ensure chips are evacuated upward. If you're tapping a series of through holes in a flat plate, a spiral point tap will be faster and more efficient. Choosing the wrong geometry for your hole type is a common mistake that leads to broken taps and poor results.

Step 3: Choose Between Form Taps and Cutting Taps

Form taps and cutting taps are fundamentally different tools, each with distinct advantages and limitations.

Cutting Taps

Cutting taps remove material by shearing it away with sharp cutting edges. They produce chips and require chip evacuation. Cutting taps are the most common type and work well in most materials. They are forgiving of variations in hole size and machine rigidity. Cutting taps are ideal for hand tapping and for CNC applications where chip evacuation is manageable.

Form Taps

Form taps do not remove material; instead, they displace it, cold-working the material to form the thread. Form taps produce no chips, which is a significant advantage in blind holes and in materials prone to chip packing. However, form taps require more torque than cutting taps and demand precise hole sizing. They work best in ductile materials like aluminium, mild steel, and stainless steel. Form taps are excellent for high-volume CNC production where hole tolerances are tight and machine rigidity is assured.

Chip Control Considerations

In materials that produce long, stringy chips (such as aluminium and stainless steel), form taps can be superior because they eliminate chip management entirely. In brittle materials like cast iron, cutting taps are usually preferred because they produce short, manageable chips.

Step 4: Select the Thread Type

Thread standards vary globally, and selecting the correct standard for your application is essential for compatibility and fit.

Metric Coarse

Metric coarse threads are the most common metric standard in Europe, Australia, and Asia. They are used in the vast majority of industrial applications. If you're unsure which thread to use, metric coarse is usually the safe choice.

Metric Fine

Metric fine threads have a smaller pitch than coarse threads, resulting in more threads per unit length. They are used where a tighter fit is required or where space is limited. Fine threads are also preferred in materials prone to vibration loosening.

UNC (Unified National Coarse)

UNC is the standard coarse thread in North America. It is commonly found in imported machinery and equipment from the United States. UNC threads are slightly different from metric coarse and are not interchangeable.

UNF (Unified National Fine)

UNF is the North American fine thread standard. Like UNC, it is not interchangeable with metric fine threads.

BSP (British Standard Pipe)

BSP threads are used for pipe connections and hydraulic fittings. They are tapered and require specialist taps. BSP is still common in older British and Commonwealth equipment.

NPT (National Pipe Thread)

NPT is the North American pipe thread standard. Like BSP, NPT threads are tapered and require specialist taps. NPT and BSP are not interchangeable.

Step 5: Consider Machine vs Hand Tapping

The method you use to apply the tap—by hand or by machine—influences tap selection and technique.

Hand Taps

Hand taps are designed for manual tapping with a tap wrench. They typically have a longer flute length and are more forgiving of slight misalignment. Hand taps are ideal for small-scale work, repairs, and situations where machine tapping is not practical. Hand tapping requires skill and feel; the operator must sense when the tap is binding and adjust accordingly.

Machine Taps

Machine taps are optimised for use in a lathe, milling machine, or CNC machine. They have shorter flutes and are designed to handle the consistent feed rates and speeds that machines provide. Machine taps are faster and more consistent than hand taps but require proper machine setup and rigid fixturing.

CNC Tapping Applications

CNC tapping offers the highest precision and repeatability. Modern CNC machines can apply precise speeds, feeds, and torque limits, making them ideal for high-volume production. CNC tapping tools often include rigid tapping holders or floating tap chucks that accommodate minor variations in hole depth and machine rigidity. For CNC tapping, select taps specifically designed for machine use and ensure your machine has adequate torque capacity.

Step 6: Select the Right Coating

Tap coatings significantly extend tool life and improve performance in demanding applications. Understanding the benefits of each coating helps you make the right choice.

Uncoated

Uncoated taps are the most economical option and work well for low-volume work and soft materials like aluminium and mild steel. Uncoated taps are also easier to inspect for wear and damage.

TiN (Titanium Nitride)

TiN coating provides a modest improvement in tool life and heat resistance. TiN is suitable for general-purpose tapping in steel and cast iron. It is more affordable than premium coatings and offers good value for moderate-volume production.

TiCN (Titanium Carbonitride)

TiCN coating offers better hardness and heat resistance than TiN. It is ideal for tapping stainless steel and other tough materials. TiCN coatings extend tool life significantly compared to uncoated taps.

TiAlN (Titanium Aluminium Nitride)

TiAlN coating provides excellent heat resistance and is ideal for high-speed tapping and demanding materials like stainless steel and titanium. TiAlN taps can operate at higher speeds and temperatures than TiCN-coated taps.

AlTiN (Aluminium Titanium Nitride)

AlTiN is a premium coating offering superior heat resistance and hardness. It is the best choice for extreme applications such as titanium tapping, high-speed CNC production, and difficult alloys. AlTiN-coated taps are more expensive but deliver exceptional tool life in demanding conditions.

Step 7: Choose the Correct Tap Drill Size

Selecting the correct tap drill size is critical for thread quality, tool life, and ease of tapping. An incorrect drill size can cause tap breakage or produce weak, incomplete threads.

Understanding Thread Percentage

Thread percentage refers to how much of the theoretical thread depth is actually formed. A 75% thread is considered ideal for most applications—it provides sufficient thread strength while minimising torque and tap breakage risk. A 50% thread is used where easy tapping is prioritised, such as in hand tapping or in brittle materials. A 100% thread is rarely used because it requires excessive torque and increases tap breakage risk.

Calculating Tap Drill Size

Tap drill size is determined by the thread pitch and desired thread percentage. For metric threads, the formula is: Tap drill diameter = Major diameter − (Pitch × Thread percentage factor). For example, for an M10 × 1.5 metric coarse thread at 75% thread, the tap drill size is approximately 8.5 mm.

Using Tap Drill Charts

Rather than calculating, most machinists use tap drill charts, which list the recommended drill size for each thread size and percentage. Keep a tap drill chart at your workbench for quick reference. Tap drill charts are available for metric, UNC, UNF, and other thread standards.

Effect on Torque and Tool Life

A drill size that is too small produces a high thread percentage, requiring excessive torque and increasing tap breakage risk. A drill size that is too large produces a low thread percentage, resulting in weak threads that may strip under load. Using the correct tap drill size balances thread strength, ease of tapping, and tool life.

Common Tap Selection Mistakes

Avoiding these common errors will save you time, money, and frustration.

Choosing the Wrong Geometry

Using a spiral point tap in a blind hole or a spiral flute tap in a through hole is inefficient and can lead to tap breakage. Always match tap geometry to hole type.

Incorrect Drill Size

Drilling too small or too large a hole is one of the most common mistakes. Always consult a tap drill chart before drilling.

Using the Wrong Coating

Using an uncoated tap for stainless steel or an uncoated tap at high speeds will result in rapid tool wear and breakage. Match coating to material and application.

Poor Lubrication

Inadequate cutting fluid is a leading cause of tap breakage. Use plenty of quality cutting fluid appropriate to your material.

Selecting a Hand Tap for CNC Production

Hand taps are not designed for machine tapping. Using a hand tap in a CNC machine will result in rapid wear and poor thread quality. Always use machine taps for automated applications.

Tap Selection Quick Reference Table

Material	Hole Type	Recommended Tap Style	Coating Recommendation
Aluminium	Blind	Spiral Flute (Cutting)	Uncoated or TiN
Aluminium	Through	Spiral Point (Cutting)	Uncoated or TiN
Mild Steel	Blind	Spiral Flute (Cutting)	TiN or TiCN
Mild Steel	Through	Spiral Point (Cutting)	TiN or TiCN
Stainless Steel	Blind	Spiral Flute (Form or Cutting)	TiAlN or AlTiN
Stainless Steel	Through	Spiral Point (Form or Cutting)	TiAlN or AlTiN
Cast Iron	Blind	Spiral Flute (Cutting)	Uncoated or TiN
Cast Iron	Through	Spiral Point (Cutting)	Uncoated or TiN
Titanium	Blind	Spiral Flute (Cutting)	AlTiN
Titanium	Through	Spiral Point (Cutting)	AlTiN
High-Strength Alloys	Blind	Spiral Flute (Cutting or Form)	TiAlN or AlTiN
High-Strength Alloys	Through	Spiral Point (Cutting or Form)	TiAlN or AlTiN

Frequently Asked Questions

What tap should I use for stainless steel?

For stainless steel, use a spiral flute tap with a TiAlN or AlTiN coating. Stainless steel is tough and work-hardens rapidly, so a coated tap is essential. Reduce your speed to about 50% of the speed you would use for mild steel, and use plenty of cutting fluid. Many machinists prefer form taps for stainless steel because they generate less heat, but they require more torque and precise hole sizing.

Can I use a form tap in aluminium?

Yes, form taps work excellently in aluminium. Aluminium is ductile and responds well to cold-working. Form taps eliminate chip management, which is a significant advantage in aluminium where chips tend to be long and stringy. Ensure your hole size is correct and that your machine has adequate torque capacity.

What's the difference between spiral flute and spiral point taps?

Spiral flute taps have flutes that spiral upward, actively pulling chips out of the hole. They are ideal for blind holes where chips cannot escape downward. Spiral point taps have a chip-breaker geometry that pushes chips ahead of the tool and out through the bottom of the hole. Spiral point taps are faster and more efficient in through holes. Using the correct geometry for your hole type is essential for success.

What causes taps to break?

Tap breakage is usually caused by one or more of the following: incorrect tap drill size (too small), inadequate cutting fluid, excessive speed or feed rate, poor machine rigidity or alignment, using a hand tap in a machine, or attempting to tap a material for which the tap is not suited. Always use the correct tap drill size, apply plenty of cutting fluid, and match tap selection to your material and machine.

How do I know if my tap drill size is correct?

Consult a tap drill chart for your thread standard and desired thread percentage. For metric threads at 75% thread, the tap drill size is approximately the major diameter minus 1.5 times the pitch. If you're unsure, err on the side of a slightly larger drill size; a 50% thread is better than a broken tap.

Can I use the same tap for hand tapping and machine tapping?

Hand taps and machine taps are designed differently. Hand taps have longer flutes and are more forgiving of misalignment. Machine taps have shorter flutes and are optimised for consistent machine feeds. For best results, use the appropriate tap for your application. Using a hand tap in a machine will result in poor performance and rapid wear.

What cutting fluid should I use for tapping?

Cutting fluid selection depends on the material. For steel, use a sulphurised cutting oil or soluble oil. For aluminium, use a light mineral oil or a soluble oil. For stainless steel, use a premium cutting fluid designed for stainless steel. For cast iron, cutting fluid is optional but a light mist helps control dust. Always use plenty of cutting fluid; inadequate lubrication is a leading cause of tap breakage.

Conclusion

Choosing the right tap is a systematic process that considers material type, hole geometry, thread standard, machine capability, and coating. By following this seven-step framework, you can select the perfect tap for any application:

1. Identify the material you're tapping.
2. Determine whether the hole is blind or through.
3. Choose between form and cutting taps based on chip control needs.
4. Select the correct thread standard for your application.
5. Match tap type to your tapping method (hand or machine).
6. Choose a coating appropriate to your material and production volume.
7. Use the correct tap drill size for your thread and desired thread percentage.

With this knowledge, you'll avoid common mistakes, extend tool life, produce superior threads, and improve your workshop's productivity. Keep a tap drill chart and this guide at your workbench for quick reference, and you'll be tapping with confidence every time.
