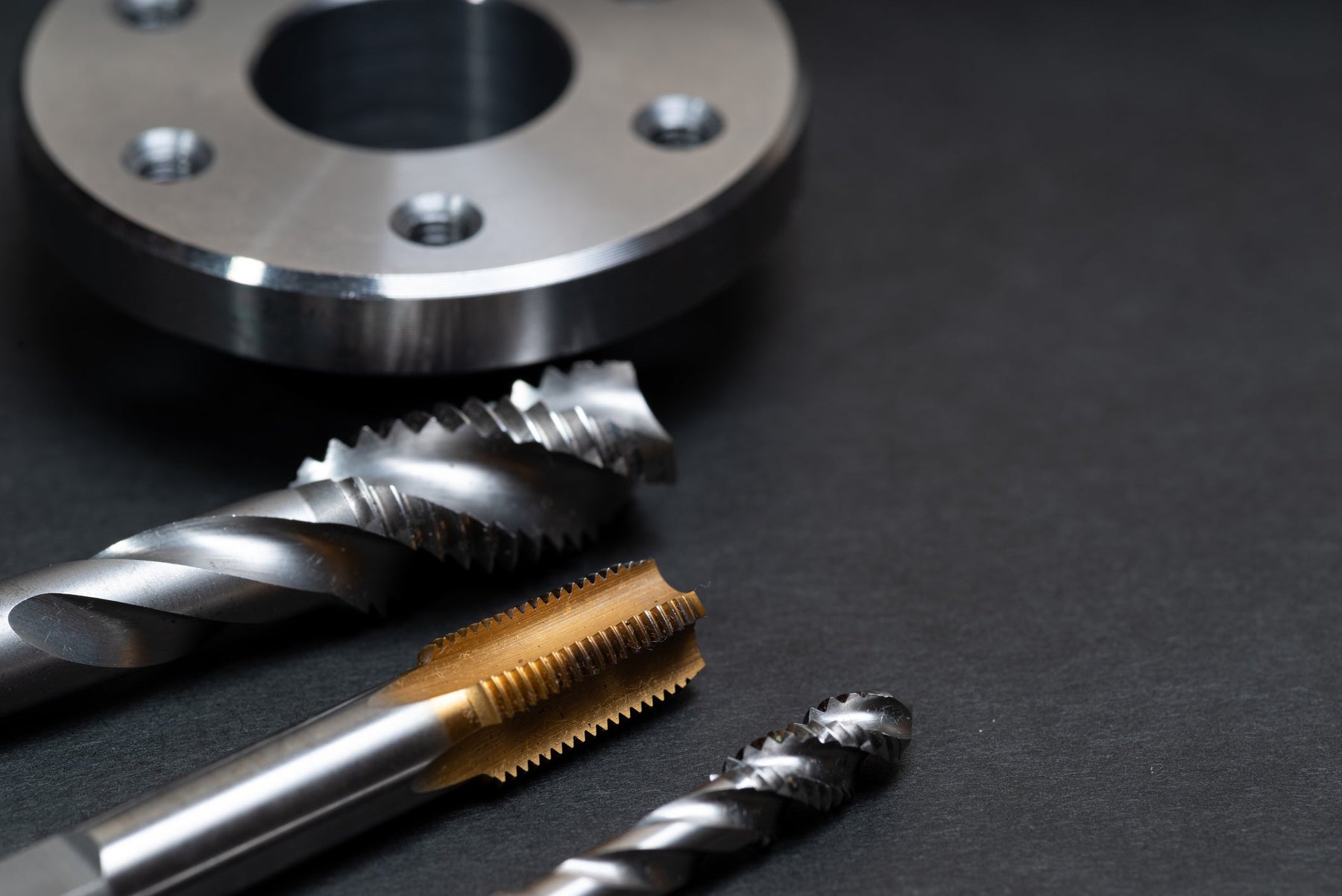

Form Taps vs Cutting Taps

Tapping is one of the most fundamental operations in any machine shop, But not all taps are created equal. Two main categories dominate the tapping world: form taps and cutting taps. Understanding the differences between these two types of tapping tools is essential for selecting the right solution for your application.

In this guide, we'll explore what form taps and cutting taps are, how they work, their advantages and limitations, and most importantly, how to choose the right one for your job. Whether you're a CNC operator, machinist, workshop owner, or maintenance engineer, this article will help you make informed decisions that improve thread quality, reduce tool wear, and boost productivity.

What is a Form Tap?

A form tap, also known as a cold-forming tap or roll tap, works on a fundamentally different principle than a cutting tap. Instead of removing material through cutting action, a form tap displaces material to create the thread profile.

When a form tap is driven into a pre-drilled hole, the flutes on the tap push the material outward and downward, compressing it into the thread form. This process creates threads without producing chips or swarf. The material flows around the tap, creating a solid, dense thread structure.

Advantages of Form Taps

• Stronger threads: Because material is displaced rather than cut, the grain structure of the material remains intact. This results in threads that are typically 10–15% stronger than those created by cutting taps, making form taps ideal for critical applications where thread strength is paramount.
• No chip production: Form taps produce no chips or swarf. This eliminates the risk of chips jamming in blind holes and reduces cleanup time in your workshop.
• Longer tool life: Without the abrasive action of chip formation, form taps experience less wear and typically last significantly longer than cutting taps, especially in production runs.
• Excellent for blind holes: The absence of chips makes form taps the preferred choice for blind holes, where chip evacuation is difficult or impossible.
• Superior surface finish: The cold-forming action produces a smooth, burnished thread surface with excellent finish quality.

Suitable Materials for Form Taps

Form taps work best in ductile materials that can be displaced without fracturing. These include:

• Aluminium and aluminium alloys
• Mild steel and low-carbon steel
• Stainless steel (austenitic grades)
• Copper and brass
• Ductile cast iron

Form taps are less suitable for brittle materials like cast iron or hardened steel, where the material cannot be displaced effectively and may crack or fracture.

What is a Cutting Tap?

A cutting tap, also called a conventional tap or fluted tap, removes material through a traditional cutting action. The flutes on the tap have sharp cutting edges that slice away material as the tap rotates, creating chips that must be evacuated from the hole.

Cutting taps have been the industry standard for decades and remain the most versatile tapping solution for a wide range of applications and materials.

Advantages of Cutting Taps

• Lower torque requirements: Cutting taps require less torque to operate than form taps, making them easier to use in manual tapping operations and less demanding on CNC machines.
• Suitable for a wider range of materials: Cutting taps work effectively in both ductile and brittle materials, including cast iron, hardened steel, and composite materials.
• Works well in harder materials: For stainless steel tapping, hardened steel, and other challenging materials, cutting taps are often the more reliable choice.
• More forgiving of incorrect hole sizes: Cutting taps are more tolerant of variations in pre-drilled hole diameter, making them ideal when hole size precision is difficult to maintain.
• Easier chip evacuation: In through holes, cutting taps produce chips that are easily evacuated, reducing the risk of tap breakage.

Form Taps vs Cutting Taps: Comparison Table

When to Use a Form Tap

Form taps excel in specific applications where their unique advantages provide clear benefits. Here are practical scenarios where form taps are the right choice:

High-Volume Production Runs

If you're running a large batch of identical components in aluminium or mild steel, form taps deliver superior value. Their longer tool life means fewer tap changes, reduced downtime, and lower cost per hole. In CNC tapping operations, this translates to increased productivity and profitability.

Blind Hole Threading

When threading blind holes in ductile materials, form taps are your best option. The absence of chips eliminates the risk of chip jamming, which can break taps and damage threads. This is especially critical in aerospace, automotive, and precision engineering applications.

Critical Strength Applications

For components where thread strength is non-negotiable—such as engine blocks, structural fasteners, or load-bearing assemblies—form taps create threads that are measurably stronger than those produced by cutting taps. The intact grain structure provides superior fatigue resistance.

Stainless Steel Tapping (Austenitic Grades)

Austenitic stainless steel (such as 304 and 316) is ductile and responds well to form tapping. The process produces excellent results with minimal tool wear, making it ideal for medical devices, food processing equipment, and marine applications.

Aluminium Components

Aluminium's ductility makes it ideal for form tapping. Whether you're threading engine blocks, heat sinks, or structural components, form taps deliver strong threads with excellent surface finish and minimal tool wear.

When to Use a Cutting Tap

Cutting taps remain the most versatile tapping solution and are the right choice in many scenarios:

General-Purpose Workshop Use

For most general machining and maintenance work, cutting taps are the go-to choice. They're forgiving, reliable, and work across a broad range of materials and hole sizes. If you're unsure which tap to use, a cutting tap is usually the safe bet.

Hardened Steel and Cast Iron

When tapping hardened steel, tool steel, or cast iron, cutting taps are essential. These brittle materials cannot be displaced effectively by form taps and will fracture or crack. Cutting taps remove material cleanly, producing reliable threads in these challenging materials.

Stainless Steel Tapping (Martensitic and Ferritic Grades)

Martensitic and ferritic stainless steels are harder and less ductile than austenitic grades. Cutting taps are more suitable for these materials, providing better control and reducing the risk of tap breakage.

Through Holes with Chip Evacuation

In through-hole applications where chips can be easily evacuated, cutting taps perform excellently. The lower torque requirements and chip removal capability make them ideal for high-speed CNC operations.

Hole Size Tolerance Issues

If your pre-drilled holes vary slightly in diameter—a common challenge in manual drilling or older equipment—cutting taps are more forgiving. They'll produce acceptable threads even if hole sizes aren't perfectly precise.

Manual Tapping Operations

For hand tapping with a tap wrench, cutting taps require less effort and are easier to control. The lower torque requirements reduce fatigue and make the job more manageable.

Common Tapping Mistakes to Avoid

Using Form Taps in Unsuitable Materials

The most common mistake is attempting to use form taps in brittle materials like cast iron or hardened steel. The material cannot be displaced, resulting in tap breakage and damaged threads. Always verify that your material is suitable for form tapping before proceeding.

Incorrect Tap Drill Sizes

Form taps are particularly sensitive to hole size. Using a hole that's too small creates excessive pressure and can break the tap. Using a hole that's too large produces incomplete threads. Always use the correct tap drill size for form taps—consult a tap drill chart or your tap manufacturer's specifications.

Insufficient Lubrication

Both form and cutting taps require proper lubrication. Inadequate coolant or lubricant increases friction, generates heat, and accelerates tool wear. Use appropriate cutting fluid for your material: soluble oil for steel, light machine oil for aluminium, and specialist coolants for stainless steel.

Poor Machine Alignment

Misaligned taps produce angled threads and excessive side loading, leading to premature wear and breakage. Ensure your CNC machine or manual tapping setup is properly aligned and that the tap enters the hole perpendicular to the surface.

Excessive Speed

Running taps too fast generates heat and accelerates wear. Follow manufacturer recommendations for spindle speed based on material and tap diameter. As a general rule, slower speeds are safer than faster speeds.

Frequently Asked Questions

Can I use a form tap in a through hole?

Yes, form taps work in through holes, but they're not the optimal choice. Cutting taps are better suited to through holes because chips are easily evacuated. Form taps are best reserved for blind holes where their chip-free operation provides a clear advantage.

Why do form taps require more torque?

Form taps displace material rather than cut it, which requires greater force. The material must be pushed outward and compressed into the thread form, creating higher resistance and torque requirements compared to the cutting action of a conventional tap.

Are form taps more expensive than cutting taps?

Form taps typically cost more upfront, but their longer tool life often makes them more economical in high-volume production. For low-volume or one-off jobs, cutting taps are usually the more cost-effective choice.

Can I use a cutting tap in stainless steel?

Yes, cutting taps work well in stainless steel, particularly martensitic and ferritic grades. For austenitic stainless steel, both cutting and form taps are suitable, but form taps may offer advantages in high-volume production due to longer tool life.

What's the best lubricant for CNC tapping?

The best lubricant depends on your material. For steel, use soluble oil or a specialist tapping fluid. For aluminium, light machine oil or a dedicated aluminium tapping fluid works well. For stainless steel, use a high-pressure tapping fluid designed for stainless applications. Always follow your machine tool manufacturer's recommendations.

What happens if I use a form tap in cast iron?

Cast iron is brittle and cannot be displaced effectively. Attempting to use a form tap in cast iron will result in the tap breaking, often suddenly and without warning. Always use a cutting tap for cast iron and other brittle materials.

Conclusion

Choosing between form taps and cutting taps comes down to understanding your material, your application, and your production requirements. Form taps deliver stronger threads, longer tool life, and superior performance in blind holes—making them ideal for high-volume production in ductile materials. Cutting taps offer versatility, lower torque requirements, and compatibility with a wider range of materials, making them the go-to choice for general-purpose work and challenging materials like cast iron and hardened steel.

The key to success is matching the right tap to the right job. Consider your material type, hole configuration, production volume, and hole size tolerance. When in doubt, consult your tap manufacturer's technical data or reach out to a tapping specialist.
