Expertly engineered for high-efficiency internal threading operations in demanding production environments, the Guhring Metric TiCN Coated Solid Carbide Thread Milling Cutter range is the definitive industrial choice for modern CNC machining. Operating on the standard 60° ISO Metric thread profile, these premium solid carbide (VHM) tools feature an advanced Titanium Carbonitride (TiCN) coating. This specialized, multi-layered surface treatment delivers extreme peripheral hardness and an exceptionally low coefficient of friction, drastically reducing flank wear and eliminating edge build-up during high-speed orbital interpolation. Utilizing precise helical paths, these cutters generate flawless metric thread forms with absolute pitch compliance. The ultra-fine sub-micron carbide substrate paired with the intense thermal protection of TiCN makes this range uniquely optimized to deliver exceptional tool life and perfect finishes across a vast spectrum of materials, including abrasive structural steels, mild steel, AS/NZS 3678 250 and 350 grade plate, and high-tensile alloys. By maximizing tool rigidity and heat resistance, Guhring thread mills eliminate taper issues in deep holes, ensuring perfect thread alignment during continuous milling cycles.

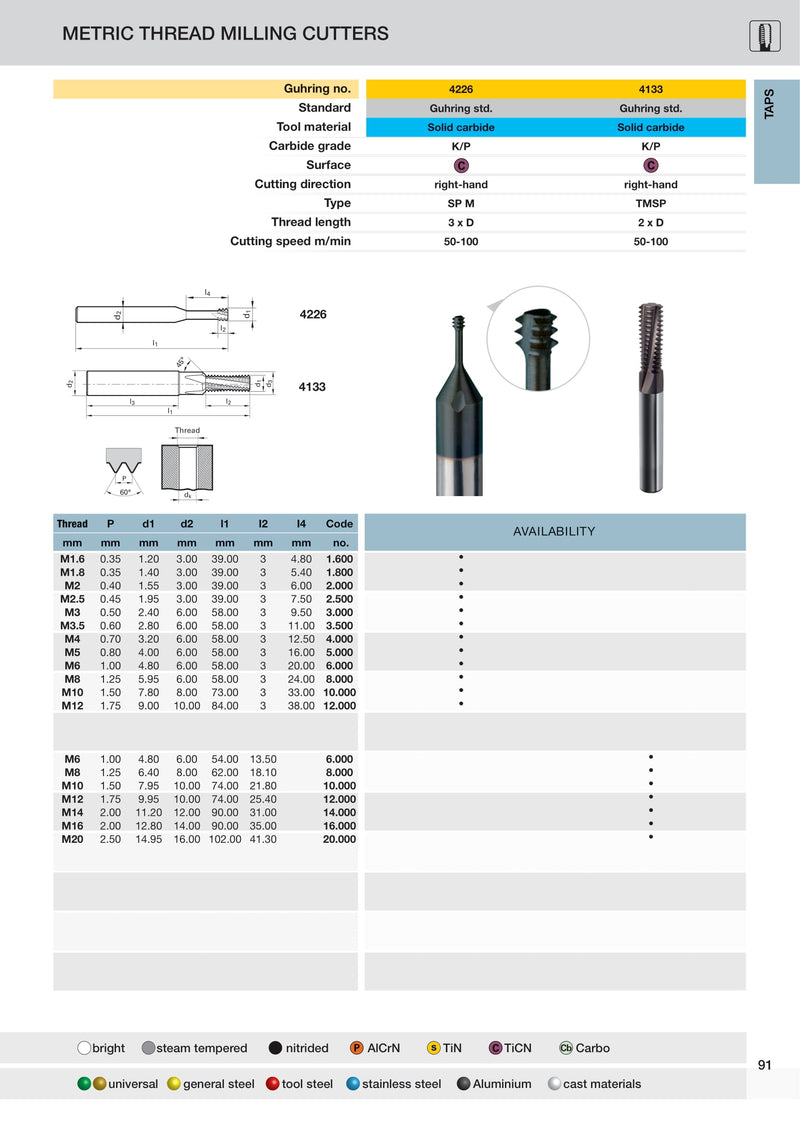

TECHNICAL DATA

• Made from Solid Carbide
• Standard  - Guhring Std.
• Surface - TiCN Coated
• Thread Length - 2 x Diameter
• Guhring No. 4133
