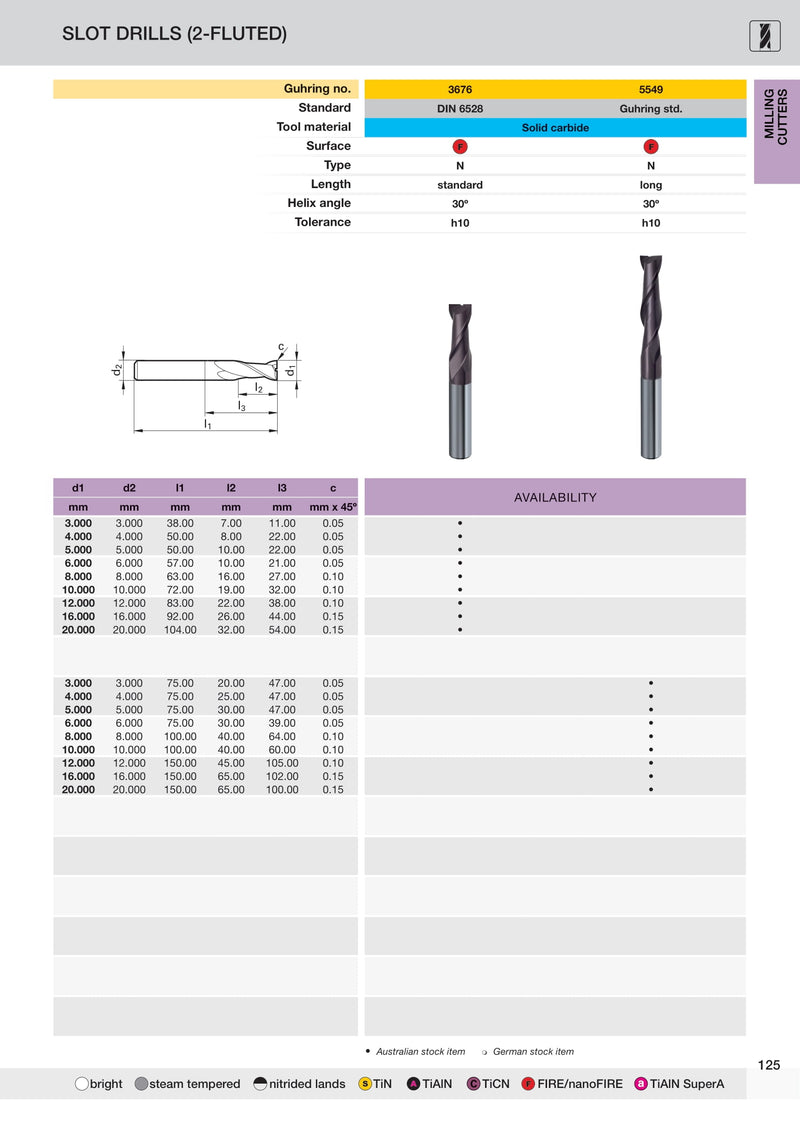

Engineered for high-efficiency deep cavity clearance, extended-reach slotting, and heavy pocket plunging, the Guhring Metric TiAlN 2 Flute Long Series Solid Carbide End Mill range delivers exceptional chip evacuation and strict dimensional accuracy. Featuring a specialized 2-flute geometry, these high-performance long series slot drills provide the ultimate chip clearance space, which is critical for preventing chip packing during deep full-width slotting and enclosed channel routing. Manufactured from premium solid carbide, this series features an enhanced core structure designed to maximize tool rigidity and minimize tool deflection over extended reach lengths. Enhanced with an advanced Titanium Aluminium Nitride (TiAlN) coating for exceptional hot-hardness, this metric series ensures clean cutting actions and significantly extended tool life when machining structural steels, cast iron, pre-hardened tool steels, and tough alloys in modern CNC environments.

TECHNICAL DATA

• Made from Solid Carbide
• Standard  - Guhring Std.
• Surface - TiAIN Coating
• Helix Angle - 30DEG
• Tolerance - K10
• Guhring No. 5549
