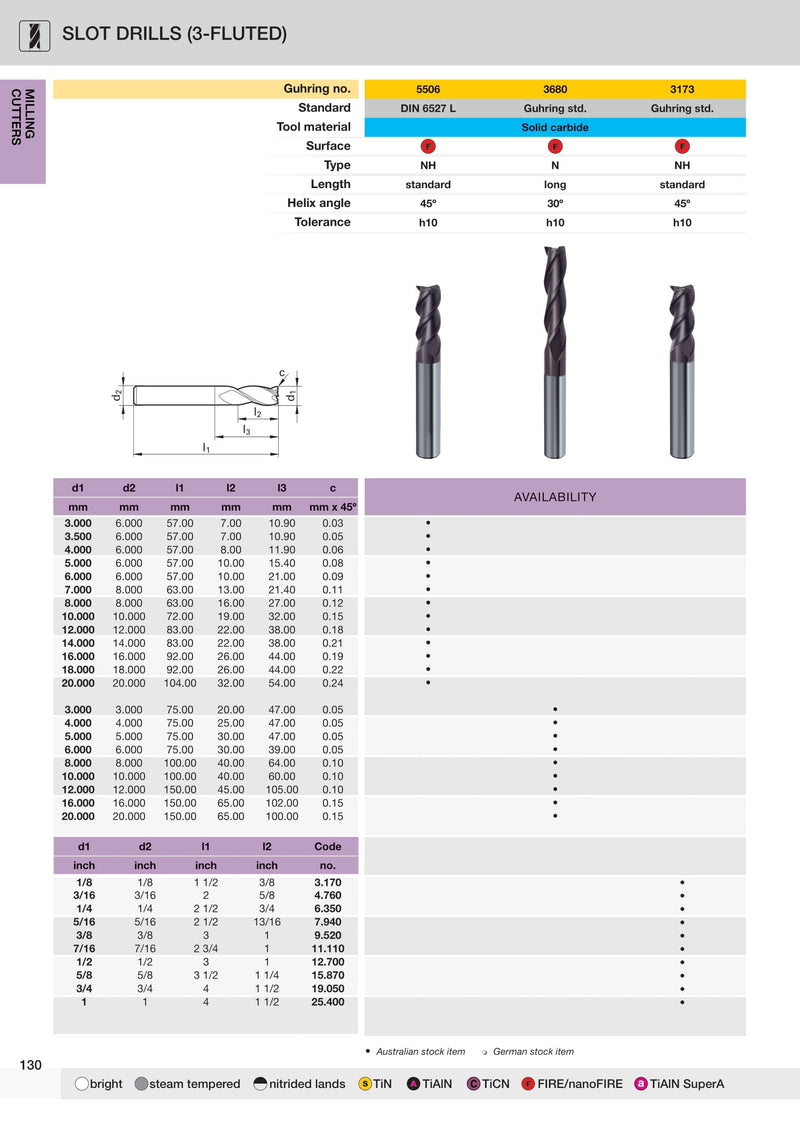

Metric TiAlN 3 Flute Solid Carbide End Mills (Slot Drills) | Guhring
Metric TiAlN 3 Flute Solid Carbide End Mills (Slot Drills) | Guhring

Metric TiAlN 3 Flute Solid Carbide End Mills (Slot Drills) | Guhring

by Guhring
$49.52 - $401.42
$49.52
$49.52 - $401.42
$49.52

Engineered for high-efficiency plunging, rapid pocketing, and high-speed metric profiling, the Guhring Metric TiAlN 3 Flute Solid Carbide End Mill range delivers exceptional chip evacuation and strict dimensional accuracy. Featuring a specialized 3-flute geometry, these premium metric slot drills offer the ultimate engineering balanceā€”providing superior core rigidity to eliminate tool deflection during heavy side cuts, while maintaining massive flute clearances for rapid material disposal. Enhanced with an advanced Titanium Aluminium Nitride (TiAlN) coating for exceptional hot-hardness, this series effectively prevents built-up edge (BUE) and chip welding. This metric series ensures clean cutting actions and extended tool life when high-speed CNC milling aluminium alloys, brass, copper, and structural non-ferrous components.

TECHNICAL DATA

  • Made fromĀ Solid Carbide
  • StandardĀ  -Ā DIN 6627 L
  • Surface -Ā TiAIN Coating
  • Helix Angle - 45DEG
  • Tolerance - H10
  • Guhring No. 5506
