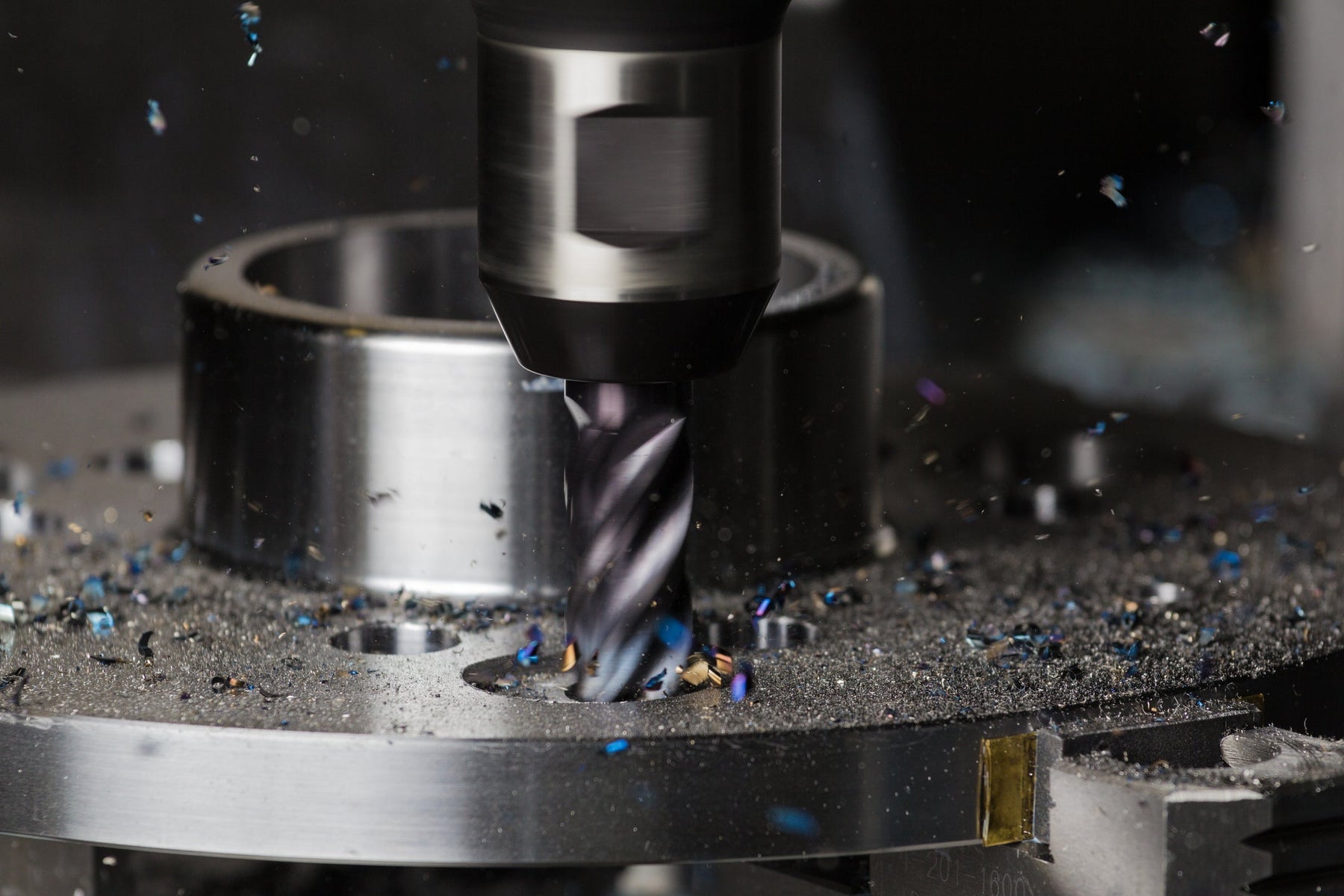

Speeds & Feeds for Stainless Steel
Machining stainless steel presents unique challenges that demand precision in speeds, feeds, and tooling strategy. Unlike mild steel or aluminium, austenitic stainless grades (304, 316, 303) and precipitation-hardened variants (17-4 PH) combine high hot-hardness, poor thermal conductivity, and rapid work-hardening characteristics that concentrate heat at the tool tip and accelerate flank wear. Success depends on understanding the relationship between surface speed, spindle RPM, chip load, and feed rate—and applying them consistently on the shop floor.
Why Stainless Steel Is Difficult to Machine
Stainless steel's corrosion resistance comes from a chromium oxide passive layer that makes the material inherently tough and resistant to deformation. When you machine it, three problems emerge simultaneously:
- Heat concentration: Poor thermal conductivity means heat builds up at the cutting edge rather than dissipating into the workpiece, causing rapid tool wear and potential thermal cracking.
- Work-hardening: The material hardens rapidly ahead of the cutting edge, creating a strain-hardened layer that resists further cutting and causes the tool to rub rather than slice.
- Built-up edge (BUE): Stainless steel tends to weld itself to the tool flank, creating a secondary cutting edge that degrades surface finish and accelerates tool failure.
The solution is aggressive, positive chip loads paired with low to moderate cutting speeds and continuous flood coolant to keep the tool cutting cleanly and cool.
Understanding Speeds & Feeds Fundamentals
Before diving into reference tables, it's essential to understand how the four core parameters interact:
- Surface Speed (SFM or m/min): The linear velocity at which the tool's cutting edge moves through the material. Lower speeds reduce heat generation but increase cycle time; higher speeds increase productivity but generate more heat.
- Spindle Speed (RPM): How fast the spindle rotates. RPM is calculated from surface speed and tool diameter using the formula: RPM = (SFM × 3.82) / Diameter (inches).
- Chip Load (IPT or mm/tooth): The amount of material each flute removes per revolution. Aggressive chip loads (thicker chips) keep the tool cutting rather than rubbing; light chip loads reduce heat but risk rubbing and work-hardening.
- Feed Rate (IPM or mm/min): How fast the tool advances into the material. Feed rate = RPM × Chip Load × Number of Flutes.
For stainless steel, the priority is maintaining a consistent, aggressive chip load to ensure the cutting edge continuously slices through fresh material rather than rubbing against a work-hardened surface.
Recommended Speeds & Feeds for Solid Carbide End Mills on Stainless Steel
The table below provides proven parameters for AlTiN or TiAlN coated solid carbide end mills cutting 304 and 316 stainless steel under flood coolant conditions. These values assume rigid machine setups and standard CNC mills; adjust downward if your machine exhibits chatter or excessive runout.
| Tool Diameter | Flute Count | RPM Range | Surface Speed (SFM) | Chip Load (IPT) | Feed Rate (IPM) | Application |
|---|---|---|---|---|---|---|
| 3mm (0.118") | 4 | 3,500–5,000 | 130–185 SFM | 0.003–0.005 | 4.2–10.0 | Finishing, detail work |
| 6mm (0.236") | 4 | 2,000–3,500 | 125–180 SFM | 0.004–0.007 | 3.2–9.8 | General milling, pocketing |
| 8mm (0.315") | 4 | 1,500–2,500 | 120–165 SFM | 0.005–0.008 | 3.0–8.0 | Roughing, side milling |
| 10mm (0.394") | 4 | 1,200–2,000 | 125–165 SFM | 0.006–0.010 | 2.9–8.0 | General purpose roughing |
| 12mm (0.472") | 4 | 1,000–1,700 | 125–160 SFM | 0.007–0.012 | 2.8–8.2 | Heavy roughing, slotting |
| 16mm (0.630") | 4 | 750–1,300 | 125–160 SFM | 0.008–0.014 | 2.4–7.3 | Heavy roughing, adaptive clearing |
Speeds & Feeds by Stainless Steel Grade
Not all stainless steels machine the same way. Machinability varies significantly based on alloy composition, hardness, and work-hardening rate. Use this table to adjust your baseline parameters:
| Stainless Grade | Machinability Rating | Relative Speed Adjustment | Notes |
|---|---|---|---|
| 303 (Free-Cutting) | Excellent | +15–25% | Sulphur additions improve chip breaking; fastest cutting stainless grade. |
| 304 (Standard Austenitic) | Good | Baseline (0%) | Most common stainless; use baseline parameters from reference table. |
| 316 (Molybdenum) | Moderate | −10–15% | Molybdenum increases hardness and work-hardening; reduce speed and increase chip load. |
| 17-4 PH (Precipitation-Hardened) | Moderate | −5–10% | Higher hardness than austenitic grades; use slightly lower speeds and aggressive chip loads. |
4-Flute vs Variable Helix End Mills for Stainless Steel
The choice between standard 4-flute and variable helix carbide end mills significantly impacts tool life and surface finish when machining stainless steel. Here's how they compare:
| Characteristic | Standard 4-Flute | Variable Helix |
|---|---|---|
| Tool Life | Good; consistent flute spacing can cause harmonic vibration in stainless. | Excellent; variable spacing breaks up vibration patterns and extends life 20–40%. |
| Chatter Resistance | Moderate; prone to chatter in slender setups or thin-walled parts. | Superior; variable helix geometry dampens vibration and reduces chatter significantly. |
| Surface Finish | Good; acceptable for most applications. | Excellent; smoother finish due to reduced vibration and more consistent cutting forces. |
| Feed Capability | Moderate; limited by vibration at higher feeds. | Higher; can sustain more aggressive feeds without chatter. |
| Chip Evacuation | Good; consistent flute spacing aids chip flow. | Excellent; variable spacing helps break up long chips and improves evacuation. |
| Cost | Lower; standard geometry is less expensive to manufacture. | Higher; precision variable helix grinding adds cost, but extended tool life justifies it. |
Recommendation: For stainless steel, variable helix carbide end mills are the preferred choice. The extended tool life, superior chatter resistance, and improved surface finish typically offset the higher initial cost, especially on production runs or when machining difficult grades like 316 or 17-4 PH.
Speeds & Feeds by Operation Type
Different milling operations demand different speed and feed strategies. Use this table to adjust your baseline parameters based on the specific operation:
| Operation | Speed Adjustment | Feed Adjustment | Key Considerations |
|---|---|---|---|
| Slotting | −15–20% | Baseline to +10% | High radial load; reduce speed to manage heat. Maintain aggressive chip load to prevent rubbing. |
| Pocketing | Baseline | Baseline | Moderate load; use standard parameters. Monitor for chatter in deep pockets. |
| Adaptive Clearing | Baseline to +10% | +20–40% | Constant load strategy; increase feed aggressively while maintaining chip load. Excellent for roughing. |
| Side Milling | Baseline | Baseline to +15% | Moderate radial load; use standard speeds. Can increase feed slightly for faster material removal. |
| Finishing | +10–20% | −30–50% | Light depth of cut; increase speed for better surface finish. Reduce feed for finer finish quality. |
| Helical Ramping | Baseline | +15–30% | Distributed load; use standard speed with increased feed. Excellent for tool life and heat management. |
Common Problems When Machining Stainless Steel & Solutions
Even with correct speeds and feeds, stainless steel can present unexpected challenges. Use this troubleshooting guide to diagnose and solve common issues:
| Problem | Root Cause | Solution |
|---|---|---|
| Work Hardening / Rubbing | Chip load too light; tool rubbing instead of cutting. | Increase chip load (feed per tooth) by 20–30%. Ensure tool is sharp and properly fluted. Verify spindle runout is under 0.005". |
| Chatter / Vibration | Insufficient rigidity; tool overhang too long; spindle bearings worn. | Reduce tool overhang. Use variable helix end mills. Reduce depth of cut or feed. Check spindle runout and bearing preload. |
| Excessive Heat / Thermal Cracking | Inadequate coolant flow; cutting speed too high; poor chip evacuation. | Increase coolant flow to maximum. Reduce spindle speed by 10–15%. Use flood coolant, not mist. Verify coolant concentration and type. |
| Premature Tool Wear / Flank Wear | Cutting speed too high; inadequate coolant; poor tool coating. | Reduce speed by 10–20%. Verify coolant type and concentration. Switch to AlTiN or TiAlN coated carbide. Inspect tool holder runout. |
| Poor Surface Finish / Built-Up Edge | Chip load too light; tool rubbing; inadequate coolant lubricity. | Increase chip load. Use water-soluble oil coolant with high lubricity. Increase spindle speed for finishing passes. Ensure tool is sharp. |
| Long, Stringy Chips | Chip load too high; inadequate chip evacuation; poor coolant. | Reduce feed slightly. Increase spindle speed to break chips. Use chip-breaking geometry end mills. Verify coolant flow direction. |
Pro Tips for Longer Tool Life When Machining Stainless Steel
- Maintain consistent chip load above all else. A light chip load that causes rubbing will dull a tool faster than a heavy chip load that cuts cleanly. Aim for 0.005–0.015 IPT depending on tool diameter and operation.
- Avoid intermittent cutting. Stainless steel work-hardens rapidly; if the tool leaves the cut and re-engages, it will rub against the hardened surface. Use continuous cutting paths whenever possible.
- Climb milling is acceptable for stainless steel. Unlike aluminium, climb milling on stainless steel can improve surface finish and reduce tool wear by keeping the cutting edge engaged in fresh material. Ensure your machine has backlash compensation.
- Invest in rigid setups. Minimize tool overhang, use solid carbide holders, and verify spindle runout is under 0.005". Rigidity directly translates to longer tool life and better surface finish.
- Keep the tool engaged in the cut. Rapid tool changes and idle spindle time allow the workpiece to cool, creating thermal stress when cutting resumes. Maintain continuous cutting when possible.
- Use premium coated carbide tooling. AlTiN and TiAlN coatings are specifically designed for stainless steel. The coating cost is recovered through extended tool life and faster feeds.
- Flood coolant is non-negotiable. High-volume, continuous flood coolant with water-soluble oil provides lubricity and heat dissipation that air blast or dry machining cannot match. Intermittent misting causes thermal cycling and rapid tool failure.
- Monitor tool wear proactively. Inspect tools every 30–50 minutes of cutting time. Replace when flank wear reaches 0.015–0.020" to maintain surface finish and prevent thermal cracking.
Quick Shop-Floor Reference Chart
Print this chart and post it at your CNC station for quick reference:
| Tool Size | RPM (304/316) | Chip Load (IPT) | Feed (IPM) | Coolant |
|---|---|---|---|---|
| 1/8" | 4,500–5,500 | 0.003–0.006 | 5–14 | Flood |
| 1/4" | 2,400–3,000 | 0.004–0.008 | 4–8 | Flood |
| 3/8" | 1,600–2,000 | 0.005–0.010 | 3–7 | Flood |
| 1/2" | 1,200–1,500 | 0.006–0.012 | 3–6 | Flood |
| 3/4" | 800–1,000 | 0.008–0.015 | 3–5 | Flood |
Conclusion: Best Practices for Stainless Steel Machining Success
Machining stainless steel successfully requires discipline and attention to detail. Here's a summary of the key principles:
- Use coated solid carbide end mills. AlTiN and TiAlN coatings are specifically engineered for stainless steel's heat and work-hardening challenges. The cost is justified by extended tool life and faster feeds.
- Prioritize variable helix geometry. Variable helix end mills reduce vibration, extend tool life by 20–40%, and improve surface finish compared to standard 4-flute tools.
- Maintain aggressive, consistent chip loads. Light chip loads cause rubbing and rapid tool wear. Aim for 0.005–0.015 IPT depending on tool size and operation.
- Use continuous flood coolant. High-volume water-soluble oil coolant is essential for heat dissipation and edge lubricity. Intermittent misting or dry machining will result in premature tool failure.
- Establish rigid setups. Minimize tool overhang, verify spindle runout under 0.005", and use solid carbide holders. Rigidity directly impacts tool life and surface finish.
- Start conservative and optimize. Begin with baseline speeds and feeds from the reference table, then increase feeds gradually while monitoring for chatter, heat, and tool wear.
- Inspect tools regularly. Replace tools when flank wear reaches 0.015–0.020" to maintain surface finish and prevent thermal cracking.
By following these guidelines and using the reference tables provided, you'll achieve consistent, reliable results when machining stainless steel—and maximize the life of your cutting tools.
