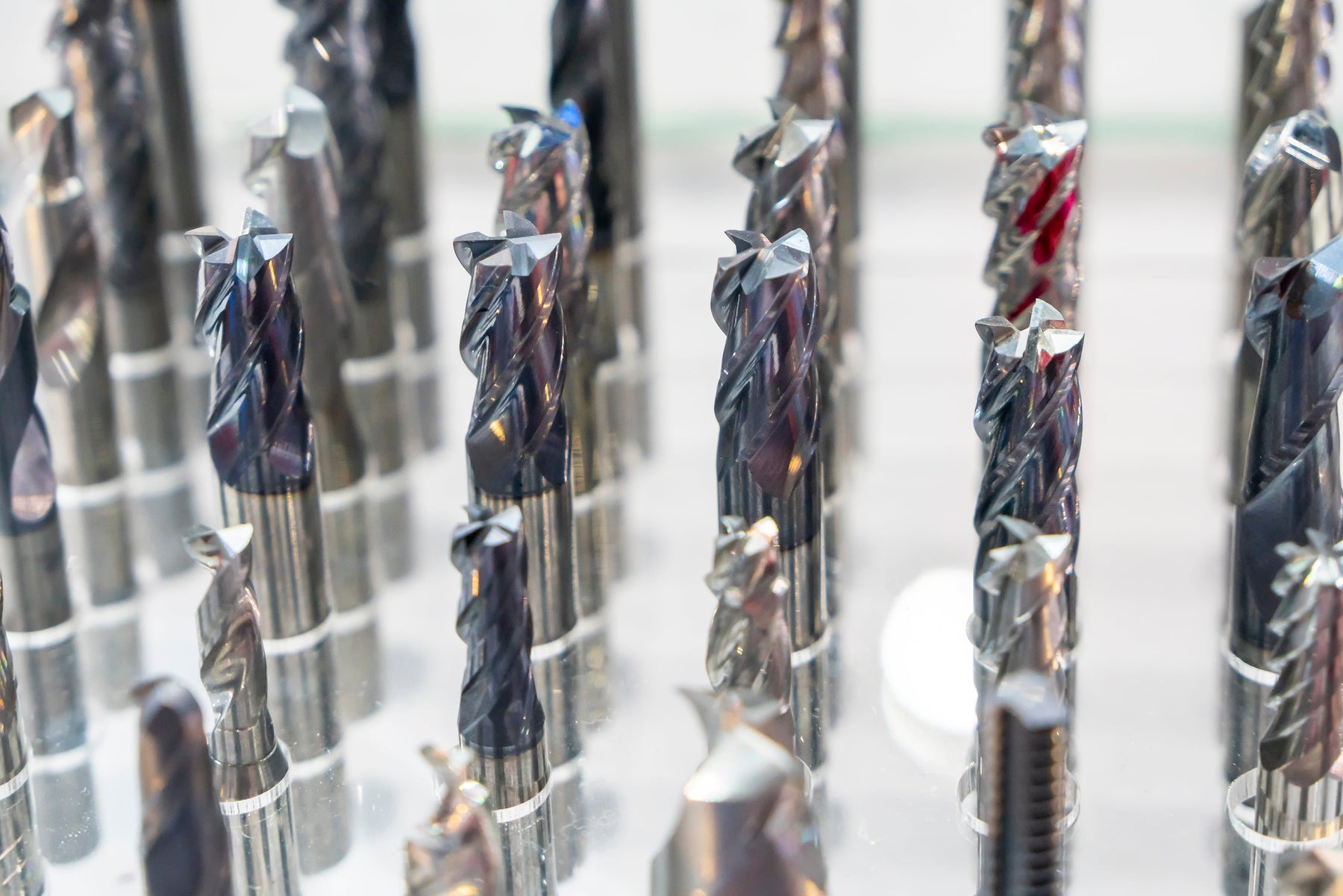

End Mills for Stainless Steel

Stainless steel is one of the most challenging materials to machine, and selecting the right end mill can mean the difference between smooth, efficient cuts and broken tools, poor surface finish, and wasted time. Unlike mild steel or aluminium, stainless steel generates extreme heat, work-hardens rapidly, and produces long, stringy chips that can wrap around your tool and cause catastrophic failure.

This guide walks you through everything you need to know about choosing, using, and maintaining end mills specifically designed for stainless steel machining. Whether you're running a small CNC mill or managing a production shop, understanding the fundamentals of stainless steel end mill selection will improve your tool life, reduce scrap, and deliver better surface finishes.

Why Stainless Steel Is Difficult to Machine

Stainless steel presents three major challenges that directly impact end mill performance:

• Extreme heat generation: Stainless steel has low thermal conductivity, which means heat concentrates at the cutting edge rather than dissipating into the chip or workpiece. This causes rapid tool wear and can lead to thermal fatigue and edge breakdown.
• Work hardening: Stainless steel hardens as you machine it. If your feeds and speeds are too conservative, the material hardens faster than you remove it, making subsequent passes even harder to cut and accelerating tool wear.
• Long, stringy chips: Unlike brittle cast iron or free-cutting brass, stainless steel produces continuous chips that wrap around the tool, jam in the flutes, and prevent coolant from reaching the cutting edge. This leads to poor chip evacuation and rapid tool failure.

The right end mill geometry, coating, and cutting strategy address all three of these challenges.

What Makes a Good End Mill for Stainless Steel

Carbide vs HSS

For stainless steel, carbide end mills are the clear choice. While high-speed steel (HSS) is cheaper and more forgiving, it simply cannot handle the heat generated by stainless steel machining. Carbide maintains hardness at high temperatures, allows faster cutting speeds, and delivers significantly longer tool life—often 10 to 20 times longer than HSS on stainless steel.

The higher upfront cost of carbide is quickly offset by reduced tool changes, less scrap, and faster cycle times. For any serious stainless steel work, carbide is the only practical option.

Coatings

Coatings are essential for stainless steel end mills. They reduce friction, lower cutting temperatures, and protect the carbide substrate from thermal shock and adhesive wear. The most effective coatings for stainless steel include:

• AlTiN (Aluminium Titanium Nitride): Excellent heat resistance and oxidation resistance. Ideal for high-speed stainless steel work. Provides a gold or bronze appearance.
• TiAlN (Titanium Aluminium Nitride): Similar to AlTiN with slightly different performance characteristics. Offers good thermal stability and wear resistance.
• TiN (Titanium Nitride): A classic, proven coating. Less heat-resistant than AlTiN but still effective for moderate-speed stainless work.
• Uncoated carbide: Not recommended for stainless steel. The lack of thermal protection leads to rapid edge wear and tool failure.

For stainless steel, prioritise AlTiN or TiAlN coatings. They are worth the extra cost.

Geometry: Helix Angle and Flute Count

End mill geometry directly affects chip evacuation and cutting forces:

• Helix angle: A higher helix angle (35° to 45°) provides better chip evacuation and smoother cutting action, but reduces edge strength. For stainless steel, a moderate helix angle (30° to 40°) balances chip flow with edge durability.
• Flute count: This is critical for stainless steel. Fewer flutes mean larger chip spaces, which is essential for managing the long, stringy chips that stainless produces. Three-flute end mills are the industry standard for stainless steel; two-flute mills are used for very aggressive roughing; four-flute mills are generally too restrictive and lead to chip jamming.

Best Types of End Mills for Stainless Steel

3-Flute Carbide End Mills (Primary Recommendation)

The 3-flute carbide end mill is the workhorse of stainless steel machining. The three-flute design provides:

• Larger flute spaces for efficient chip evacuation
• Better heat dissipation than four-flute designs
• Adequate edge strength for production work
• Versatility across roughing and finishing operations

For most stainless steel applications, start with a quality 3-flute carbide end mill with AlTiN coating. It will outperform other options in tool life, surface finish, and reliability.

Variable Helix End Mills

Variable helix end mills feature flutes with slightly different helix angles. This design reduces vibration and chatter, which is especially valuable when machining thin-walled stainless steel parts or working on machines with less rigidity. Variable helix mills also improve chip evacuation by varying the cutting action.

If you experience chatter or vibration when machining stainless steel, a variable helix end mill is worth trying.

Corner Radius vs Square End Mills

Square end mills (zero corner radius) are sharper and better for precise dimensional work and sharp internal corners. Corner radius end mills (typically 0.5 mm to 2 mm radius) are stronger, distribute cutting forces more evenly, and offer longer tool life.

For stainless steel, corner radius end mills are generally preferred because the stronger edge handles the material's toughness better. Reserve square end mills for finishing operations where dimensional precision is critical.

Speed and Feed Guidelines

Cutting speed and feed rate are the most important variables for stainless steel success. Running too slowly causes work hardening; running too fast causes thermal breakdown. The table below provides starting points for common stainless steel grades:

Important notes:

• These are starting points. Always test on scrap material first and adjust based on your machine, tool condition, and workpiece geometry.
• Feed per tooth is the amount of material each flute removes per revolution. Multiply feed per tooth by the number of flutes and RPM to calculate your table feed rate.
• Chip load is the thickness of material each flute removes. Maintaining consistent chip load is more important than hitting exact RPM values.
• Caution: If you see blue or purple discolouration on the tool or workpiece, heat buildup is excessive. Reduce speed or increase feed immediately to prevent thermal breakdown.

Common Mistakes to Avoid

Running Too Fast

Many machinists assume faster speeds mean faster production. With stainless steel, this is false. Running above the recommended cutting speed generates excessive heat, causes rapid edge wear, and can lead to sudden tool failure. Start conservatively and increase speed only after confirming good chip evacuation and stable cutting.

Wrong Flute Count

Using a four-flute or six-flute end mill on stainless steel is a common mistake. The smaller flute spaces cannot handle the long, stringy chips that stainless produces. Chips jam in the flutes, coolant cannot reach the cutting edge, and the tool fails prematurely. Stick with three-flute (or two-flute for aggressive roughing) designs.

Poor Chip Evacuation

If chips are not flowing freely from the cut, your tool will fail. Signs of poor chip evacuation include:

• Chips wrapping around the tool or workpiece
• Coolant not reaching the cutting edge
• Rapid tool wear or chatter
• Poor surface finish

Improve chip evacuation by increasing feed rate, reducing depth of cut, or using a variable helix end mill.

Pro Tips for Better Tool Life

Coolant vs Air Blast

Flood coolant is superior to air blast for stainless steel. Coolant reduces cutting temperature, improves chip evacuation, and extends tool life significantly. If flood coolant is not available, through-spindle coolant or mist cooling is the next best option. Air blast alone is inadequate for stainless steel and should be avoided.

Depth of Cut Strategy

Avoid shallow, light cuts on stainless steel. Light cuts cause the tool to rub rather than cut, generating heat without removing material efficiently. Instead, use a reasonable depth of cut (0.5 mm to 2 mm depending on tool diameter and machine rigidity) and maintain consistent feed rate. This produces better chip evacuation and longer tool life.

Avoiding Work Hardening

Work hardening occurs when you cut too slowly or with insufficient feed. The material hardens faster than you remove it, making subsequent passes harder to machine. To avoid work hardening:

• Maintain adequate feed rate (do not creep along at minimal speeds)
• Use sharp tools (dull tools cause rubbing and work hardening)
• Take full-depth cuts when possible rather than multiple shallow passes
• Keep cutting edges cool with adequate coolant

Conclusion

Machining stainless steel successfully requires the right tool, the right speeds and feeds, and the right technique. A quality 3-flute carbide end mill with AlTiN coating, combined with proper cutting parameters and flood coolant, will deliver reliable performance and long tool life.

Start with the guidelines in this article, test on scrap material, and adjust based on your specific machine and workpiece. Pay attention to chip evacuation and cutting temperature—these are your best indicators of whether your setup is working. With practice and attention to detail, you will master stainless steel machining and achieve consistent, high-quality results.
