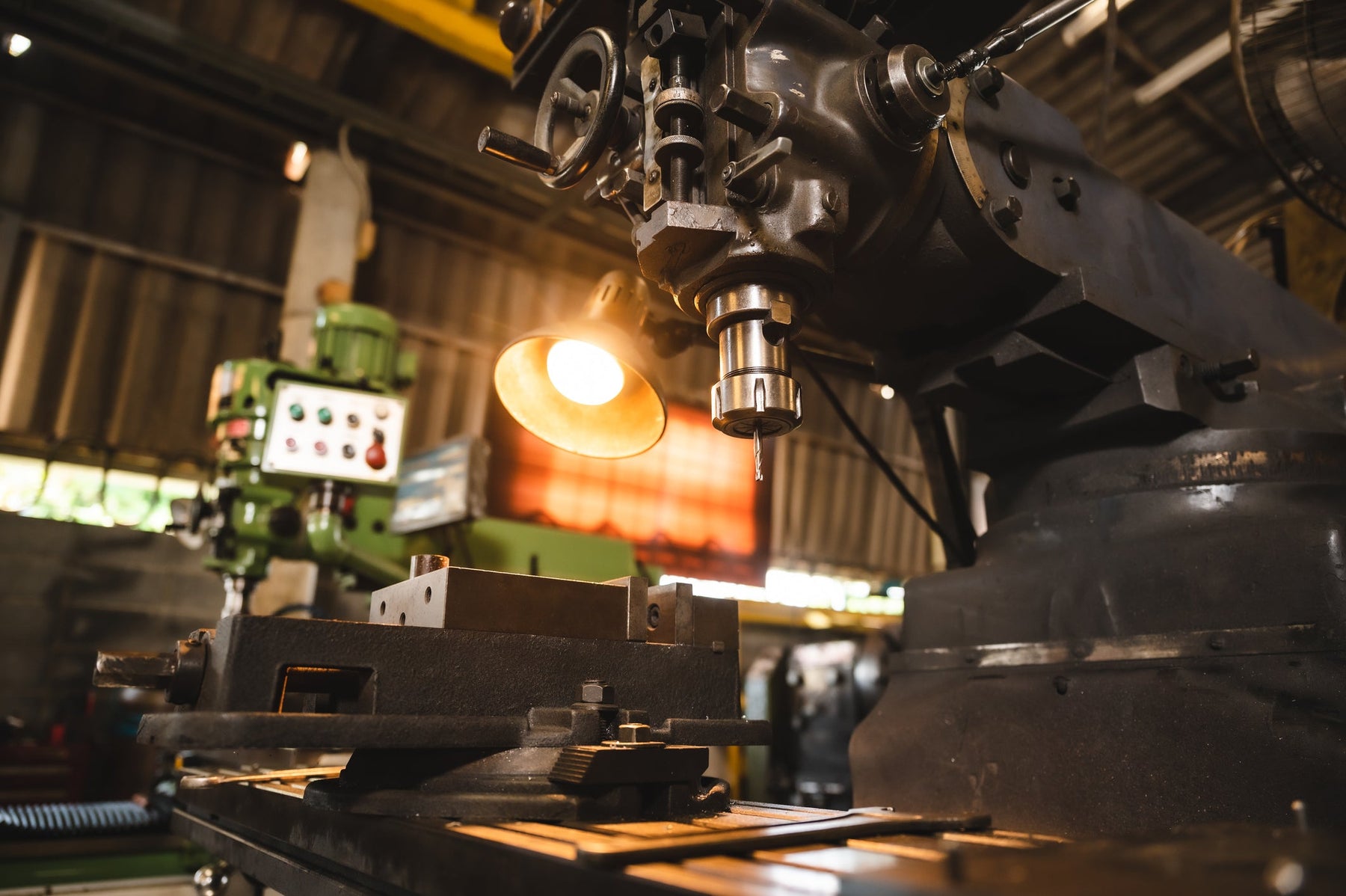

Carbide vs HSS End Mills

Selecting the right end mill is one of the most critical decisions in any machining operation. The choice between carbide and high-speed steel (HSS) affects your cutting speeds, tool life, production costs, and final surface finish. Both materials have earned their place in modern workshops, but understanding their strengths and limitations will help you make the right choice for your specific application.

This guide breaks down the key differences between carbide and HSS end mills, helping machinists, workshop managers, and engineers select the optimal tool for their work.

Quick Answer: Which End Mill Should You Choose?

What Is A Carbide End Mill?

Carbide end mills are cutting tools made from tungsten carbide particles bonded together with cobalt. The result is an extremely hard, heat-resistant material that maintains its cutting edge at high temperatures and speeds. Carbide is significantly harder than HSS and can withstand much greater thermal stress.

Carbide end mills are the standard choice in modern CNC machining environments where speed and consistency are priorities.

Advantages Of Carbide End Mills

• Higher cutting speeds: Carbide can run 4–10 times faster than HSS, reducing cycle times significantly
• Extended tool life: Carbide tools last much longer, reducing tool changes and downtime
• Superior heat resistance: Maintains hardness at temperatures where HSS begins to soften
• Better surface finish: Produces finer finishes at high speeds, reducing secondary finishing work
• Ideal for production runs: Cost-effective when amortised across high-volume jobs
• Consistent performance: Delivers repeatable results across long production batches

Disadvantages Of Carbide End Mills

• Higher initial cost: Carbide tools are 3–5 times more expensive than HSS equivalents
• Brittleness: More prone to chipping or breaking under interrupted cuts or vibration
• Requires rigid setup: Demands tight tolerances, quality spindles, and stable machine geometry
• Less forgiving: Requires precise feeds and speeds; mistakes can damage the tool quickly
• Overkill for small jobs: Not economical for one-off or low-volume work

What Is A HSS End Mill?

High-speed steel (HSS) is an iron-based alloy containing tungsten, molybdenum, chromium, and vanadium. It was the industry standard for decades and remains widely used in manual mills, older CNC machines, and job shops. HSS is tougher and more forgiving than carbide, making it ideal for less rigid setups.

Advantages Of HSS End Mills

• Lower cost: Significantly cheaper than carbide, making it budget-friendly for small shops
• Toughness: Resists chipping and breaking under interrupted cuts and vibration
• Forgiving: More tolerant of imprecise feeds, speeds, and machine runout
• Versatility: Works well on manual mills, older CNC machines, and less rigid setups
• Easy to sharpen: Can be re-sharpened in-house with basic grinding equipment
• Ideal for prototyping: Cost-effective for one-off jobs and low-volume work

Disadvantages Of HSS End Mills

• Slower cutting speeds: Typically limited to 50–150 m/min, extending cycle times
• Shorter tool life: Dulls faster, requiring more frequent tool changes
• Lower heat resistance: Loses hardness above 600°C, limiting speed potential
• Poorer surface finish: Produces rougher finishes, often requiring secondary finishing
• Less consistent: Performance varies more across production runs
• Uneconomical for high-volume work: Tool change frequency increases labour costs

Carbide vs HSS Comparison Table

Cutting Speed Comparison

Cutting speed is where carbide truly excels. A typical carbide end mill can run at 300–500 m/min on aluminium, while HSS is limited to 80–120 m/min on the same material. This speed advantage translates directly to shorter cycle times and higher throughput.

For steel, carbide can achieve 150–300 m/min compared to HSS at 40–80 m/min. The speed difference is even more dramatic on harder materials like stainless steel and cast iron.

However, speed alone doesn't determine tool choice. Your machine's rigidity, spindle quality, and coolant system must support high-speed carbide machining. Running carbide at HSS speeds wastes the tool's potential and increases costs.

Tool Life Comparison

Carbide end mills typically last 10–20 times longer than HSS tools under equivalent conditions. A carbide tool might complete 1000 hours of cutting before dulling, while an HSS tool might manage 100 hours.

This extended life reduces tool change frequency, minimising downtime and labour costs in production environments. For job shops and manual operations, however, the lower initial cost of HSS often outweighs the longer life of carbide.

Material Suitability Comparison

Aluminium: Both carbide and HSS work well. Carbide is faster and produces better finishes; HSS is more forgiving on manual mills.

Steel: Carbide excels at high speeds. HSS is suitable for slower manual operations and interrupted cuts.

Stainless Steel: Carbide is strongly preferred due to heat generation. HSS can work but requires careful speed control and coolant.

Cast Iron: Both are suitable. Carbide handles high speeds; HSS is more forgiving on older machines.

Composites and Plastics: HSS often preferred to avoid chipping. Carbide works but requires precise feeds and speeds.

Which End Mill Should You Use?

Carbide For CNC Machining

Choose carbide if you operate modern CNC machines with rigid spindles, tight tolerances, and consistent feeds and speeds. Carbide is ideal for:

• Production runs of 100+ parts
• High-speed finishing operations
• Materials requiring tight tolerances
• Operations where surface finish is critical
• Long-term cost reduction through extended tool life

HSS For Manual Milling Machines

Choose HSS if you operate manual mills, older CNC machines, or less rigid setups. HSS is ideal for:

• One-off and low-volume jobs
• Prototyping and development work
• Interrupted cuts and unstable setups
• Budget-conscious operations
• Work requiring tool re-sharpening in-house

Common Mistakes When Choosing End Mills

• Running carbide at HSS speeds: Wastes the tool's potential and increases costs without benefit
• Using carbide on rigid machines: Carbide's brittleness causes chipping on machines with runout or vibration
• Ignoring coolant requirements: Carbide demands proper coolant; HSS is more forgiving
• Choosing based on price alone: Consider total cost including tool life and cycle time
• Not matching tool to machine: A modern CNC deserves carbide; an old manual mill needs HSS
• Overlooking material compatibility: Some materials suit one tool type far better than the other

Recommended Products

True Tooling stocks a comprehensive range of both carbide and HSS end mills in standard and custom sizes. Our technical team can help you select the right tool for your specific application, material, and machine setup.

Conclusion

The choice between carbide and HSS end mills depends on your machine, application, volume, and budget. Carbide offers speed, consistency, and extended tool life—ideal for modern CNC production. HSS provides toughness, forgiveness, and affordability—perfect for manual mills and job shops.

Neither tool is universally superior; the best choice matches your specific workshop conditions and requirements. By understanding the strengths and limitations of each, you'll make smarter tooling decisions that improve efficiency and reduce costs.

Need help selecting the right end mill for your application? Contact the True Tooling team for expert tooling advice tailored to your workshop and materials.
