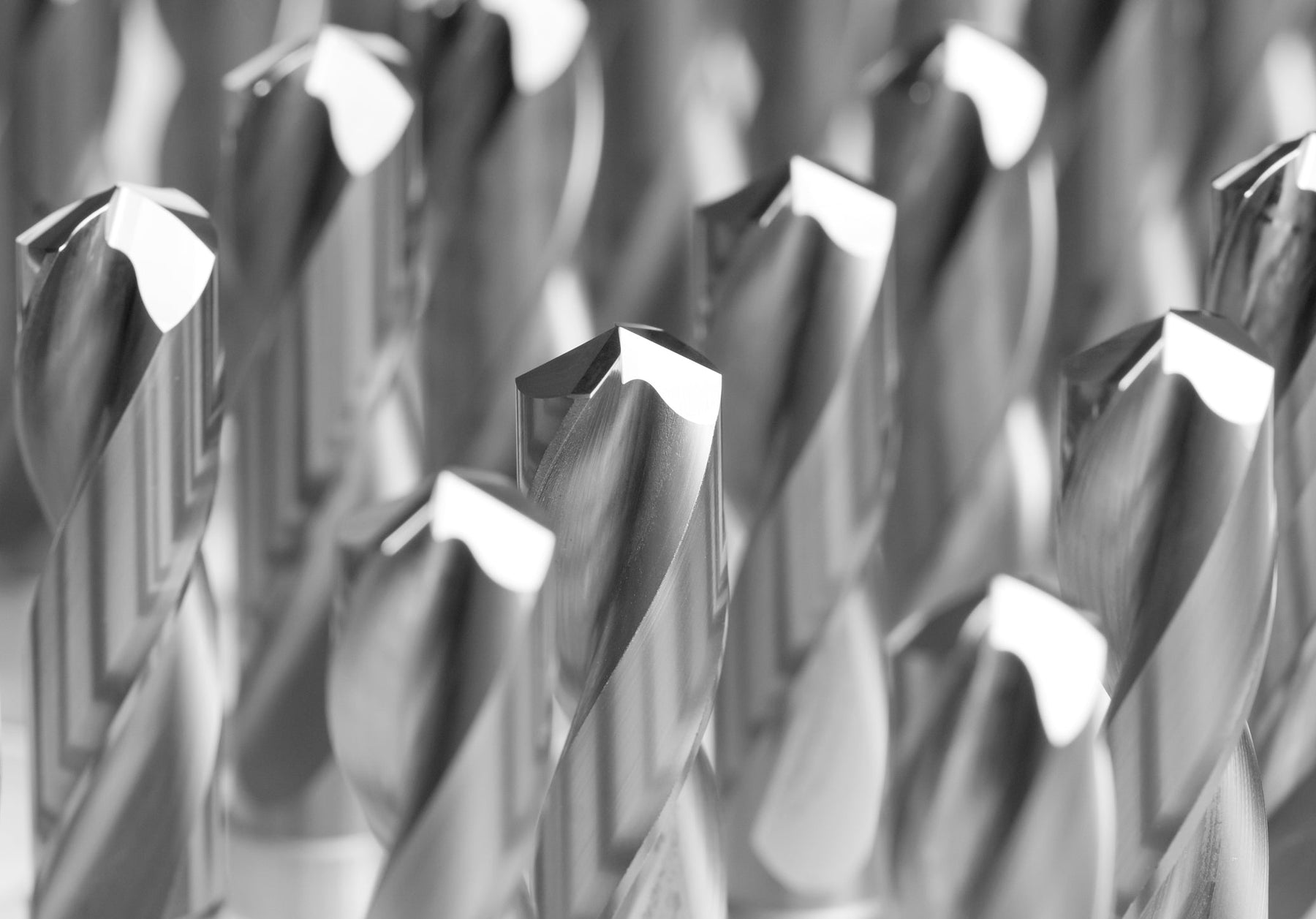

Best Drills for Stainless Steel

Why is stainless steel one of the most challenging materials to drill? Despite its widespread use in manufacturing, aerospace, medical devices and food processing, stainless steel presents unique obstacles that can frustrate even experienced machinists. Work hardening, excessive heat generation, poor thermal conductivity and material toughness combine to create conditions that dull standard drill bits quickly and compromise hole quality. The right drill selection, however, can transform your stainless steel drilling operations—reducing tool wear, improving productivity and delivering consistently accurate holes.

In this comprehensive guide, we'll explore the characteristics that make stainless steel difficult to drill, examine the best drill types and coatings for the job, and share practical workshop strategies to maximise tool life and performance.

Why Is Stainless Steel Difficult to Drill?

Understanding the material properties that make stainless steel challenging is the first step toward selecting the right tooling.

Work Hardening

Stainless steel exhibits significant work hardening during machining. When a drill bit applies pressure to the material, the surface layer becomes harder and more resistant to cutting. This hardening effect accelerates tool wear and can cause the drill to slip or chatter rather than cut cleanly. The problem intensifies if feed rates are too slow—the drill rubs rather than cuts, accelerating work hardening and dulling the cutting edge.

Heat Generation and Poor Thermal Conductivity

Stainless steel generates substantial heat during drilling because its low thermal conductivity traps heat at the cutting edge rather than dissipating it into the workpiece or chips. This concentrated heat weakens the drill's cutting edge, accelerates wear and can cause the drill to lose hardness. Without adequate coolant, temperatures at the cutting edge can exceed 1000°C, dramatically shortening tool life.

Material Toughness

Stainless steel is inherently tough and ductile. Unlike brittle materials that fracture cleanly, stainless steel resists cutting and tends to produce long, stringy chips that can wrap around the drill and cause breakage. This toughness demands drills with strong, well-designed cutting edges and robust chip evacuation geometry.

Practical Workshop Examples

Consider drilling 304 stainless steel—the most common austenitic grade. A standard HSS drill may produce only 10–15 holes before dulling noticeably, whereas a cobalt or coated drill can produce 50–100 holes under the same conditions. With 316 stainless steel, which contains molybdenum for increased corrosion resistance, the toughness increases further, demanding even more aggressive tooling and coolant strategies.

What Features Should a Stainless Steel Drill Have?

The best stainless steel drills share several critical design characteristics:

Strong Cutting Edges

Stainless steel drilling demands drills with robust, sharp cutting edges capable of withstanding high cutting forces and temperatures. Cobalt and carbide materials provide superior edge strength compared to standard HSS.

Split-Point Geometry

A split-point (or split-lip) design features a specially ground point that reduces the cutting force required to initiate drilling. This geometry minimises chatter, improves hole accuracy and reduces the tendency for the drill to walk across the workpiece surface—particularly important when drilling without a pilot hole.

Self-Centring Design

Drills with self-centring points start holes more accurately without requiring a centre punch, reducing setup time and improving first-hole accuracy.

Through-Coolant Capability

Drills designed for through-coolant delivery allow cutting fluid to be pumped directly through the drill to the cutting edge. This dramatically improves heat removal and chip evacuation, extending tool life and enabling higher cutting speeds.

High-Performance Coatings

Coatings such as TiN, TiCN, TiAlN and AlTiN reduce friction, improve heat resistance and extend tool life significantly compared to uncoated drills.

Best Types of Drill Bits for Stainless Steel

Different drill materials and designs suit different applications and production volumes. Understanding the strengths and limitations of each type helps you select the most cost-effective option for your needs.

HSS (High-Speed Steel) Drills

Standard HSS drills are the most affordable option but offer limited performance in stainless steel. They work adequately for occasional drilling in manual machines but dull quickly and require frequent replacement. HSS is best reserved for low-volume work or situations where tool cost is the primary concern.

Cobalt (HSS-E) Drills

Cobalt drills contain 5–8% cobalt, which significantly improves heat resistance and hardness compared to standard HSS. Cobalt drills can run at higher speeds, produce more holes before dulling and deliver better hole quality. They represent an excellent balance between cost and performance for most workshop applications.

Solid Carbide Drills

Carbide drills are the premium option, offering exceptional hardness, heat resistance and tool life. They enable much higher cutting speeds and are ideal for CNC machines, production runs and applications where hole quality and consistency are critical. The higher initial cost is offset by dramatically extended tool life and reduced downtime for tool changes.

Indexable Drills

Indexable drills feature replaceable cutting inserts, making them cost-effective for high-volume production. Once an insert dulls, you simply index to a fresh cutting edge or replace the insert. These drills are common in dedicated production environments but less practical for general workshop use.

Comparison: Drill Types for Stainless Steel

Drill Type	Advantages	Limitations	Best Applications
HSS	Low cost, widely available	Short tool life, lower speeds, poor hole quality	Occasional drilling, manual machines, low-volume work
Cobalt (HSS-E)	Good heat resistance, extended tool life, moderate cost	Lower speeds than carbide, higher cost than HSS	General workshop use, manual and CNC machines, medium-volume production
Solid Carbide	Exceptional tool life, high speeds, excellent hole quality	High initial cost, requires rigid setup	CNC production, high-volume runs, precision applications
Indexable	Cost-effective per hole, quick insert changes	Requires dedicated toolholders, less flexible	High-volume production, dedicated CNC operations

Cobalt vs Carbide Drills for Stainless Steel

The choice between cobalt and carbide drills depends on your production volume, machine capability and budget. Both outperform standard HSS significantly, but they excel in different scenarios.

Tool Life

Carbide drills typically produce 5–10 times more holes than cobalt drills before dulling. In high-volume production, this extended life dramatically reduces tool-change downtime and labour costs. Cobalt drills, however, still offer substantial improvements over HSS and represent excellent value for moderate-volume work.

Speed Capability

Carbide drills can run at 2–3 times the speeds of cobalt drills. In CNC machines with rigid spindles, this speed advantage translates to faster cycle times and higher productivity. Manual machines and older equipment may not benefit as much from carbide's speed capability.

Hole Quality

Both cobalt and carbide drills produce superior hole quality compared to HSS. Carbide's superior hardness and thermal stability often result in tighter tolerances and better surface finishes, particularly in production runs where consistency is critical.

Cost Considerations

A cobalt drill typically costs 2–3 times more than an equivalent HSS drill but produces 5–10 times more holes. A carbide drill costs 5–10 times more than HSS but produces 50–100 times more holes. The cost per hole often favours carbide in high-volume scenarios, whilst cobalt offers better value for general workshop use.

When to Choose Cobalt

Cobalt drills are ideal for job shops, general machining, manual machines and applications where tool flexibility and moderate production volumes are priorities. They're also suitable when machine rigidity is limited, as they're more forgiving than carbide.

When to Choose Carbide

Carbide drills excel in CNC production environments, high-volume runs, precision applications and situations where cycle time and consistency are critical. They're also preferred when drilling deep holes or when through-coolant capability is available.

Best Drill Coatings for Stainless Steel

Coatings are applied to drill surfaces to reduce friction, improve heat resistance and extend tool life. Different coatings offer different benefits and suit different applications.

TiN (Titanium Nitride)

TiN is the most common coating, offering good heat resistance and wear protection. It provides a noticeable improvement over uncoated drills and is suitable for general stainless steel drilling. TiN-coated drills typically cost slightly more than uncoated drills but produce significantly more holes.

TiCN (Titanium Carbonitride)

TiCN offers improved hardness and wear resistance compared to TiN, making it suitable for more demanding applications. It provides better performance in stainless steel than TiN and is a popular choice for cobalt drills.

TiAlN (Titanium Aluminium Nitride)

TiAlN provides exceptional heat resistance, making it ideal for high-speed applications and materials that generate significant heat. It's particularly effective for carbide drills used in production environments.

AlTiN (Aluminium Titanium Nitride)

AlTiN is a premium coating offering superior heat resistance and wear protection. It's designed for the most demanding applications, including high-speed carbide drilling in stainless steel and other difficult-to-machine materials.

Coating Comparison for Stainless Steel

Coating	Heat Resistance	Wear Resistance	Best Applications
TiN	Good	Good	General stainless steel drilling, manual machines
TiCN	Very Good	Very Good	Cobalt drills, moderate-speed CNC work
TiAlN	Excellent	Excellent	High-speed carbide drilling, production runs
AlTiN	Outstanding	Outstanding	Extreme-speed carbide drilling, demanding applications

Best Drills for 304 Stainless Steel

304 stainless steel is the most widely used austenitic stainless grade, found in kitchen equipment, architectural applications, chemical processing and countless industrial components. Its combination of corrosion resistance and workability makes it popular, but it presents specific drilling challenges.

Work Hardening Challenges

304 stainless steel work hardens aggressively during drilling. If feed rates are insufficient, the drill rubs rather than cuts, accelerating work hardening and tool wear. This is why maintaining adequate feed pressure is critical—a seemingly counterintuitive approach for machinists accustomed to softer materials.

Recommended Drill Geometries

For 304 stainless steel, select drills with split-point geometry and positive rake angles designed specifically for stainless steel. Cobalt drills with TiN or TiCN coatings offer excellent performance for general workshop use. For CNC production, solid carbide drills with TiAlN coating provide superior tool life and consistency.

Coating Recommendations

TiN-coated cobalt drills are a cost-effective choice for 304 stainless steel. For higher production volumes or CNC work, TiCN-coated cobalt or TiAlN-coated carbide drills deliver better performance and longer tool life.

Cutting Parameter Considerations

304 stainless steel requires moderate cutting speeds (typically 20–40 m/min for cobalt, 60–100 m/min for carbide) and adequate feed rates. Flood coolant or through-tool coolant is essential to manage heat and improve chip evacuation.

Best Drills for 316 Stainless Steel

316 stainless steel contains molybdenum, which increases corrosion resistance and toughness compared to 304. This added toughness makes 316 more challenging to drill and demands more aggressive tooling and coolant strategies.

Increased Toughness and Heat Generation

316 stainless steel generates more heat during drilling than 304 and resists cutting more aggressively. Without adequate coolant, tool life can be significantly shorter. The material's toughness also produces longer, more stringy chips that can wrap around the drill and cause breakage.

Drill Selection Recommendations

For 316 stainless steel, cobalt drills with TiCN coating or solid carbide drills with TiAlN coating are recommended. The improved heat resistance of these combinations is essential for managing the additional heat generated by 316's toughness.

Coolant Requirements

Through-tool coolant delivery is highly recommended for 316 stainless steel drilling. If flood coolant is your only option, ensure generous coolant flow and consider using a cutting oil formulated specifically for stainless steel rather than general-purpose coolant.

304 vs 316 Stainless Steel Drilling Considerations

Consideration	304 Stainless Steel	316 Stainless Steel
Toughness	Moderate	High (molybdenum addition)
Heat Generation	Moderate	High
Recommended Drill Type	Cobalt (TiN/TiCN) or Carbide (TiAlN)	Cobalt (TiCN) or Carbide (TiAlN)
Coolant Requirement	Flood coolant adequate	Through-tool coolant recommended
Typical Speed (Cobalt)	25–40 m/min	15–30 m/min
Typical Speed (Carbide)	70–100 m/min	50–80 m/min

Recommended Speeds and Feeds for Stainless Steel Drills

Cutting parameters should always be adjusted according to machine rigidity, coolant delivery, hole depth and tooling manufacturer recommendations. The following table provides general guidance for common scenarios:

Drill Type	Material	Speed (m/min)	Feed (mm/rev)	Coolant
HSS	304 Stainless	15–20	0.10–0.15	Flood coolant
Cobalt (TiN)	304 Stainless	25–40	0.15–0.25	Flood coolant
Cobalt (TiCN)	316 Stainless	20–30	0.15–0.20	Flood or through-tool
Carbide (TiAlN)	304 Stainless	70–100	0.20–0.30	Through-tool preferred
Carbide (TiAlN)	316 Stainless	50–80	0.15–0.25	Through-tool preferred

Note: These are general guidelines. Always consult your drill manufacturer's recommendations and adjust parameters based on your specific machine, workpiece thickness, hole depth and coolant system.

Coolant and Lubrication for Stainless Steel Drilling

Coolant is not optional when drilling stainless steel—it's essential. The right coolant strategy can double or triple tool life and dramatically improve hole quality.

Flood Coolant

Flood coolant systems deliver coolant continuously to the drilling area. This approach works well for manual machines and general workshop use. Ensure adequate coolant flow and use a cutting fluid formulated for stainless steel rather than general-purpose coolant. Stainless-specific fluids contain additives that improve lubricity and heat transfer.

Through-Tool Coolant

Through-tool (or through-spindle) coolant delivery pumps coolant directly through the drill to the cutting edge. This approach is far more effective than flood coolant because it delivers coolant precisely where it's needed and improves chip evacuation. Through-tool capability is standard on modern CNC machines and dramatically extends tool life in stainless steel.

Cutting Oils

Dedicated cutting oils for stainless steel offer superior lubricity compared to water-based coolants. They're particularly effective in manual machines and situations where through-tool coolant isn't available. Cutting oils are more expensive than coolant but can significantly extend tool life.

MQL (Minimum Quantity Lubrication)

MQL systems deliver a fine mist of oil and compressed air to the cutting edge. They're environmentally friendly and reduce coolant disposal costs, but they're less effective than flood or through-tool coolant for stainless steel drilling. MQL works best with carbide drills at high speeds.

Why Coolant Is Critical

Coolant serves three essential functions when drilling stainless steel: it removes heat from the cutting edge, improves chip evacuation and reduces friction. Without adequate coolant, the drill's cutting edge reaches temperatures that cause rapid wear and potential tool failure. Stainless steel's poor thermal conductivity makes this heat management even more critical than with other materials.

Common Mistakes When Drilling Stainless Steel

Understanding common errors helps you avoid them and optimise your drilling operations.

Running Too Slowly

Many machinists instinctively reduce speed when drilling stainless steel, but this is counterproductive. Slow speeds cause the drill to rub rather than cut, accelerating work hardening and tool wear. Maintain adequate speeds for your drill type—cobalt drills typically need 25–40 m/min for 304 stainless, not 10–15 m/min.

Insufficient Feed Pressure

Light feed rates compound the rubbing problem. The drill must cut aggressively enough to produce chips rather than rubbing the surface. Increase feed rate until you see continuous chips being produced. This counterintuitive approach dramatically improves tool life.

Allowing Drills to Rub

If your drill is producing fine dust rather than chips, it's rubbing. Stop immediately, increase speed and feed rate, and resume drilling. Continued rubbing will dull the drill rapidly and produce poor-quality holes.

Poor Coolant Delivery

Inadequate coolant flow or delivery is a common cause of premature tool failure. Ensure your coolant system delivers sufficient flow directly to the drilling area. If using flood coolant, position the nozzle to direct coolant into the hole. If using through-tool coolant, verify that the system is functioning correctly.

Using Worn Tooling

Worn drills produce poor holes and accelerate further wear. Replace drills when they begin to dull noticeably. A sharp drill produces continuous chips and clean holes; a dull drill produces dust and rough holes.

How to Increase Drill Life in Stainless Steel

Maximising tool life reduces costs and improves productivity. These practical strategies will help you extend drill life significantly:

Use Rigid Setups

Machine chatter and vibration accelerate tool wear. Ensure your workpiece is clamped securely, use short drill extensions where possible and minimise overhang. A rigid setup allows you to maintain consistent cutting parameters and produces better hole quality.

Maintain Feed Rates

Consistent, adequate feed rates prevent rubbing and work hardening. Avoid the temptation to reduce feed rate—this accelerates tool wear. Maintain the feed rate recommended for your drill type and material.

Improve Coolant Delivery

Upgrade to through-tool coolant if your machine supports it. If not, ensure flood coolant is directed precisely into the hole and delivered in adequate quantity. Consider upgrading to a cutting oil formulated for stainless steel.

Select Proper Coatings

Coated drills (TiN, TiCN, TiAlN) significantly outperform uncoated drills in stainless steel. The coating cost is quickly recovered through extended tool life.

Monitor Wear Patterns

Inspect drills regularly for wear. Flank wear (wear on the drill's outer edge) is normal, but excessive wear indicates that cutting parameters need adjustment or that the drill should be replaced. Chipping or breakage suggests inadequate feed rate or coolant delivery.

7 Ways to Extend Drill Life in Stainless Steel

Infographic Summary:

1. Use Adequate Cutting Speed – Maintain 25–40 m/min for cobalt, 70–100 m/min for carbide. Slow speeds cause rubbing and accelerate wear.

2. Maintain Aggressive Feed Rates – Feed hard enough to produce continuous chips, not dust. This prevents work hardening and extends tool life.

3. Deliver Coolant Effectively – Use through-tool coolant where possible. If using flood coolant, ensure adequate flow directed into the hole.

4. Select Coated Drills – TiN, TiCN and TiAlN coatings significantly extend tool life compared to uncoated drills.

5. Ensure Rigid Machine Setup – Minimise chatter and vibration by securing the workpiece firmly and using short drill extensions.

6. Use Split-Point Geometry – Split-point drills reduce cutting force, improve accuracy and extend tool life compared to standard drills.

7. Replace Drills When Dull – A sharp drill produces better holes and lasts longer overall. Replace drills before they become severely worn.

Frequently Asked Questions

What is the best drill bit for stainless steel?

The best choice depends on your application. For general workshop use, a cobalt drill with TiN or TiCN coating offers excellent performance and value. For CNC production, a solid carbide drill with TiAlN coating delivers superior tool life and consistency. Always select a drill with split-point geometry designed specifically for stainless steel.

Are cobalt drill bits good for stainless steel?

Yes, cobalt drills are excellent for stainless steel. They offer significantly better performance than standard HSS drills, with extended tool life and the ability to run at higher speeds. Cobalt drills represent an ideal balance between cost and performance for most workshop applications.

Are carbide drills worth the extra cost?

For high-volume production or CNC work, carbide drills are absolutely worth the investment. They produce 5–10 times more holes than cobalt drills and enable much higher cutting speeds, reducing cycle time. For occasional drilling or manual machines, cobalt drills may offer better value.

Why does stainless steel work harden during drilling?

Stainless steel's austenitic crystal structure causes it to harden when subjected to mechanical stress. As the drill applies pressure, the surface layer becomes harder and more resistant to cutting. This work hardening accelerates tool wear and can cause the drill to slip or chatter. Maintaining adequate cutting speed and feed rate prevents rubbing and minimises work hardening.

Should coolant always be used when drilling stainless steel?

Yes, coolant is essential when drilling stainless steel. It removes heat from the cutting edge, improves chip evacuation and reduces friction. Without adequate coolant, tool life is dramatically shortened and hole quality suffers. Use a cutting fluid formulated specifically for stainless steel for best results.

Key Takeaways

• Stainless steel is challenging to drill due to work hardening, heat generation, poor thermal conductivity and material toughness. Understanding these characteristics helps you select appropriate tooling and cutting parameters.
• Cobalt and carbide drills significantly outperform standard HSS in stainless steel. Cobalt offers excellent value for general workshop use; carbide excels in high-volume production and CNC applications.
• Coatings are essential. TiN, TiCN, TiAlN and AlTiN coatings extend tool life, improve heat resistance and enable higher cutting speeds. The coating cost is quickly recovered through extended tool life.
• Cutting parameters matter. Maintain adequate speed and feed rate to prevent rubbing and work hardening. Slow speeds and light feeds accelerate tool wear—counterintuitive but essential for stainless steel.
• Coolant is non-negotiable. Flood coolant, through-tool coolant or cutting oil all improve tool life significantly. Through-tool coolant is most effective but requires compatible equipment.
• 304 and 316 stainless steel have different characteristics. 316's added toughness requires more aggressive tooling and coolant strategies. Adjust your drill selection and parameters accordingly.
• Tool life optimisation requires attention to setup, parameters and coolant delivery. A rigid machine setup, adequate cutting speed and feed rate, and effective coolant delivery can double or triple tool life.

Conclusion

Drilling stainless steel successfully requires understanding the material's unique characteristics and selecting tooling designed specifically for the challenge. Cobalt and carbide drills with appropriate coatings, combined with adequate cutting speed, feed rate and coolant delivery, will transform your stainless steel drilling operations.

Whether you're a machinist working with occasional stainless steel components, a CNC operator running production batches, or a workshop owner managing diverse drilling tasks, the right drill selection and cutting strategy will improve hole quality, extend tool life and reduce costs. Start by upgrading from standard HSS to coated cobalt drills if you haven't already—the improvement in performance and tool life will be immediately apparent. As your production volume increases, consider investing in solid carbide drills and through-tool coolant systems for even greater productivity and consistency.

The investment in quality tooling and proper technique pays dividends through improved efficiency, better results and reduced downtime. Your stainless steel drilling operations will never be the same.
