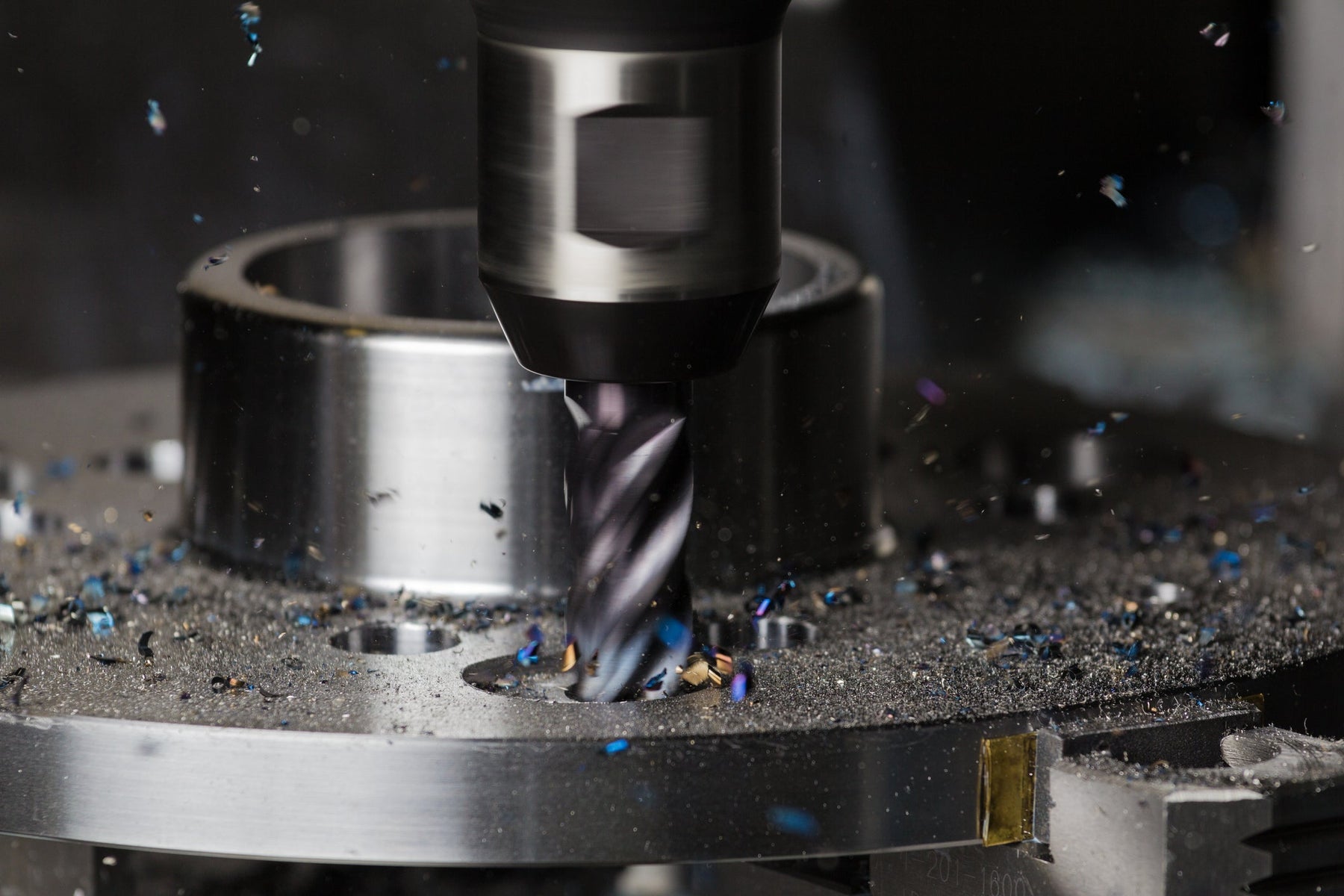

Ball Nose vs Square End Mills: Key Differences Explained

Why Tool Geometry Matters in CNC Machining

The difference between a square end mill and a ball nose end mill goes far beyond aesthetics. Your choice of cutting tool directly impacts surface finish quality, material removal rates, tool life, and the final accuracy of your part. Understanding when to use each geometry is fundamental to efficient CNC programming and machining.

CNC work falls into two broad categories: 2D operations (pocketing, slotting, facing) and 3D contouring (mold finishing, sculptured surfaces, complex curves). Each tool geometry excels in one domain. Choosing the wrong tool wastes time, dulls edges prematurely, and produces poor surface finishes.

What is a Square End Mill?

A square end mill features a flat cutting edge at the bottom, with sharp 90-degree internal corners where the flutes meet the base. This geometry is optimized for precision and material removal in 2D operations.

Key characteristics:

• Flat bottom cutting surface for clean, sharp edges
• Sharp internal corners ideal for pockets and slots
• High material removal rates in roughing operations
• Excellent for facing and creating flat surfaces
• Carbide construction standard for production work
• Stronger tool geometry under heavy axial loads

Square end mills are the workhorse of 2D CNC machining. They excel when you need precision walls, flat bottoms, and defined edges. The sharp corners allow you to machine tight internal radii and create clean transitions between surfaces.

What is a Ball Nose End Mill?

A ball nose end mill has a rounded, hemispherical cutting tip. This geometry is purpose-built for 3D contouring, surface finishing, and applications where smooth, blended curves are required.

Key characteristics:

• Hemispherical cutting tip for smooth, continuous curves
• Ideal for 3D sculptured surfaces and mold finishing
• Produces superior surface finish on contoured parts
• No sharp internal corners—blends surfaces seamlessly
• Carbide or high-speed steel options available
• Requires careful step-over planning to avoid scalloping

Ball nose mills are essential for any shop running 3D CAM programs. The rounded geometry follows complex tool paths and produces the smooth, professional finishes expected in mold work, die finishing, and sculptured components.

Ball Nose vs Square End Mill: Comparison Table

When to Use a Square End Mill

Pocketing Operations: Square end mills are ideal for cutting rectangular or complex 2D pockets. The flat bottom creates clean walls and a defined floor.

Slotting: Cut precise slots with sharp, clean edges. The geometry prevents chatter and produces excellent dimensional accuracy.

Facing Operations: Create flat, parallel surfaces quickly. Square end mills remove material efficiently and produce superior surface finish on flat faces.

Precision Walls: When your design requires sharp internal corners or tight radii, a square end mill is the only choice. Ball nose tools cannot achieve sharp corners.

Roughing Passes: Use square end mills for aggressive material removal before finishing. The stronger geometry handles higher feeds and depths of cut.

When to Use a Ball Nose End Mill

3D Sculptured Surfaces: Ball nose mills follow complex 3D tool paths and produce smooth, continuous surfaces without faceting.

Mold and Die Finishing: Achieve the professional, blended surface finish required for injection molds, stamping dies, and precision components.

Curved Contours: Any application requiring smooth curves—from automotive panels to artistic components—demands a ball nose tool.

Finishing Passes on 3D Models: After roughing with a larger square end mill, use a ball nose for the final finishing pass to blend surfaces and improve finish quality.

Avoiding Sharp Corners: When your design intentionally avoids sharp internal corners (for strength, aesthetics, or manufacturability), a ball nose is the natural choice.

Common Mistakes to Avoid

Using Square End Mills for Complex 3D Surfaces: Attempting to machine 3D contours with a square end mill produces a faceted, stepped appearance. The flat geometry cannot follow curved tool paths smoothly. Always use a ball nose for 3D work.

Using Ball Nose Mills for Sharp Internal Corners: A ball nose tool cannot cut a sharp 90-degree corner—the minimum corner radius equals the tool radius. If your design requires sharp corners, you must use a square end mill or accept a larger radius.

Poor Step-Over Selection: With ball nose mills, step-over distance directly affects surface finish. Too large a step-over creates visible scallops; too small wastes time. Calculate step-over based on desired finish and tool diameter.

Ignoring Tool Deflection: Ball nose tools are more prone to deflection under heavy loads. Use conservative feeds and depths of cut, especially in finishing passes where accuracy matters most.

Mixing Tool Strategies Inefficiently: Plan your toolpath to minimize tool changes. Rough with a square end mill, then finish with a ball nose in a single setup when possible.

Pro Tips for CNC Machinists

Combine Both Tools in Your Workflow: The most efficient approach uses a square end mill for roughing and 2D operations, then switches to a ball nose for 3D finishing. This maximizes material removal speed while achieving excellent surface finish.

Optimize Step-Over for Ball Nose Tools: Step-over distance determines scallop height. Use the formula: step-over = √(2 × scallop height × tool radius). For a 0.1 mm scallop with a 6 mm ball nose, step-over ≈ 1.1 mm.

Use Finishing Feeds and Speeds: Ball nose tools perform best with moderate feeds and speeds. Aggressive parameters cause chatter and premature flute wear. Consult your tool manufacturer's recommendations for your specific material.

Plan Tool Paths Strategically: CAM software can optimize tool paths to minimize scalloping and tool changes. Review generated paths before running—small adjustments to step-over or step-down can dramatically improve results.

Consider Tool Diameter Carefully: Larger ball nose tools remove material faster but produce larger scallops at the same step-over. Smaller tools produce finer finishes but require more passes. Balance speed and finish quality for your application.

Maintain Sharp Tools: Both geometries perform best with sharp, well-maintained edges. Dull tools cause chatter, poor finish, and excessive heat. Replace tools before they wear excessively.

Conclusion

Square end mills and ball nose end mills serve fundamentally different purposes in CNC machining. Square end mills excel at 2D operations, precision pocketing, and sharp internal corners. Ball nose mills are essential for 3D contouring, mold finishing, and smooth sculptured surfaces.

The key to efficient machining is understanding your part geometry and selecting the right tool for each operation. Use square end mills for roughing and 2D work, then switch to a ball nose for 3D finishing. This two-tool strategy maximizes material removal speed while delivering the professional surface finish your customers expect.

Master both geometries, optimize your step-over and feed rates, and your CNC work will improve dramatically. The difference between a mediocre finish and a professional result often comes down to tool selection and strategy.
